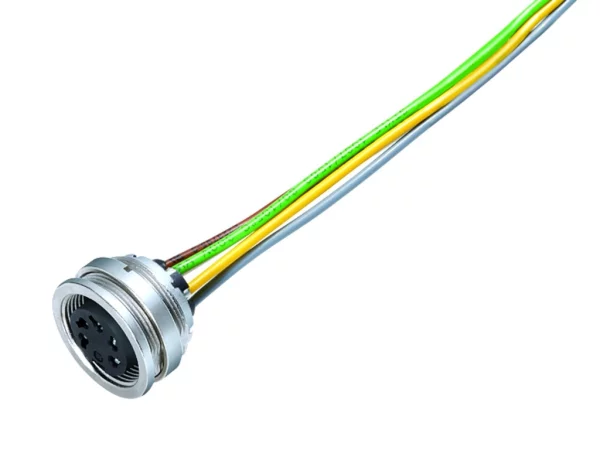

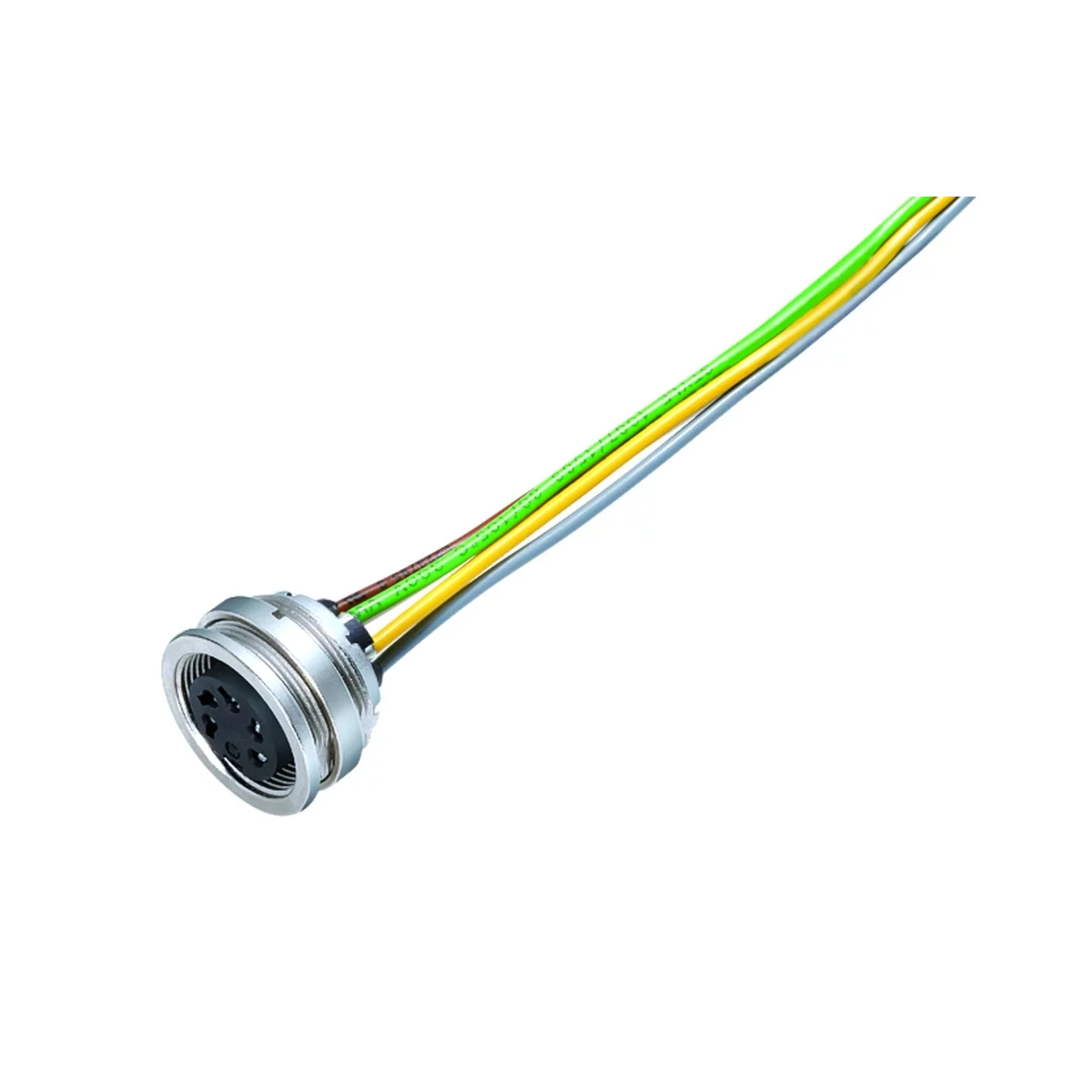

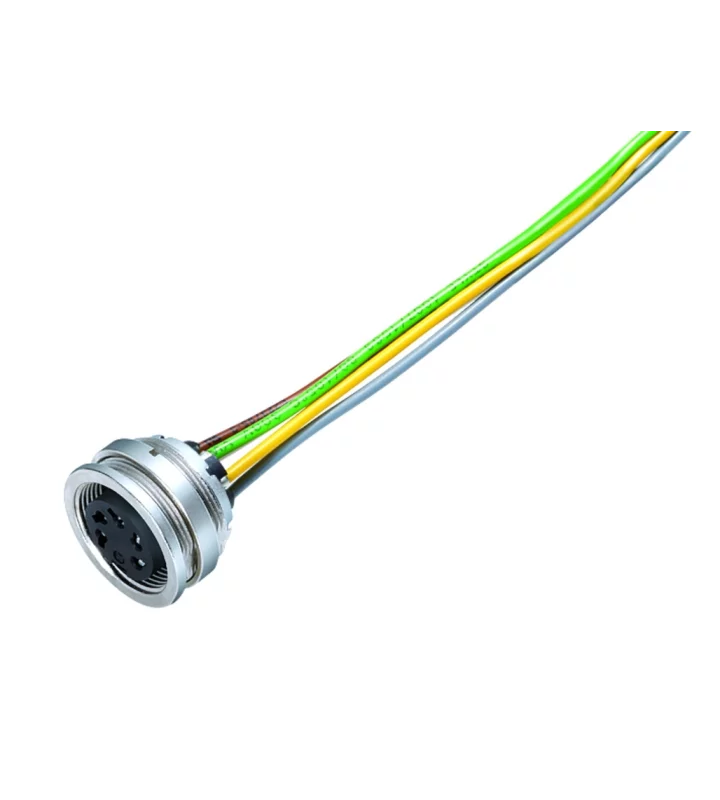

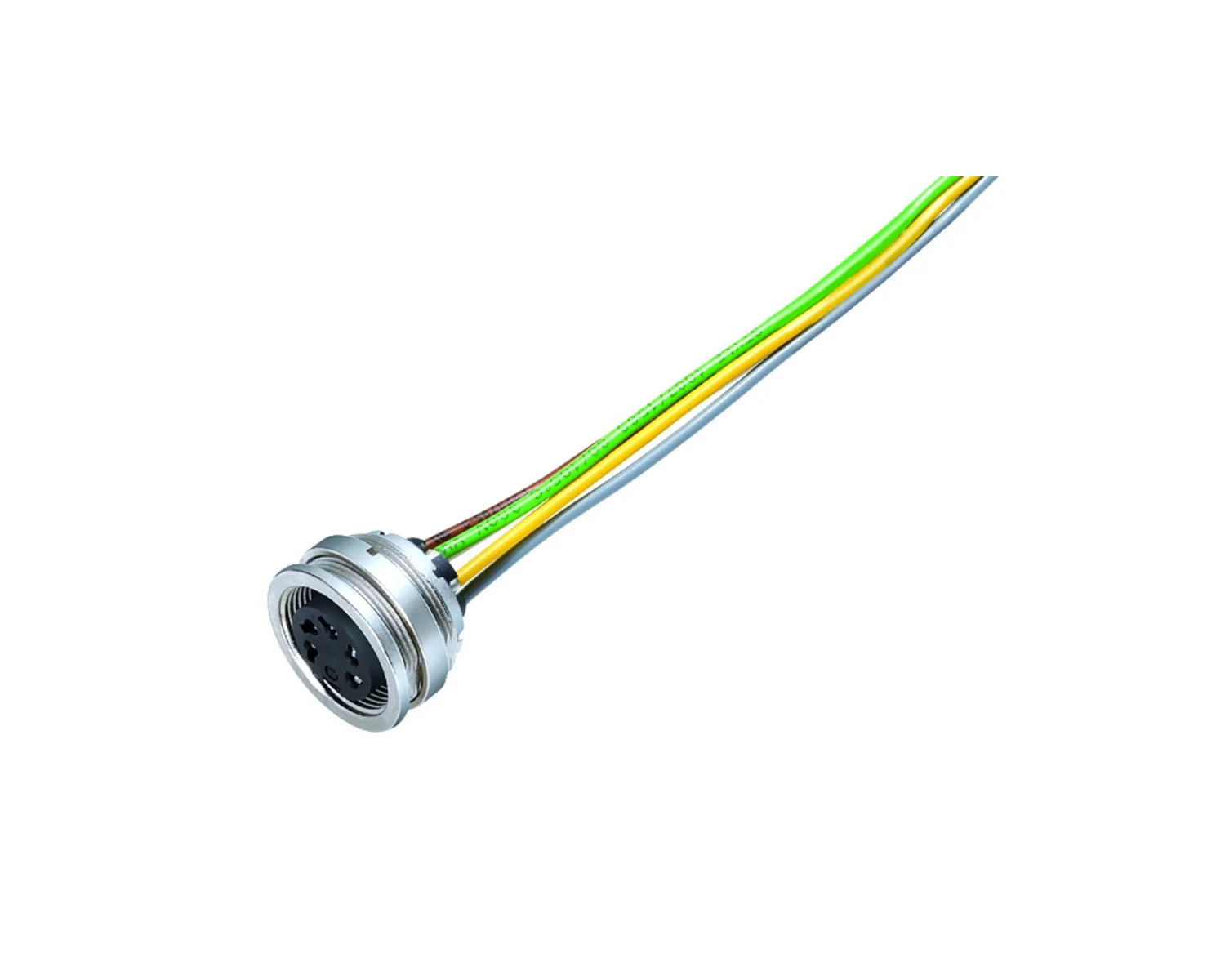

Female panel mount connector
with single wires
09 0474 702 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.

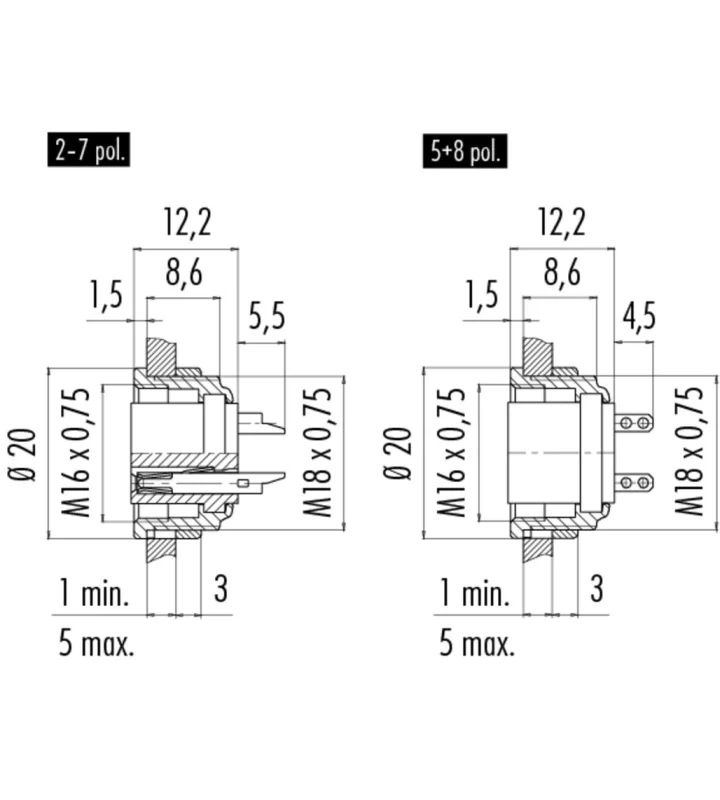

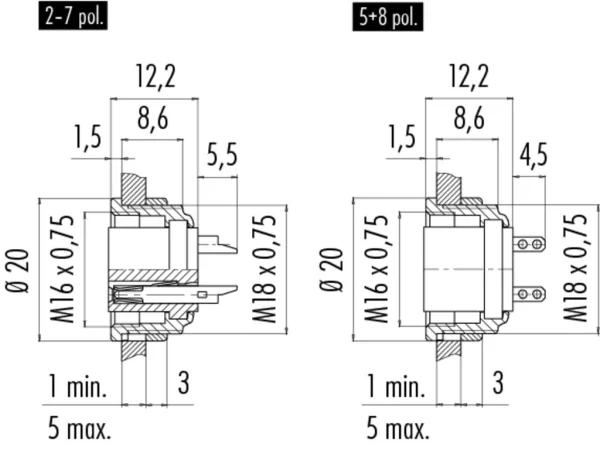

Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 581-680-682 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Strands |
| Upper temperature | +85 °C |
| Lower temperature | -30 °C |
| Protection degree | IP40 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 20 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 100 V |
| Impuls voltage | 1200 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | I |
Material
| Material group | II |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of contact | CuSn (Bronze) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|
| 09 0312 702 04 | 4 | 300 V | 1500 V | >200 - ≤400 V |
| 09 0316 702 05 | 5 | 300 V | 1500 V | >200 - ≤400 V |
| 09 0324 702 06 | 6 | 300 V | 1500 V | >200 - ≤400 V |
| 09 0328 702 07 | 7 | 100 V | 1200 V | ≤200 V |
