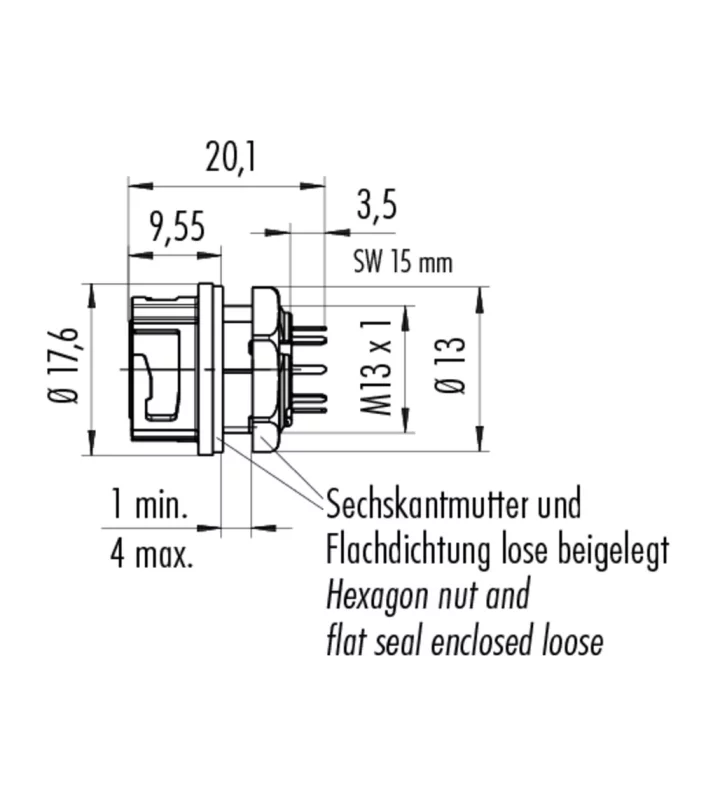

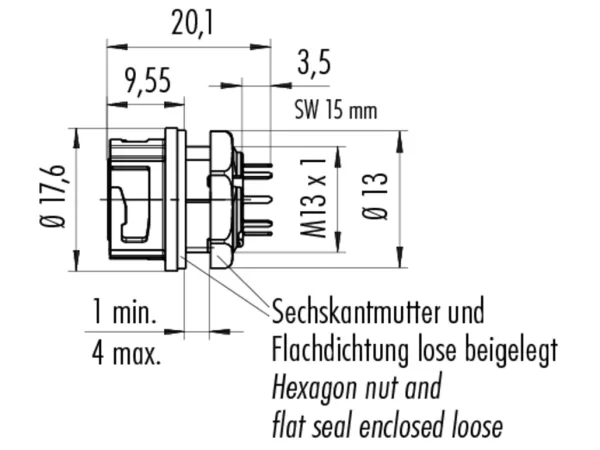

Female panel mount connector
Dip solder
09 0774 490 08
Specificaties
General Characteristics
| Series | Miniature |
|---|---|
| Subseries | NCC 770 Medical |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Bayonet |
| Connector Diameter | 17.6 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 175 V |
| Impuls voltage | 1750 V |
| Max. contact resistance | 15 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | PA (UL 94 H-B) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
