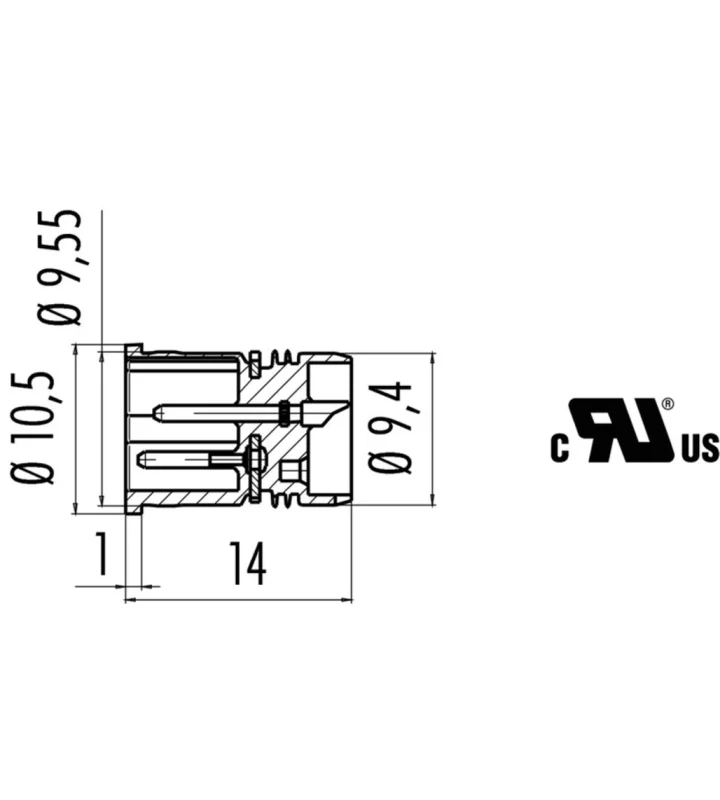

Male receptacle
with ground ring, solder, contact surface gold
UL-approval
09 2431 09 03
Specificaties
General Characteristics
| Screw size | M12-US |
|---|---|
| Series | Sensor |
| Subseries | 815 |
| Gender | Male |
| Number of contacts | 3 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-US) |
| Mating cycles | >100 |
| Connector Diameter | 10.5 mm |
| Cable outlet | 4-6 mm |
| Wire-section | 0.5 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
