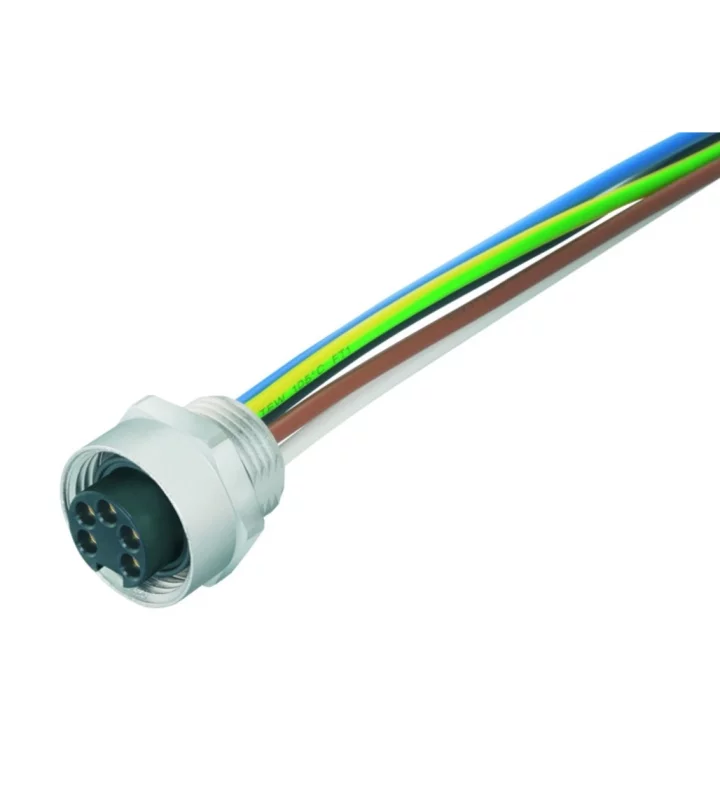

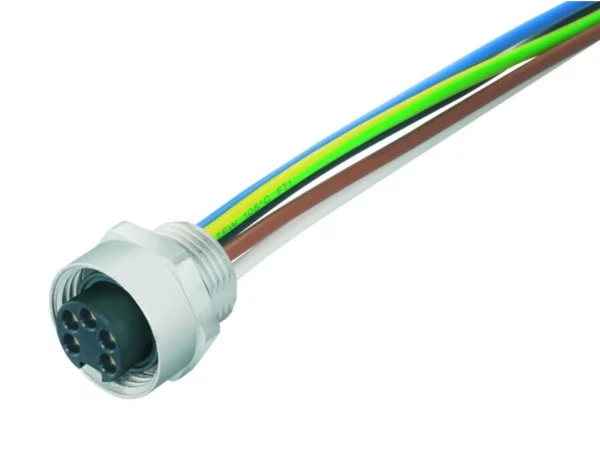

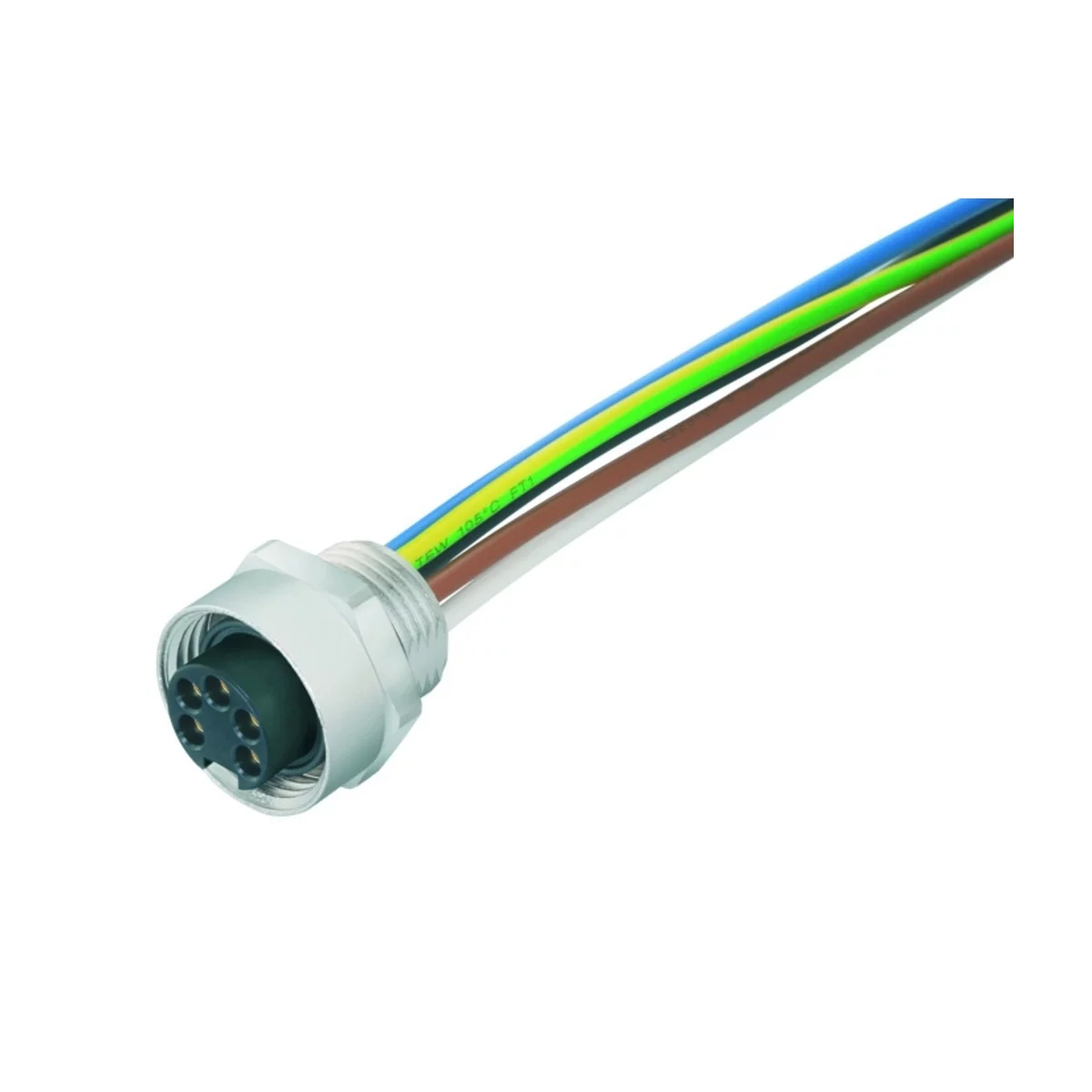

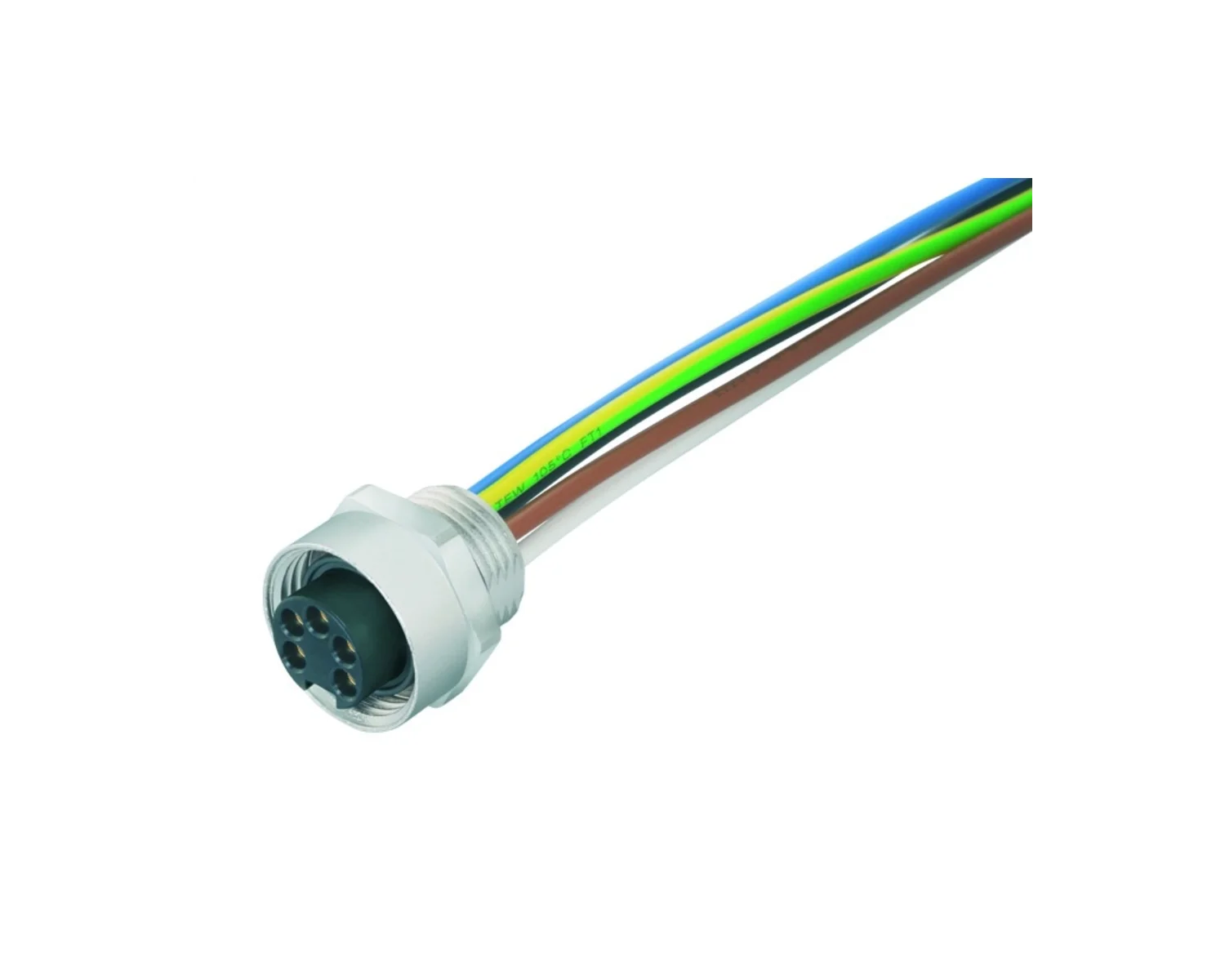

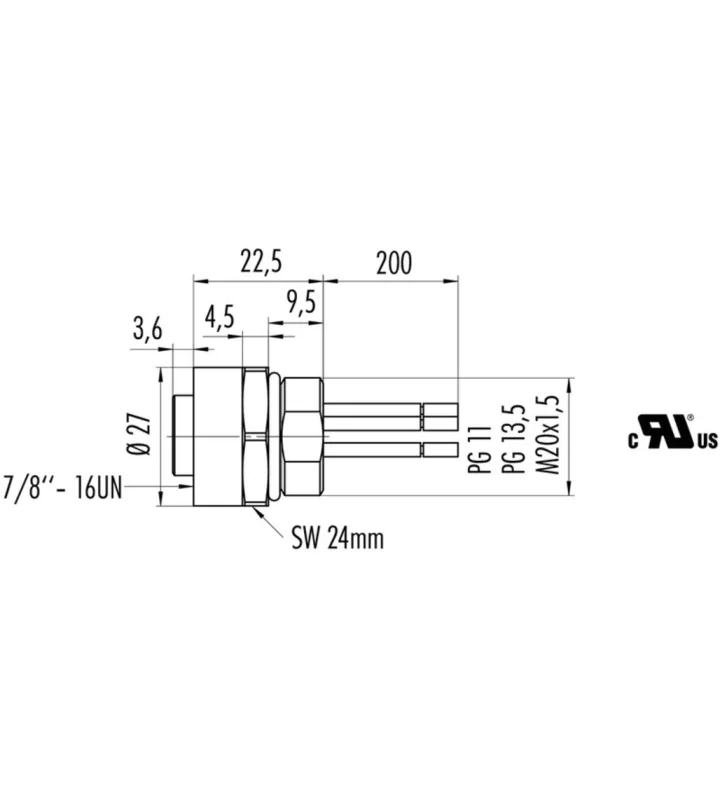

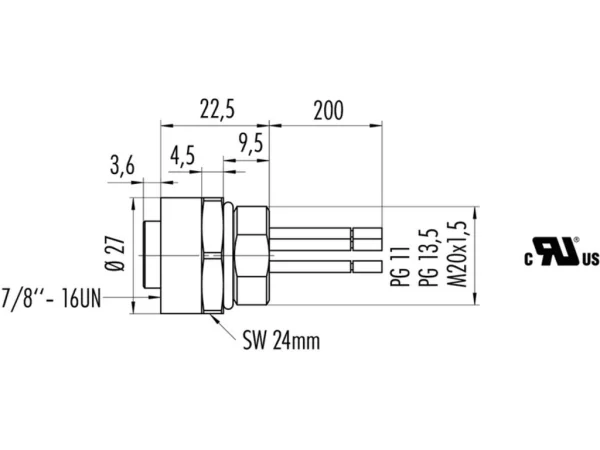

Female panel mount connector
With single wires
UL-approval
09 2450 320 05
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | 7/8 |
|---|---|
| Series | Sensor |
| Subseries | 820-870 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Single wires |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (7/8"-16 UN) |
| Mating cycles | >100 |
| Connector Diameter | 27 mm |
| Wire-section | 0.82 mm² |
| Fixing thread | M20 x 1,5 |
Electrical parameters
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 300 (UL 600) V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PUR (UL 94 HB) |
| Material of housing | Brass nickel plated / zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Fixing thread |
|---|---|---|
| 09 2446 310 03 | 3 | PG 11 |
| 09 2446 300 03 | 3 | PG 13,5 |
| 09 2446 320 03 | 3 | M20 x 1,5 |
| 09 2448 310 04 | 4 | PG 11 |
| 09 2448 300 04 | 4 | PG 13,5 |
| 09 2448 320 04 | 4 | M20 x 1,5 |
| 09 2450 310 05 | 5 | PG 11 |
| 09 2450 300 05 | 5 | PG 13,5 |
