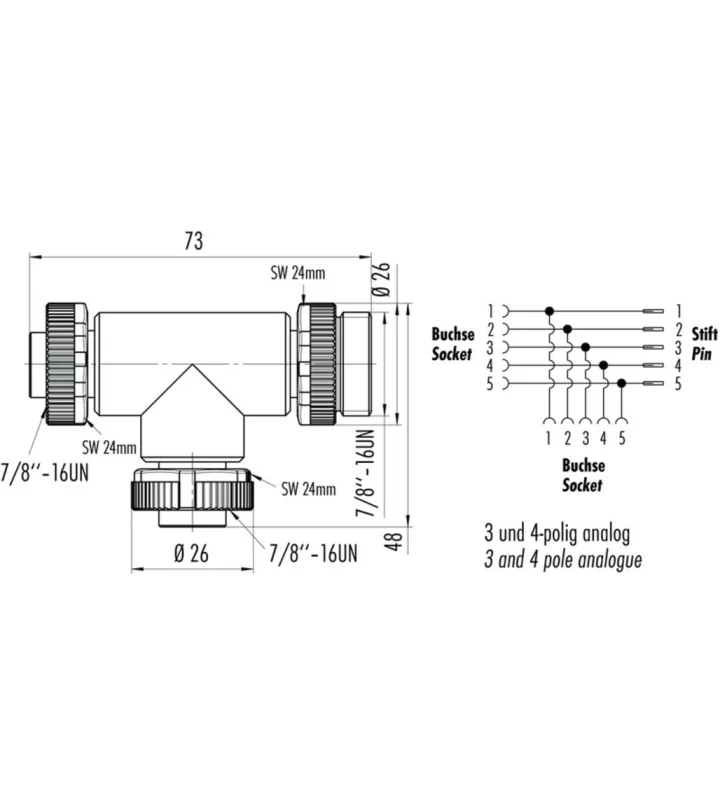

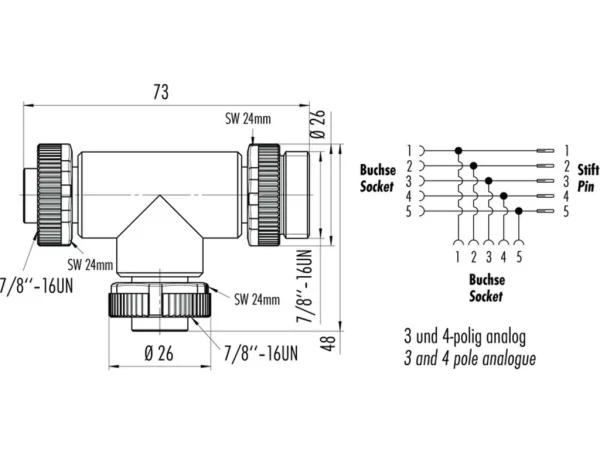

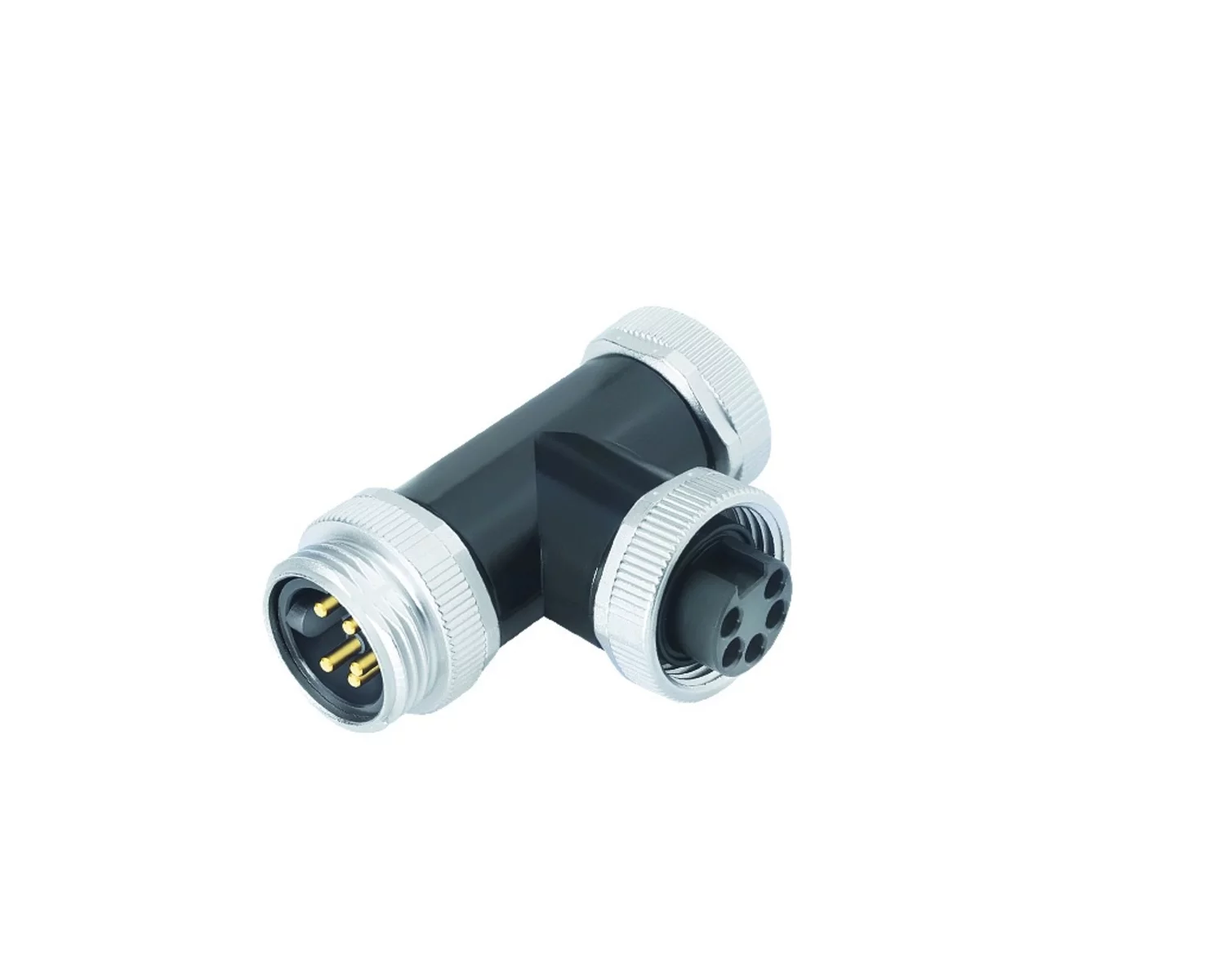

Splitter, pin 7/8", pin/socket 7/8"
09 2474 100 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | 7/8 |
|---|---|
| Series | Sensor |
| Subseries | 820-870 |
| Gender | Male & Female |
| Number of contacts | 4 |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (7/8"-16 UN) |
| Mating cycles | >100 |
| Connector Diameter | 26 mm |
Electrical parameters
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 300 V |
| Impuls voltage | 4000 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PUR (UL 94 HB) |
| Material of housing | Macromelt / brass nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts |
|---|---|
| 09 2473 100 03 | 3 |
| 09 2475 100 05 | 5 |
