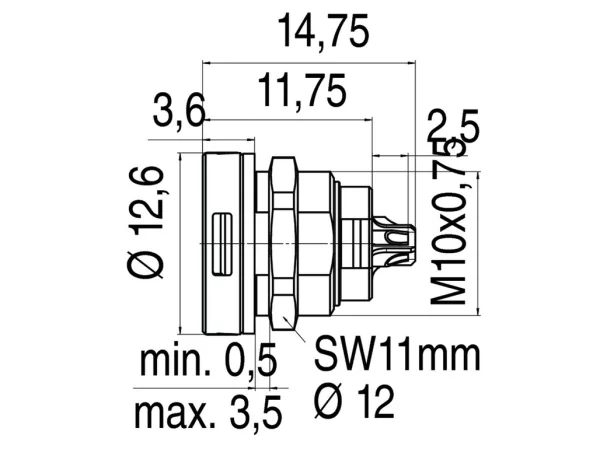

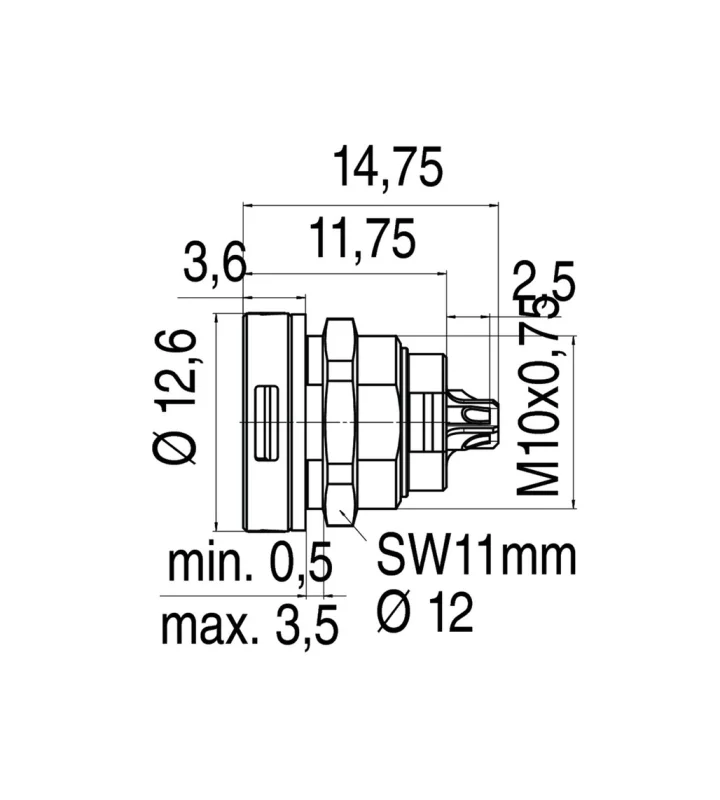

Female panel mount connector
09 4708 00 03
Specificaties
General Characteristics
| Series | Subminiature |
|---|---|
| Subseries | 420 |
| Gender | Female |
| Number of contacts | 3 |
| Contact terminal | Solder |
| Upper temperature | +80 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Micro Push-Pull |
| Mating cycles | >1000 |
| Connector Diameter | 12.6 mm |
| Wire-section | 0.14 mm² |
Electrical parameters
| Nominal current | 1 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 8 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts |
|---|---|
| 09 4712 00 04 | 4 |
| 09 4716 00 05 | 5 |
