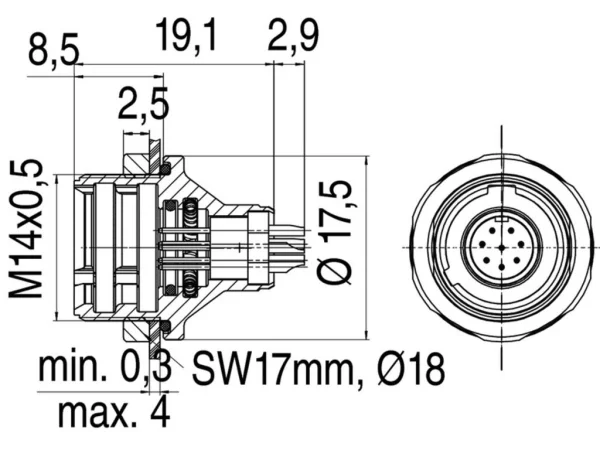

Male panel mount connector
front fastened, IP67, shielded
09 4907 081 03
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Subminiature |
|---|---|
| Subseries | 430 |
| Gender | Male |
| Number of contacts | 3 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Push-Pull |
| Mating cycles | >500 |
| Connector Diameter | 17.5 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | I |
Material
| Material group | II |
|---|---|
| Material of insert | PBT/PA |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Wire-section |
|---|---|---|
| 09 4911 081 04 | 4 | 0.25 mm² |
| 09 4915 081 05 | 5 | 0.25 mm² |
| 09 4927 081 07 | 7 | 0.14 mm² |
| 09 4931 081 08 | 8 | 0.14 mm² |
