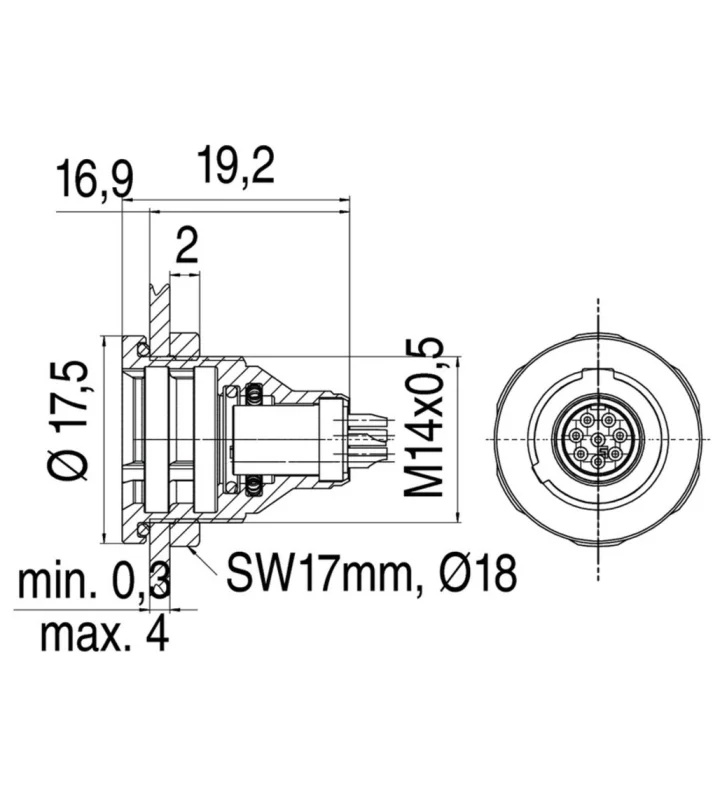

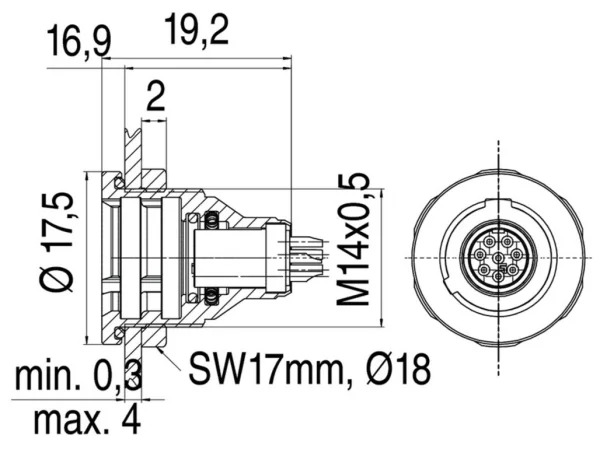

Female panel mount connector
IP67, shielded
09 4912 00 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Subminiature |
|---|---|
| Subseries | 430 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Push-Pull |
| Mating cycles | >500 |
| Connector Diameter | 17.5 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | I |
Material
| Material group | II |
|---|---|
| Material of insert | PBT/PA |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Wire-section |
|---|---|---|
| 09 4908 00 03 | 3 | 0.25 mm² |
| 09 4916 00 05 | 5 | 0.25 mm² |
| 09 4928 00 07 | 7 | 0.14 mm² |
| 09 4932 00 08 | 8 | 0.14 mm² |
