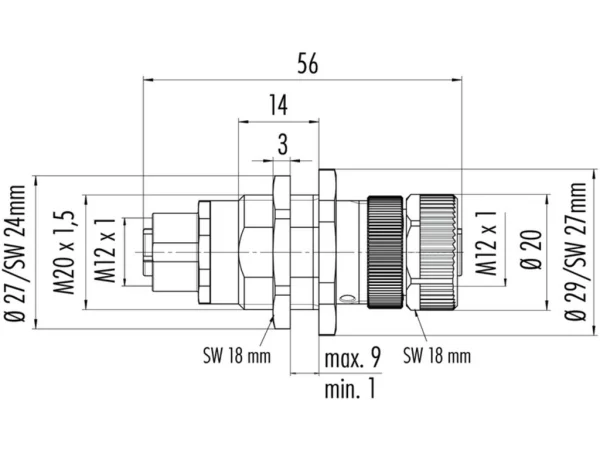

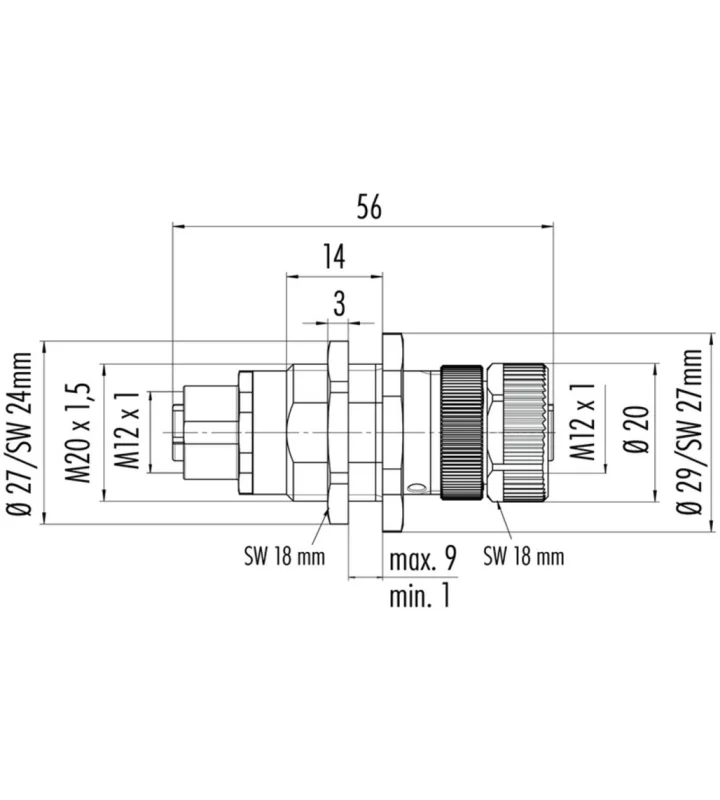

Adapter
Lead-through for control cabinet, shielded, female
UL-approval
09 5246 00 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-D |
|---|---|
| Series | Sensor |
| Subseries | 825 |
| Number of contacts | 4 |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-D) |
| Mating cycles | >100 |
| Connector Diameter | 20 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | Zinc diecasting nickel plated / brass nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
