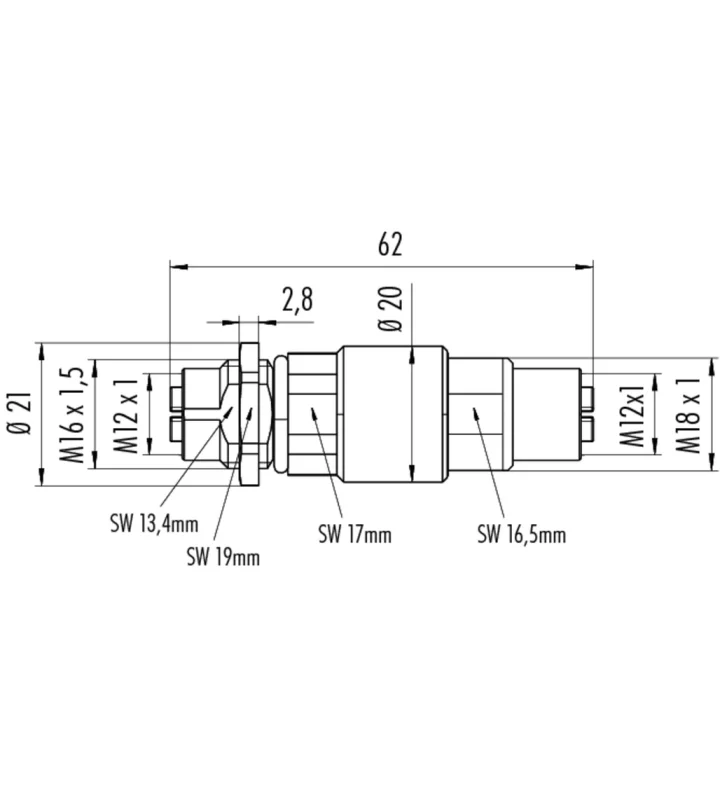

Adapter, lead through for control cabinet
female-female, shielded
UL-approval
09 5286 00 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-X |
|---|---|
| Series | Sensor |
| Subseries | 825-876 |
| Gender | Female |
| Number of contacts | 8 |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-X) |
| Mating cycles | >50 |
| Connector Diameter | 21 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 50 AC, 60 DC |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
