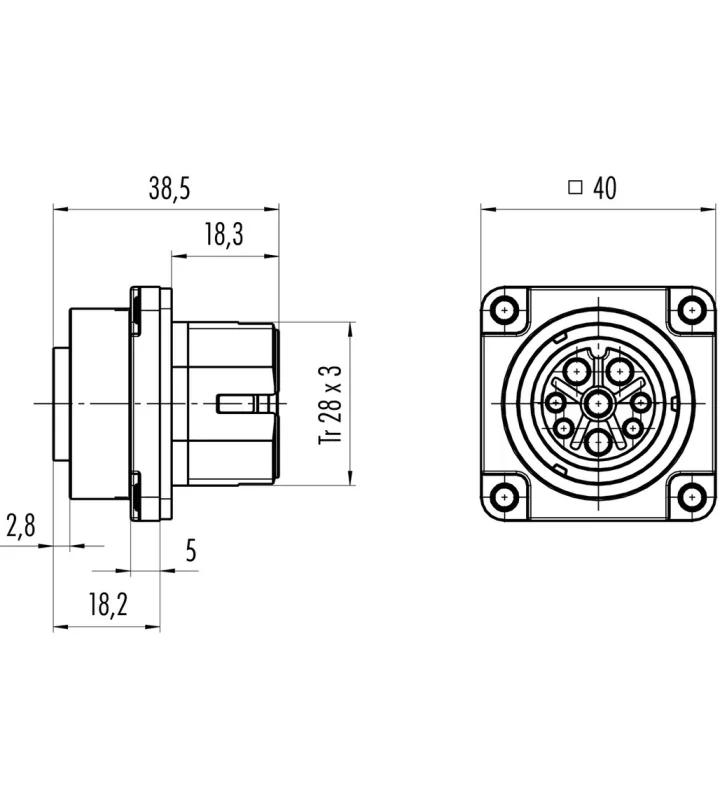

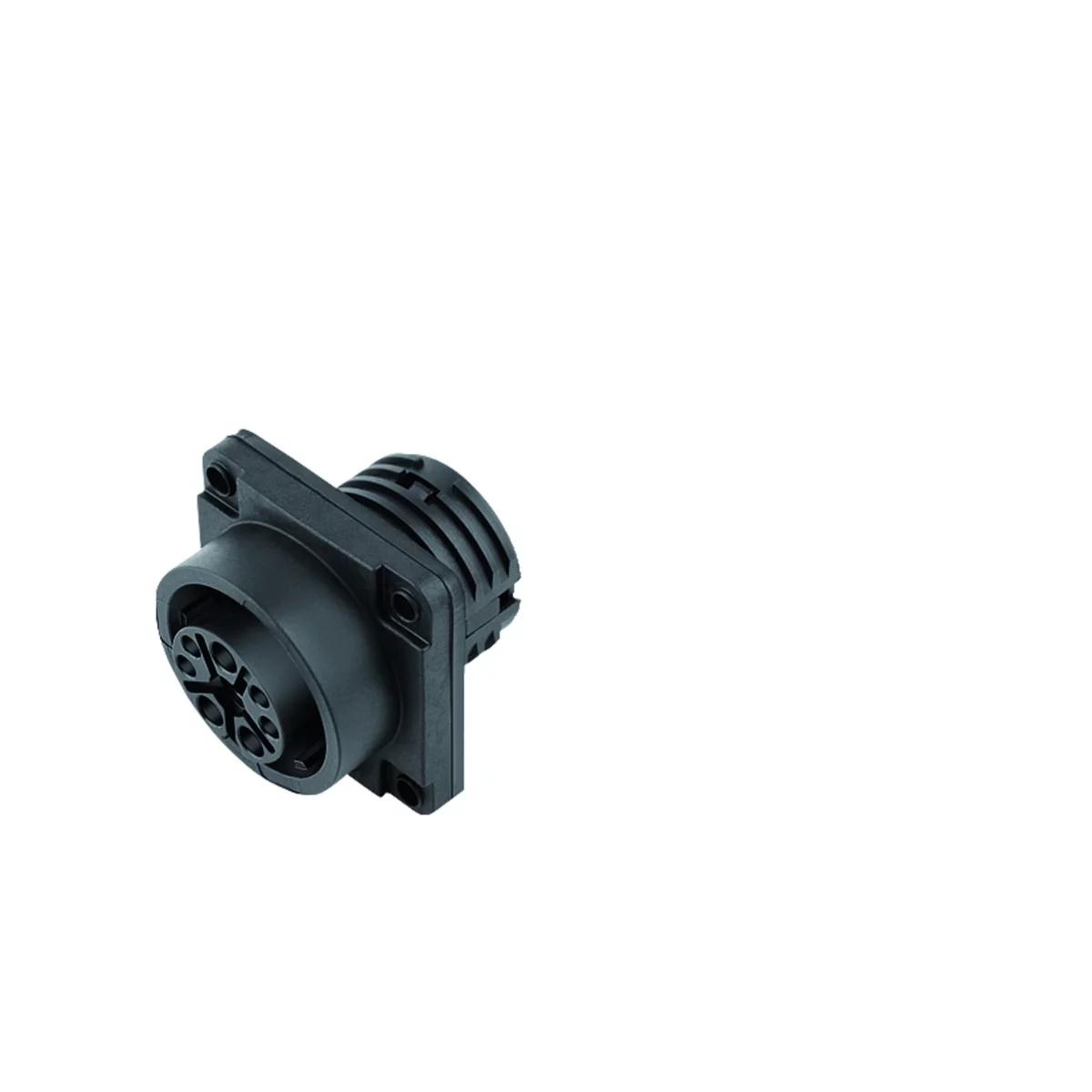

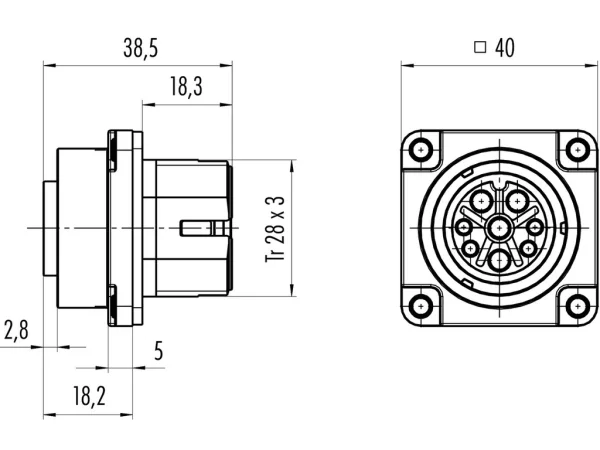

Female panel mount connector
with bayonet Locking
09 6492 000 05
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Power |
|---|---|
| Subseries | 696 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Crimp |
| Upper temperature | +100 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68/IP69K |
| Locking system | Bayonet |
| Mating cycles | >1000 |
| Wire gauge | 14-10 AWG |
| Wire-section | 2,50-6,00 mm² |
Electrical parameters
| Nominal current | 32 A |
|---|---|
| Nominal voltage | 600 V |
| Impuls voltage | 6000 V |
| Max. contact resistance | >10 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | I |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | depending on crimp contact |
| Plating | depending on crimp contact |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Mating cycles | Wire gauge | Wire-section |
|---|---|---|---|---|---|---|---|---|
| 09 6520 000 12 | ≤5 A | 12 | 250 V | 4000 V | >200 - ≤400 V | >500 | 26-16 AWG | 0,14-1,0 mm² |
