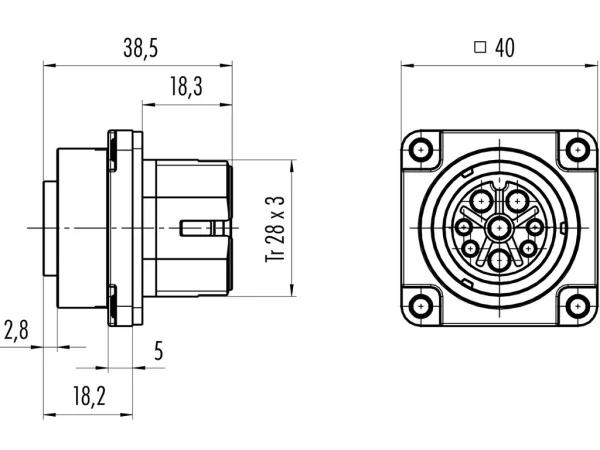

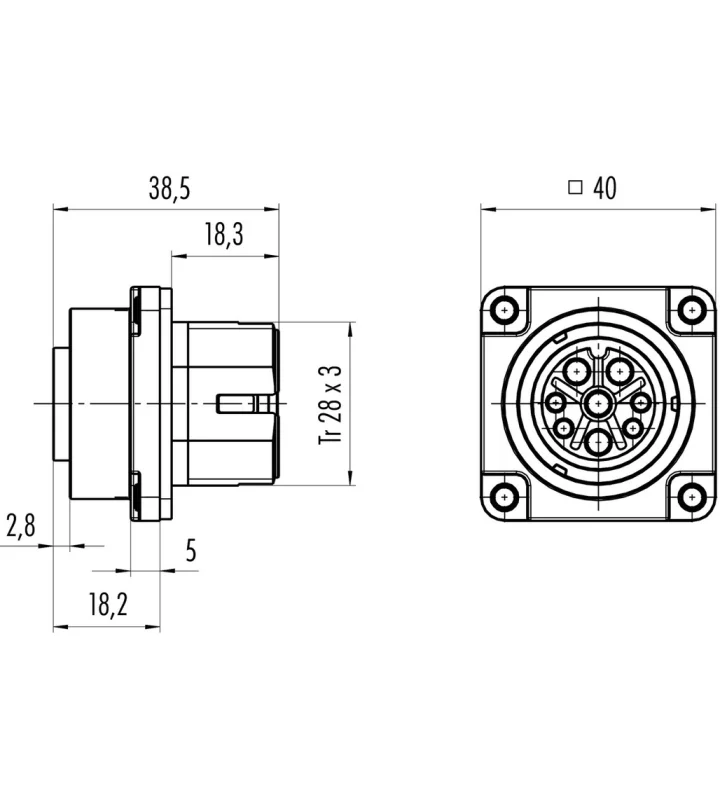

Female panel mount connector
with bayonet Locking
09 6504 000 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Power |
|---|---|
| Subseries | 696 |
| Gender | Female |
| Number of contacts | 8 mixed layout |
| Contact terminal | Crimp |
| Upper temperature | +100 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68/IP69K |
| Locking system | Bayonet |
| Mating cycles | >1000 |
| Wire gauge | 14-26 AWG |
| Wire-section | 0,14-2,50 mm² |
Electrical parameters
| Nominal current | 3 Signal, 25 Power (20A UL) |
|---|---|
| Nominal voltage | 60V Signal/ 400V Power |
| Impuls voltage | 1000 V |
| Max. contact resistance | >10 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | I |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | depending on crimp contact |
| Plating | depending on crimp contact |
