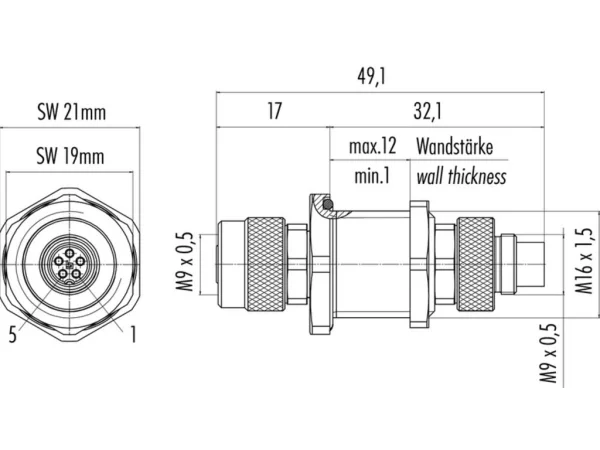

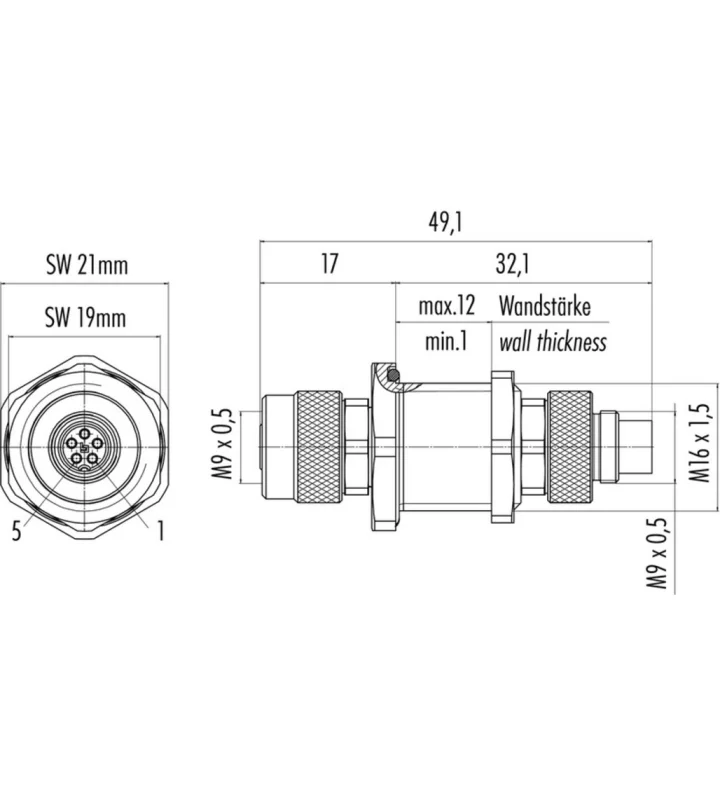

Adapter for panel mount connectors
Lead-through for control cabinet
09 9618 100 05
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M9 |
|---|---|
| Series | Subminiature |
| Subseries | 712-702 |
| Number of contacts | 5 |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M9) |
| Mating cycles | >500 |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
