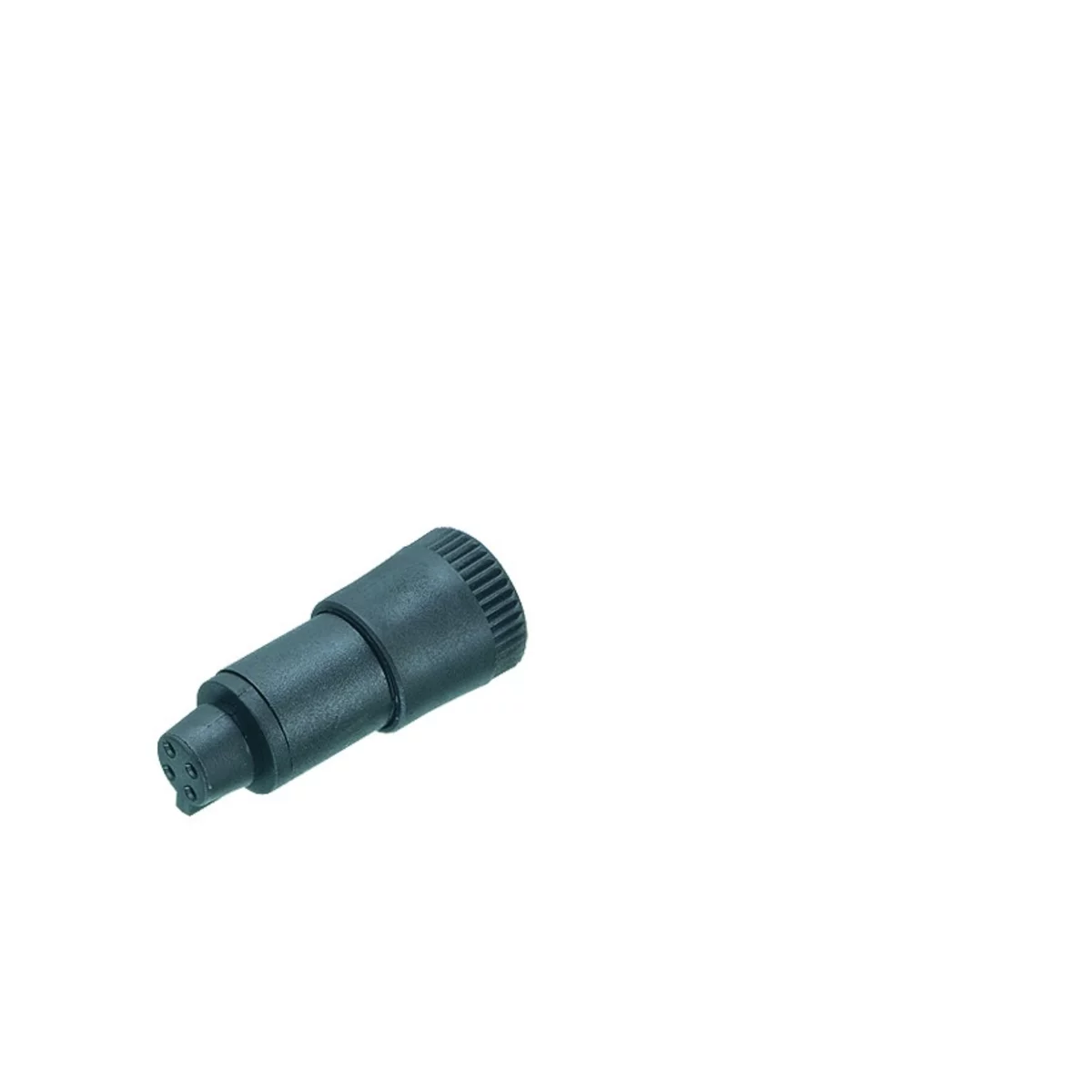

Female cable connector
With strain relief
09 9764 71 04
Specificaties
General Characteristics
| Series | Subminiature |
|---|---|
| Subseries | 719 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Solder |
| Upper temperature | +70 °C |
| Lower temperature | -25 °C |
| Protection degree | IP40 |
| Locking system | Snap-in |
| Mating cycles | >100 |
| Connector Diameter | 10.5 mm |
| Cable outlet | 5 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Cable outlet |
|---|---|---|
| 09 9748 70 03 | 3 | 4 mm |
| 09 9748 71 03 | 3 | 5 mm |
| 09 9764 70 04 | 4 | 4 mm |
| 09 9790 71 05 | 5 | 5 mm |
