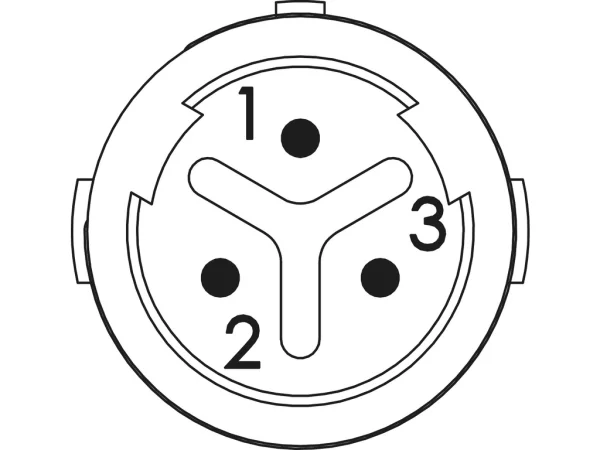

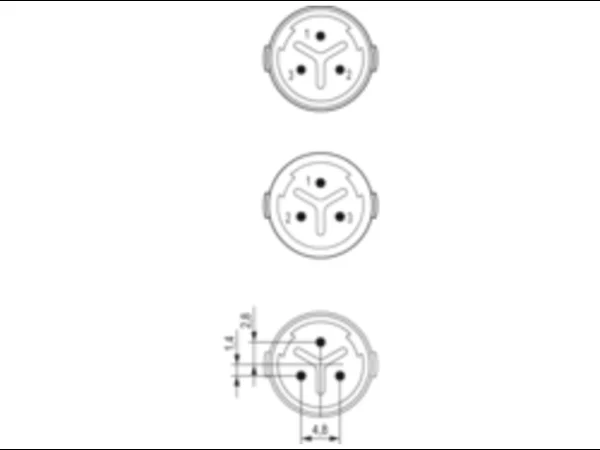

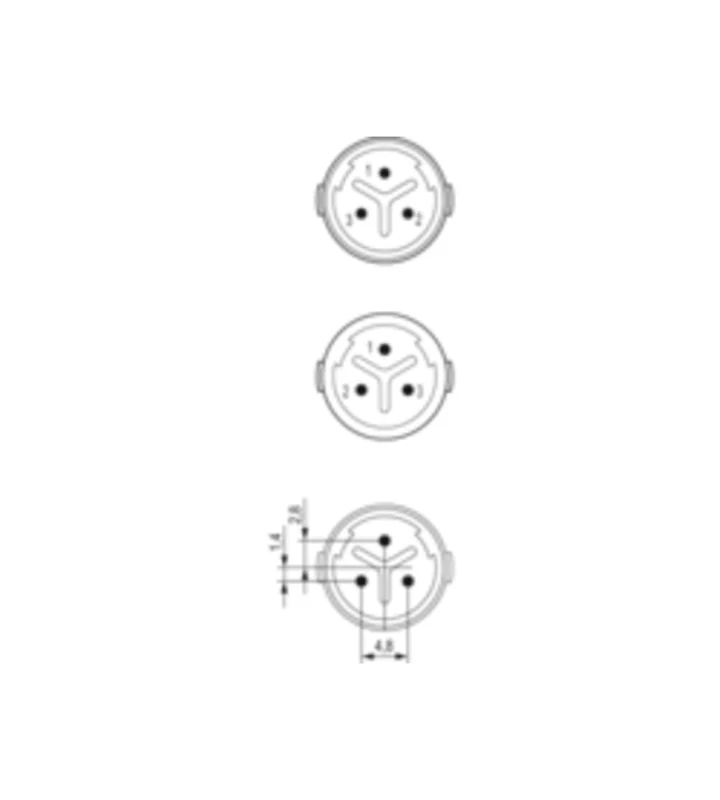

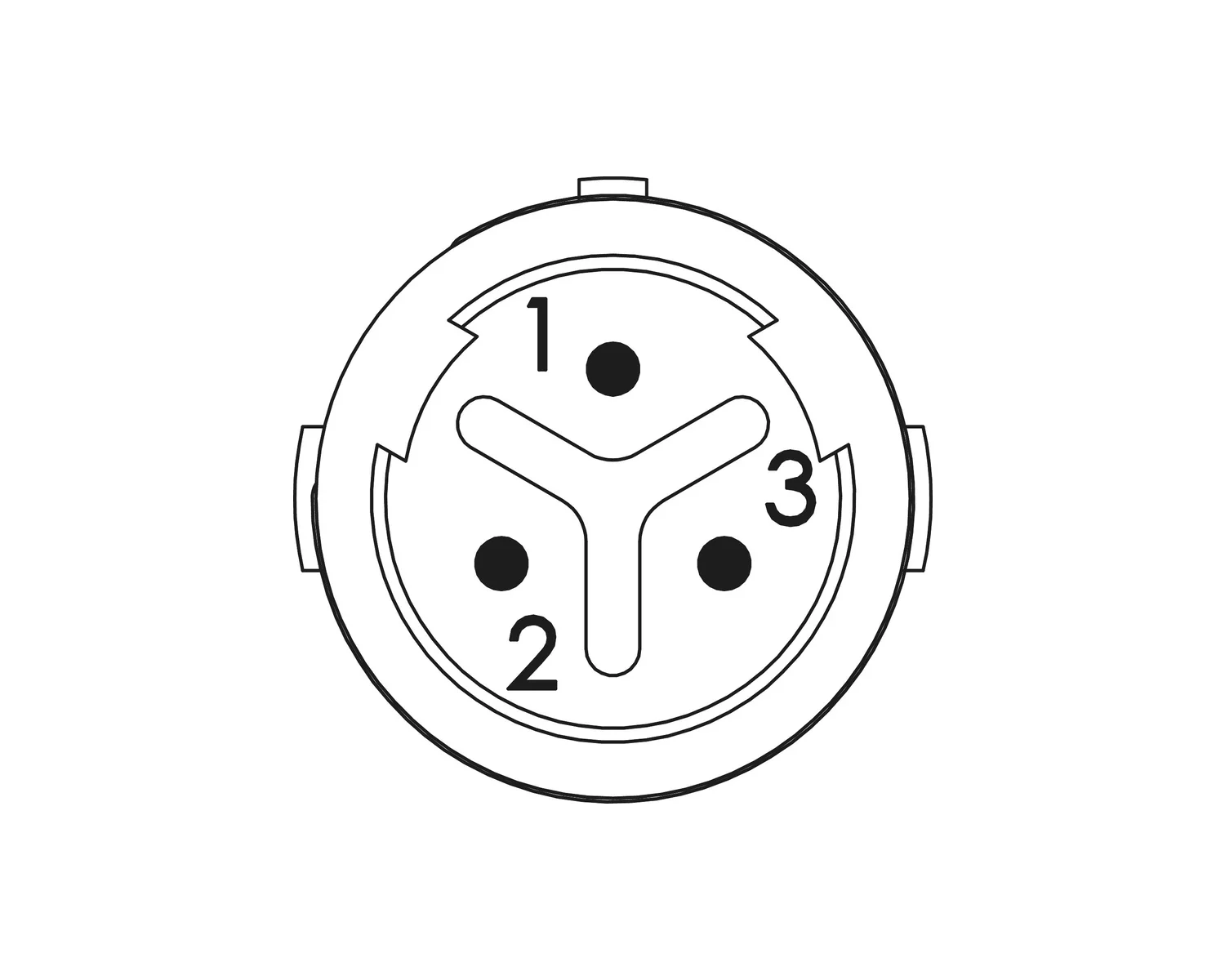

3-pole (3 x 1 mm)
Sockets
7.001.903.118
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M16 |
|---|---|
| Number of contacts | 3 |
| Gender | Female |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking | Twilock |
| Protection degree | IP67/IP69K |
| Terminal type | Dip-solder |
| Included contacts | dip solder length 17 mm |
| Contact diameter | 1 mm |
Electrical Parameters
| Nominal voltage (degree of pollution 3) | 400 V~ |
|---|---|
| Test voltage | 2500 V~ |
| Nominal current | 8 A |
| Insulation resistance | > 10¹⁰ |
| Max. contact resistance | 3 mΩ |
Material
| Material | Thermoplastic Polyamid PA 6/Fire protection class V-0 |
|---|
General Characteristics
| Contact terminal | Crimp |
|---|
Varianten
| Art. number | Nominal voltage (degree of pollution 3) | Series | Size | Number of contacts | Test voltage | Nominal voltage (V) | Insulation resistance | Included contacts | Pinout | Coding possibilities | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.001.916.108 | 160 V~ | M23 Signal | M23 Signal | 16 | 1500 V~ | ≤200 V | > 10⁶ | dip solder length 10 mm | Clockwise | N, S, H, X, Y & Z | The correct dimension of a connector with dip solder contacts depends on the particular type of housing |
