Inserts 19-pole (16+3)

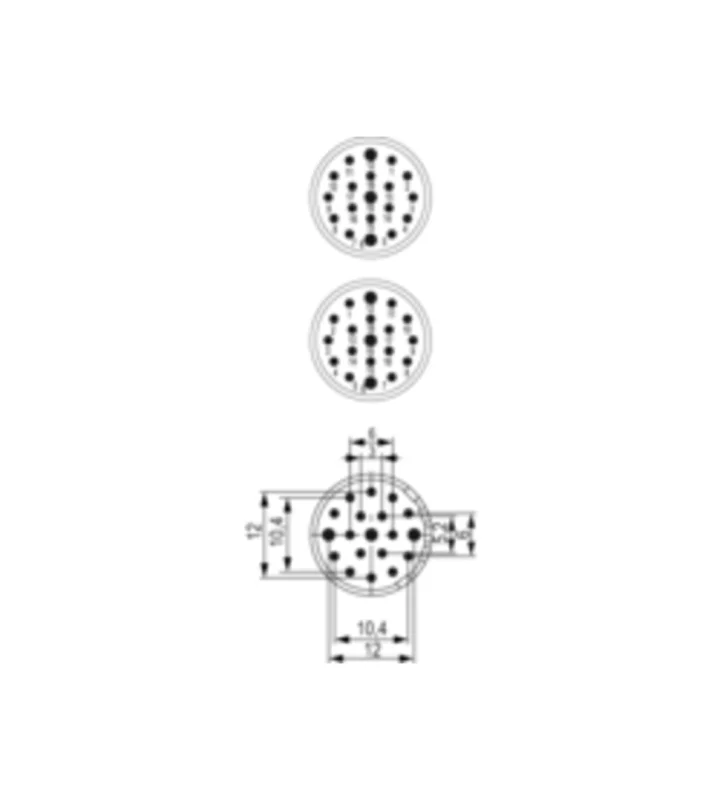

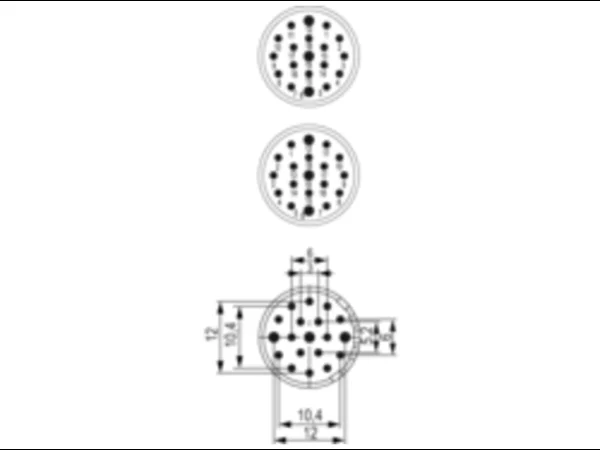

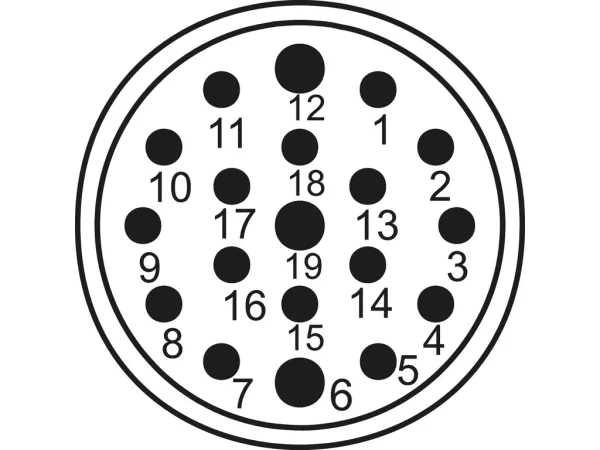

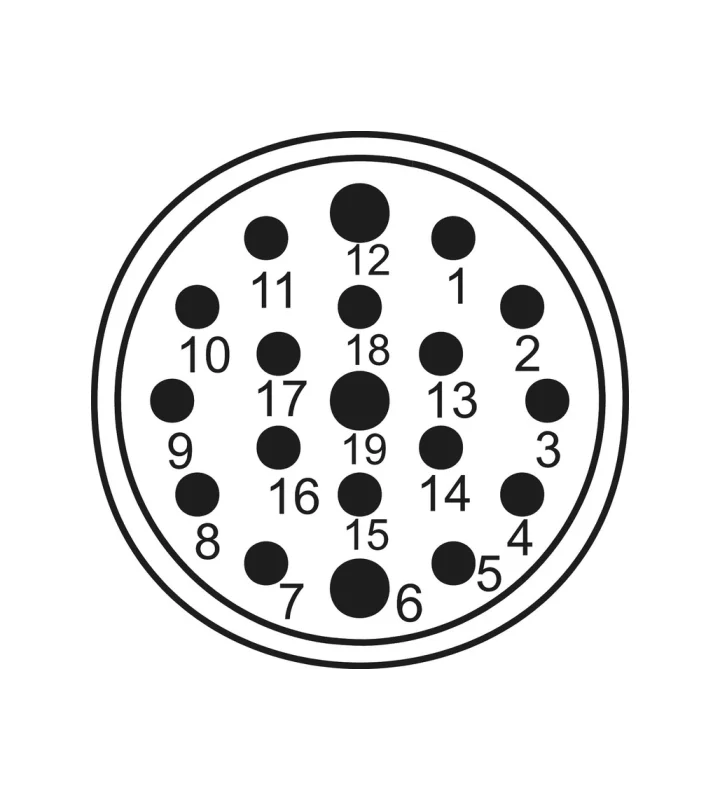

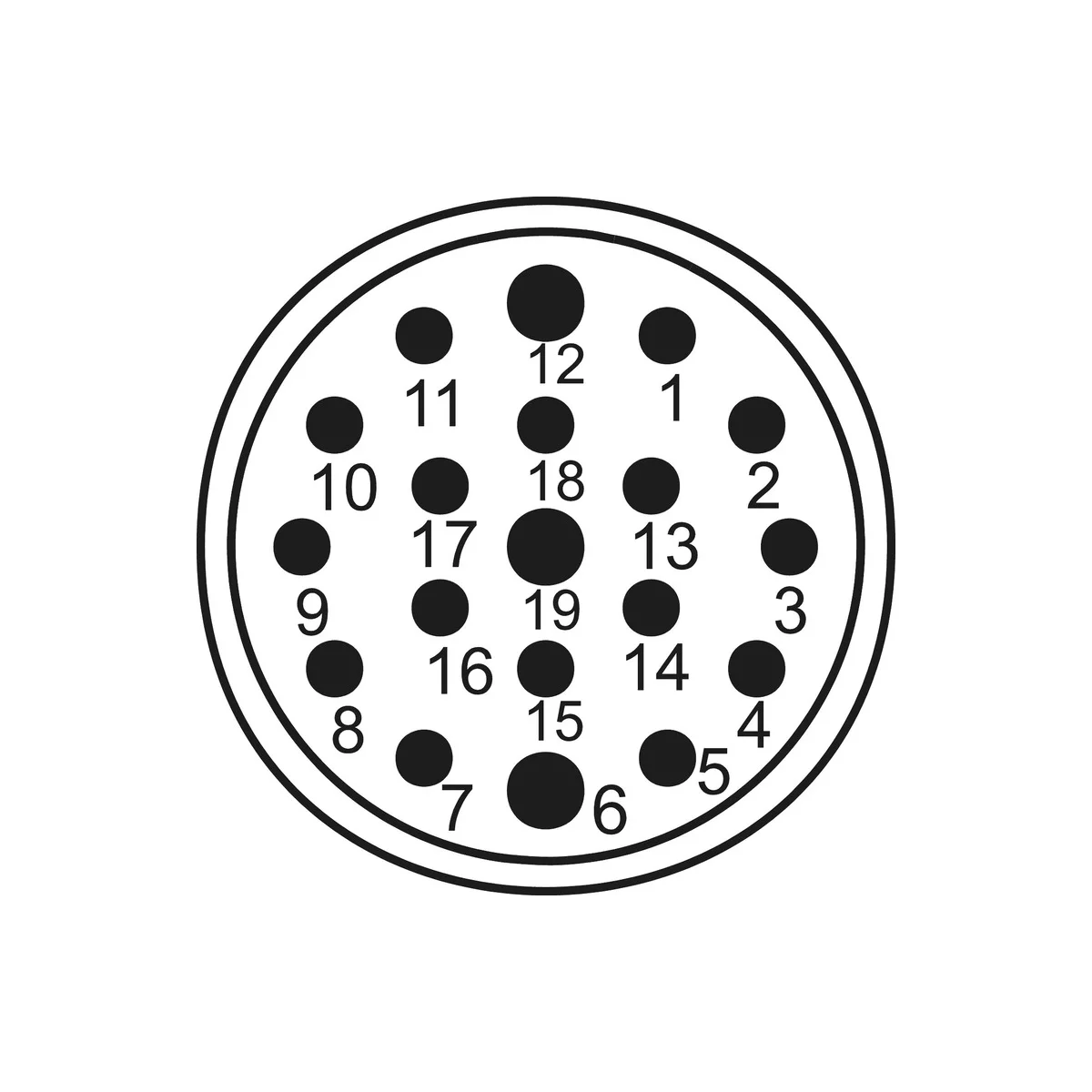

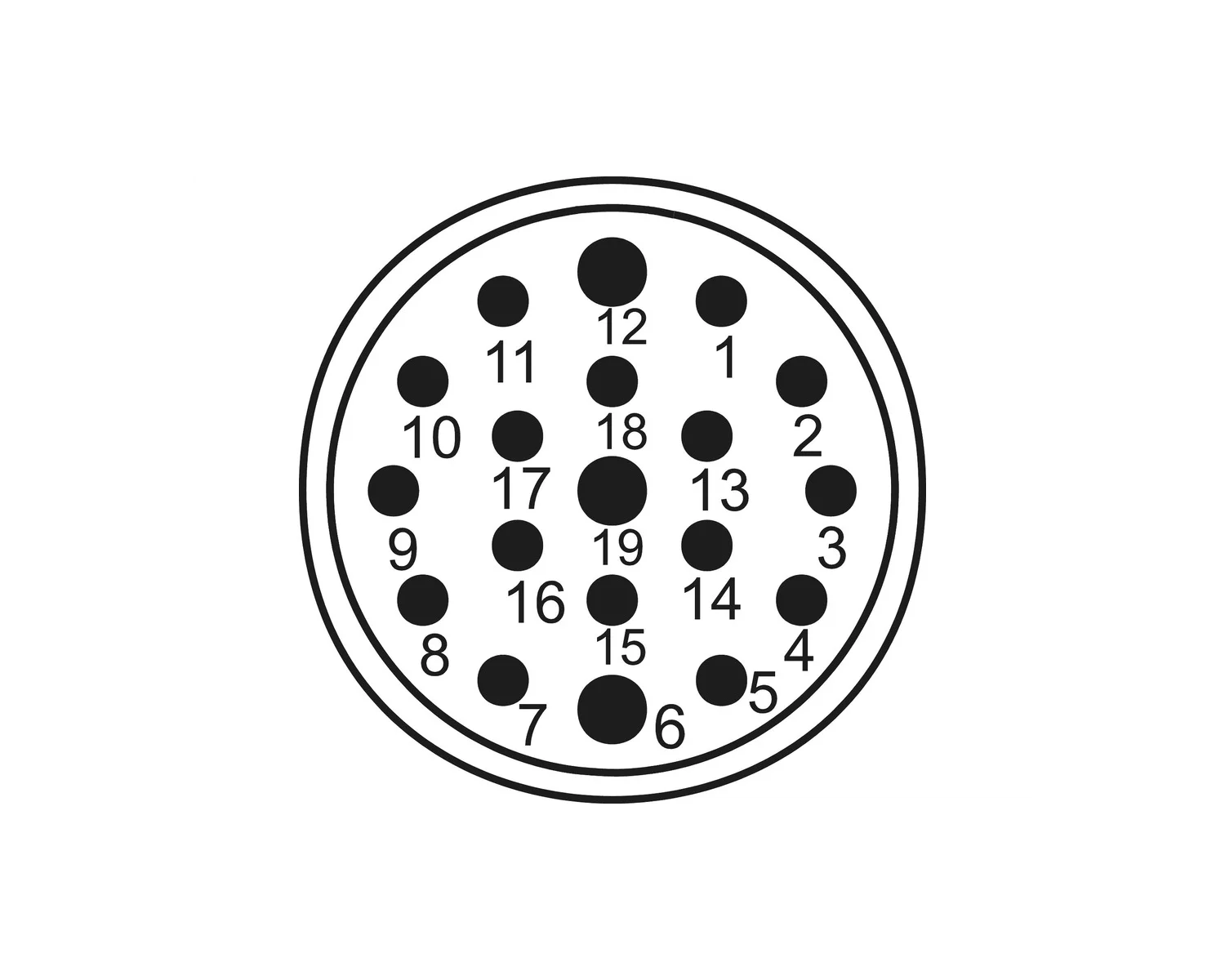

Pinout clockwise, Signal
Pins
7.001.919.137
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Signal |
|---|---|
| Number of contacts | 19 |
| Gender | Male |
| Pinout | Clockwise |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking | Twilock |
| Protection degree | IP67/IP69K |
| Terminal type | Dip-solder |
| Included contacts | dip solder length 17 mm |
| Contact diameter (a) | 1 mm |
| Contact diameter (b) | 1.5 |
| Coding possibilities | N,S,H,X & Y |
| Remark | The correct dimension of a connector with dip solder contacts depends on the particular type of housing |
Electrical Parameters
| Nominal voltage (degree of pollution 3) | 100 V~ |
|---|---|
| Test voltage | 1500 V~ |
| Nominal current (a) | 8 A |
| Nominal current (b) | 10 A |
| Insulation resistance | > 10⁶ |
| Max. contact resistance | 3 mΩ |
Material
| Material | Thermoplastic Polyamid PA 6/Fire protection class V-0 |
|---|
