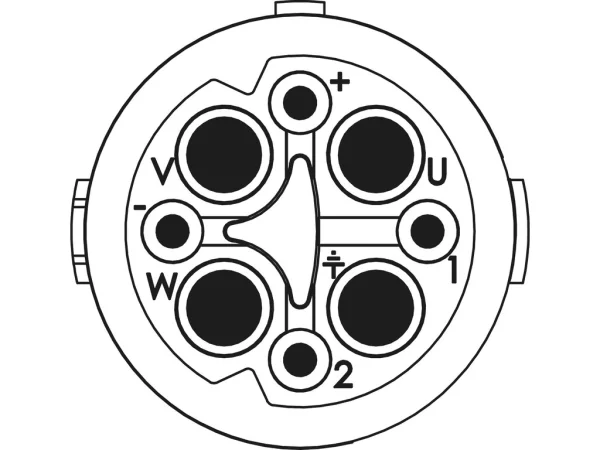

Inserts 4+3+PE 630V
Sockets
7.003.908.102
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M16 |
|---|---|
| Number of contacts | 4+3+PE |
| Gender | Female |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking | Twilock |
| Protection degree | IP67/IP69K |
| Wire section (a) | 0,08-0,34 mm² |
| Wire section (b) | 0,34-1,5 mm² |
| Terminal type | Crimp |
| Required crimp contacts | 4x0,8mm & 4x1,25mm |
| Contact diameter (a) | 0.8 mm |
| Contact diameter (b) | 1.25 |
Electrical Parameters
| Nominal voltage (degree of pollution 3) (a) | 300 V~ |
|---|---|
| Nominal voltage (degree of pollution 3) (b) | 630 V~ |
| Test voltage (a) | 1500 V~ |
| Test voltage (b) | 2500 V~ |
| Nominal current | 5 A |
| Nominal current (b) | 16 A |
| Insulation resistance | > 10¹⁰ |
| Max. contact resistance (a) | 3 mΩ |
| Max. contact resistance (b) | 3 mΩ |
Material
| Material | Thermoplastic Polyamid PA 6/Fire protection class V-0 |
|---|
