Inserts 12-pole

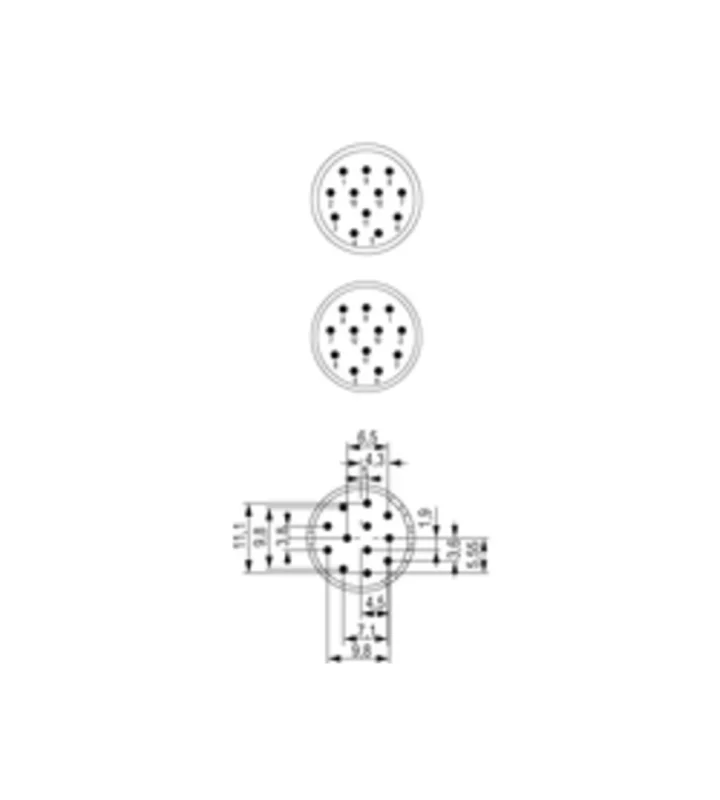

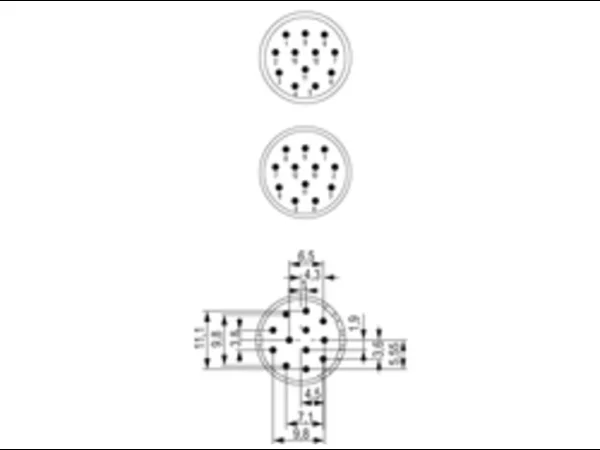

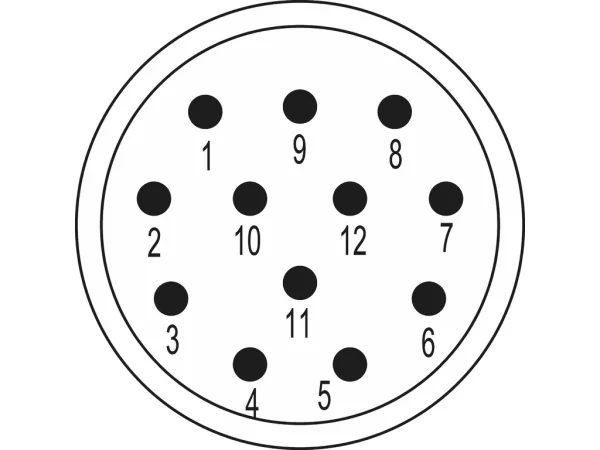

Pinout counter-clockwise, Signal
Pins
7.004.912.111
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Signal |
|---|---|
| Number of contacts | 12 |
| Gender | Male |
| Pinout | Counter-clockwise |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking | Twilock |
| Protection degree | IP67/IP69K |
| Wire section | 0,08-1,5 mm² |
| Terminal type | Crimp |
| Product information | Contacts: +PE (pos.9) |
| Contact diameter | 1 mm |
| Coding possibilities | N, S, H, X, Y & Z |
Electrical Parameters
| Nominal voltage (degree of pollution 3) | 200 V~ |
|---|---|
| Test voltage | 2500 V~ |
| Nominal current | 8 A |
| Insulation resistance | > 10¹⁰ |
| Max. contact resistance | 3 mΩ |
Material
| Material | Thermoplastic Polyamid PA 6/Fire protection class V-0 |
|---|
