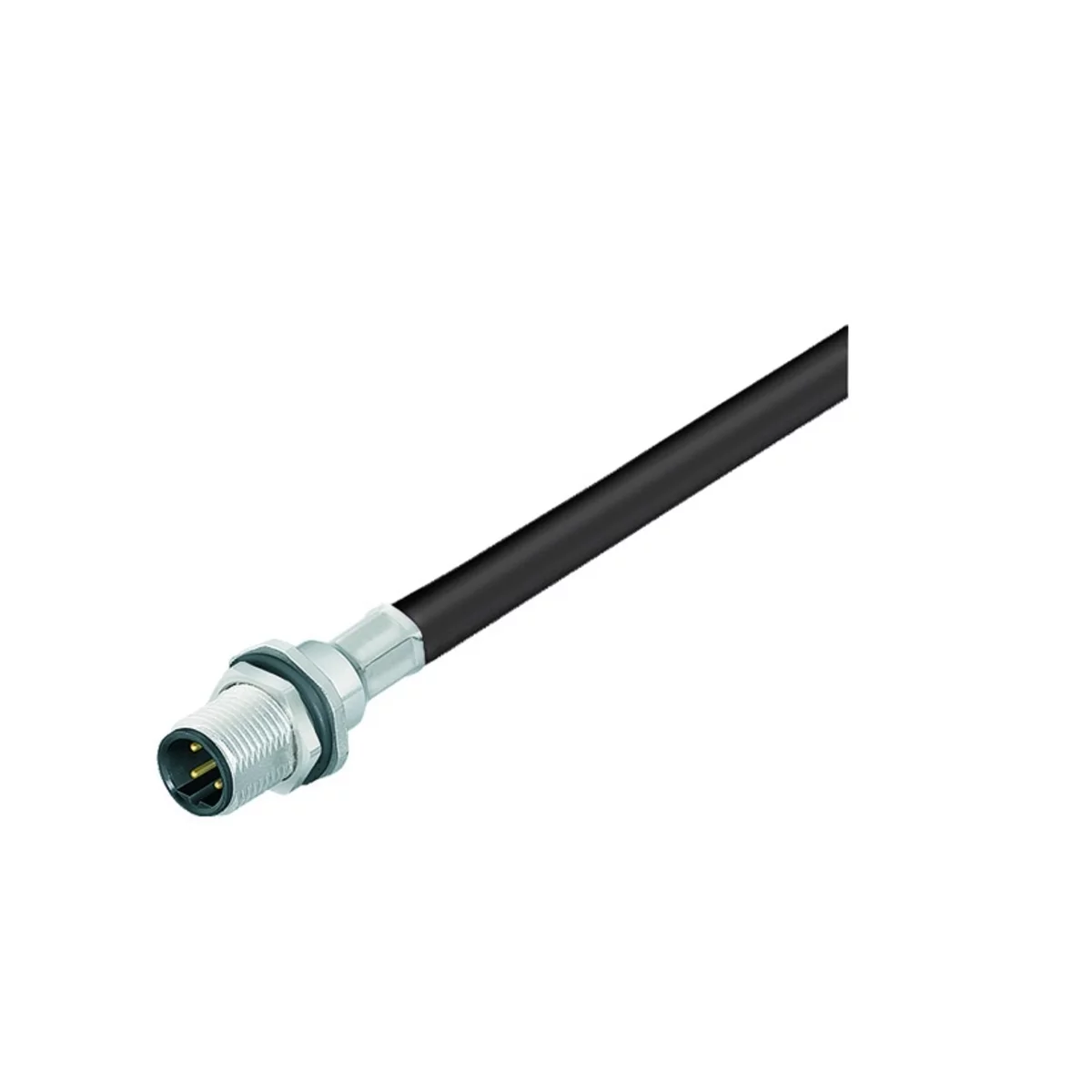

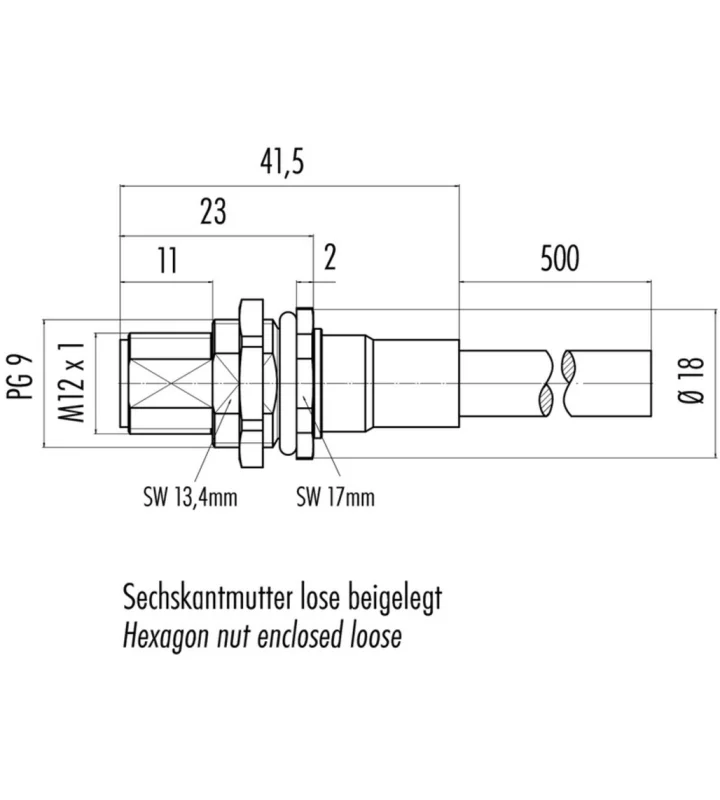

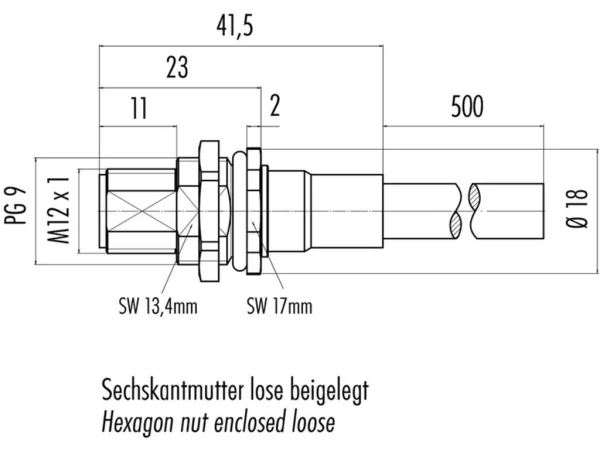

Male panel mount connector
Front fastened, with shielded PUR cable
70 3481 287 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | PUR-cable |
| Upper temperature | 70 °C |
| Lower temperature | -5 °C |
| Protection degree | IP68* |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 18 mm |
| Cable Length | 0.5 m |
| Cable diameter | 6 mm |
| Wire-section | 0.25 mm² |
| Fixing thread | PG 9 |
| Remark* | *When built-in, connected and locked with counterpart |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Brass/zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Cable diameter |
|---|---|---|---|---|
| 70 3441 287 05 | 5 | 125 V | 1500 V | 5,3 mm |
