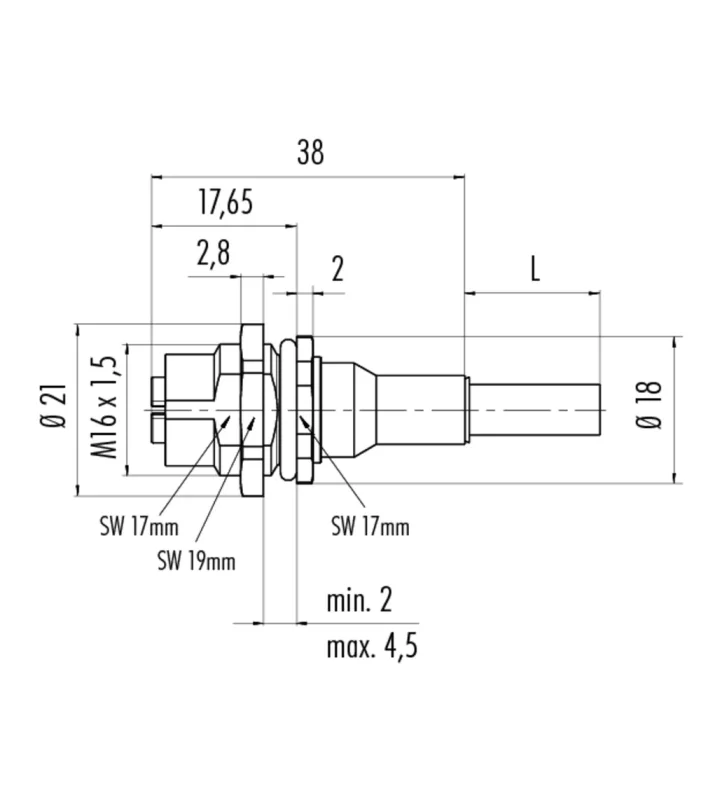

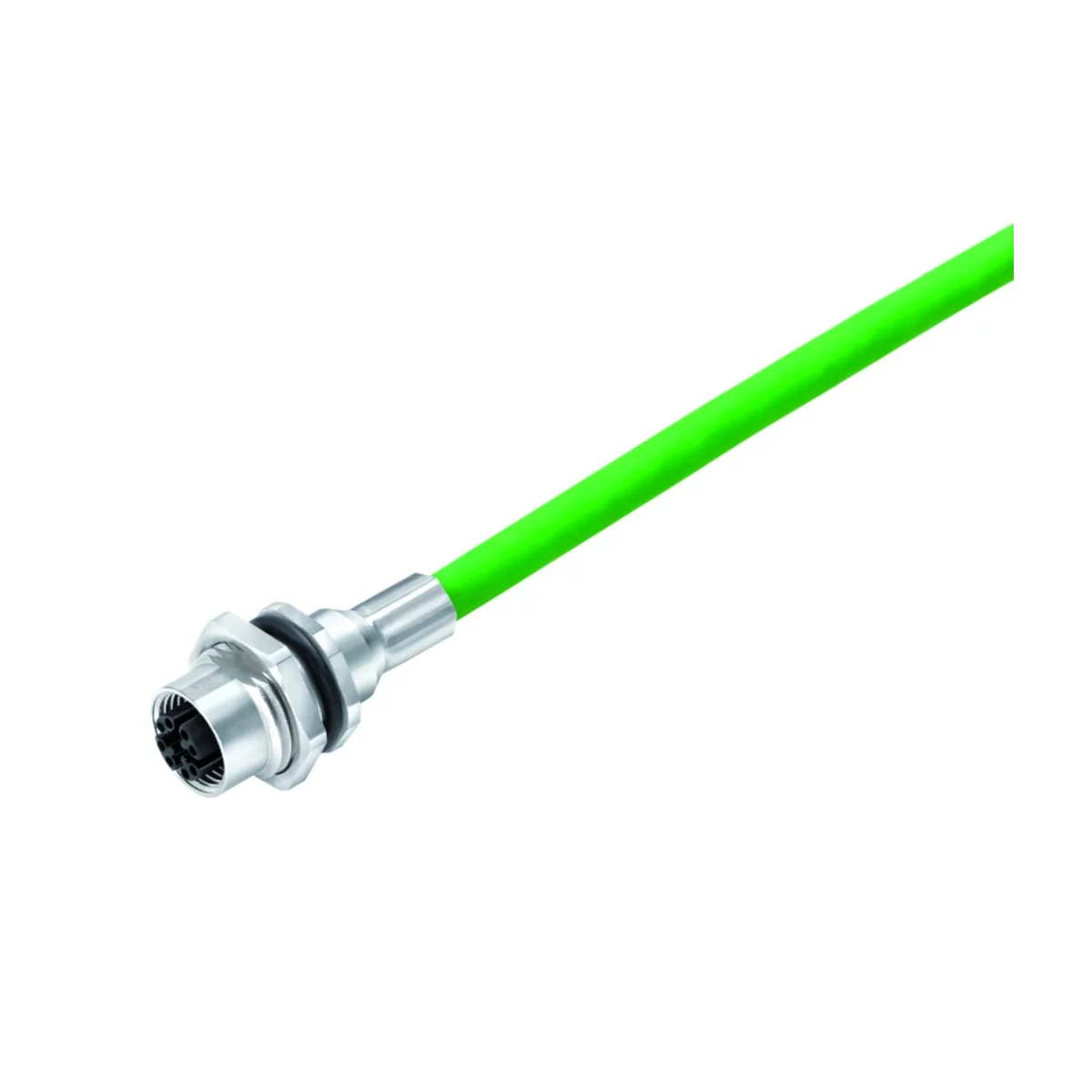

Female panel mount connector
Front fastened with ethernet cable
UL-approval
70 3784 706 08
Specificaties
General Characteristics
| Screw size | M12-X |
|---|---|
| Series | Sensor |
| Subseries | 825-876 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Cable |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-X) |
| Mating cycles | >50 |
| Connector Diameter | 21 mm |
| Cable Length | 0.5 m |
| Cable sheath | 6.2 mm |
| Radius cable fixed | ≥25 mm |
| Radius cable movable | ≥50 mm |
| Single lead structure | 7x0,16 |
Electrical parameters
| Nominal current | 0.5 A |
|---|---|
| Nominal voltage | 50 AC, 60 DC |
| Max. contact resistance | 10 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Housing of cable | PUR Green |
