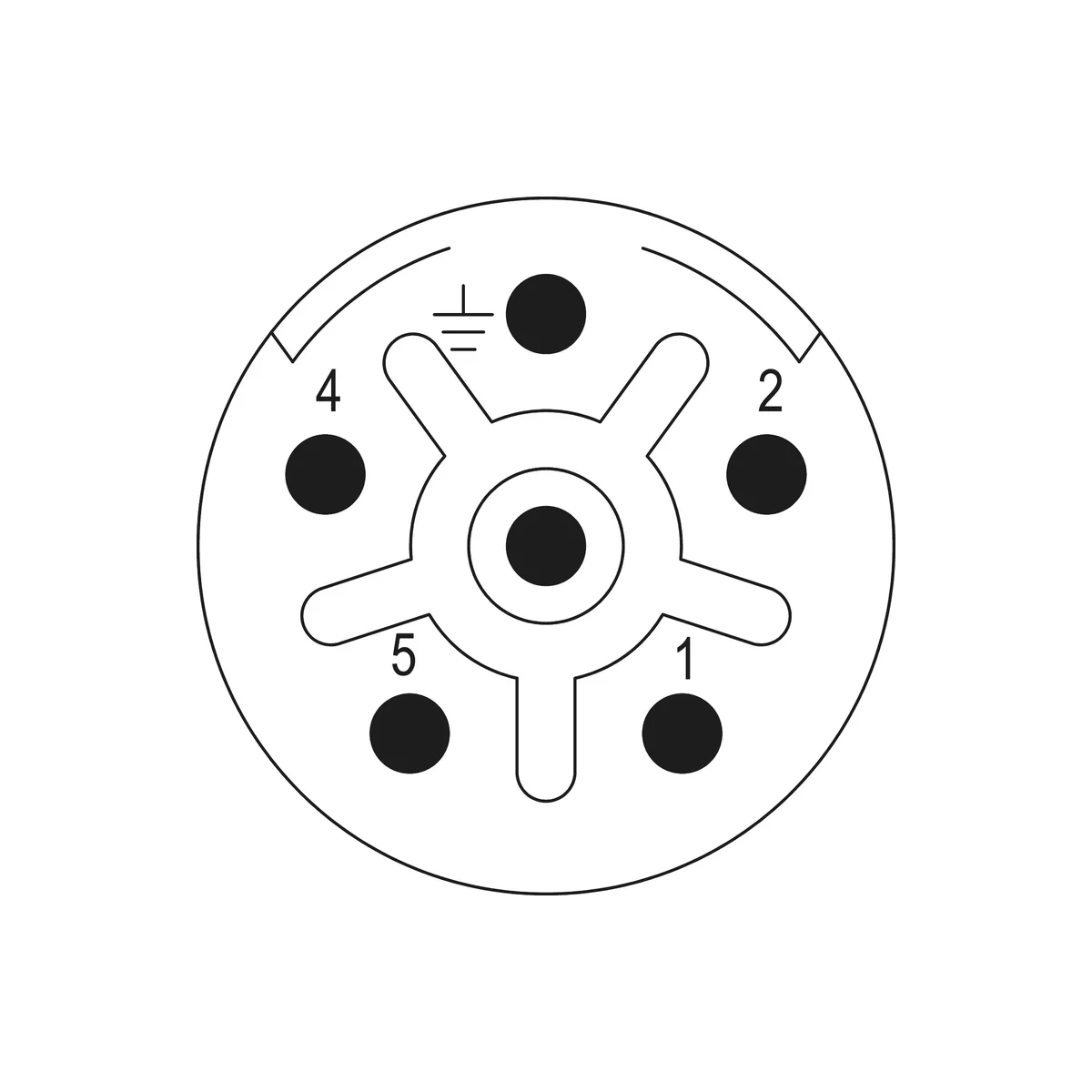

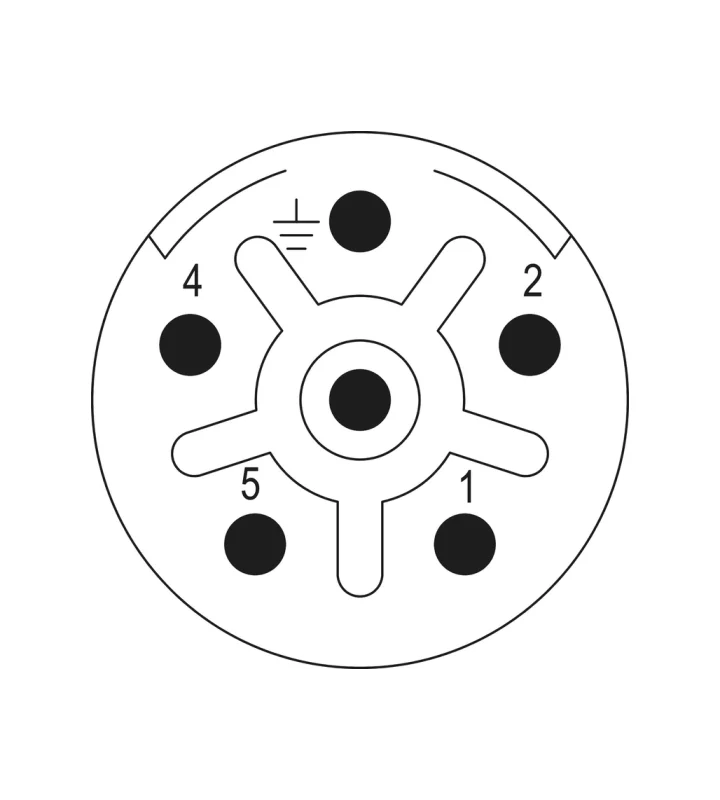

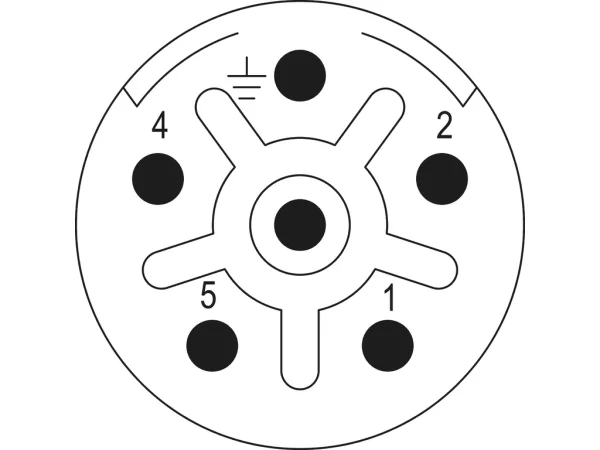

Inserts 6-pole
Sockets, power
7.084.951.122
Stel je connector verder samen
Voeg de gewenste housings en contacts toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Power |
|---|---|
| Number of contacts | 6 |
| Gender | Female |
| Upper temperature | +125 °C |
| Lower temperature | -40 °C |
| Locking | Screw locking | Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | >1000 |
| Wire section | 0,75-4 mm² |
| Terminal type | Crimp |
| Required crimp contacts | 6 x 2mm |
| Contact diameter | 2 mm |
Electrical Parameters
| Nominal voltage (degree of pollution 3) | 600 V~ |
|---|---|
| Test voltage | 4000 V~ |
| Nominal current | 28 A |
| Insulation resistance | > 10¹³ |
| Max. contact resistance | 3 mΩ |
Material
| Material | Thermoplastic Polyamid PA 6/Fire protection class V-0 |
|---|
