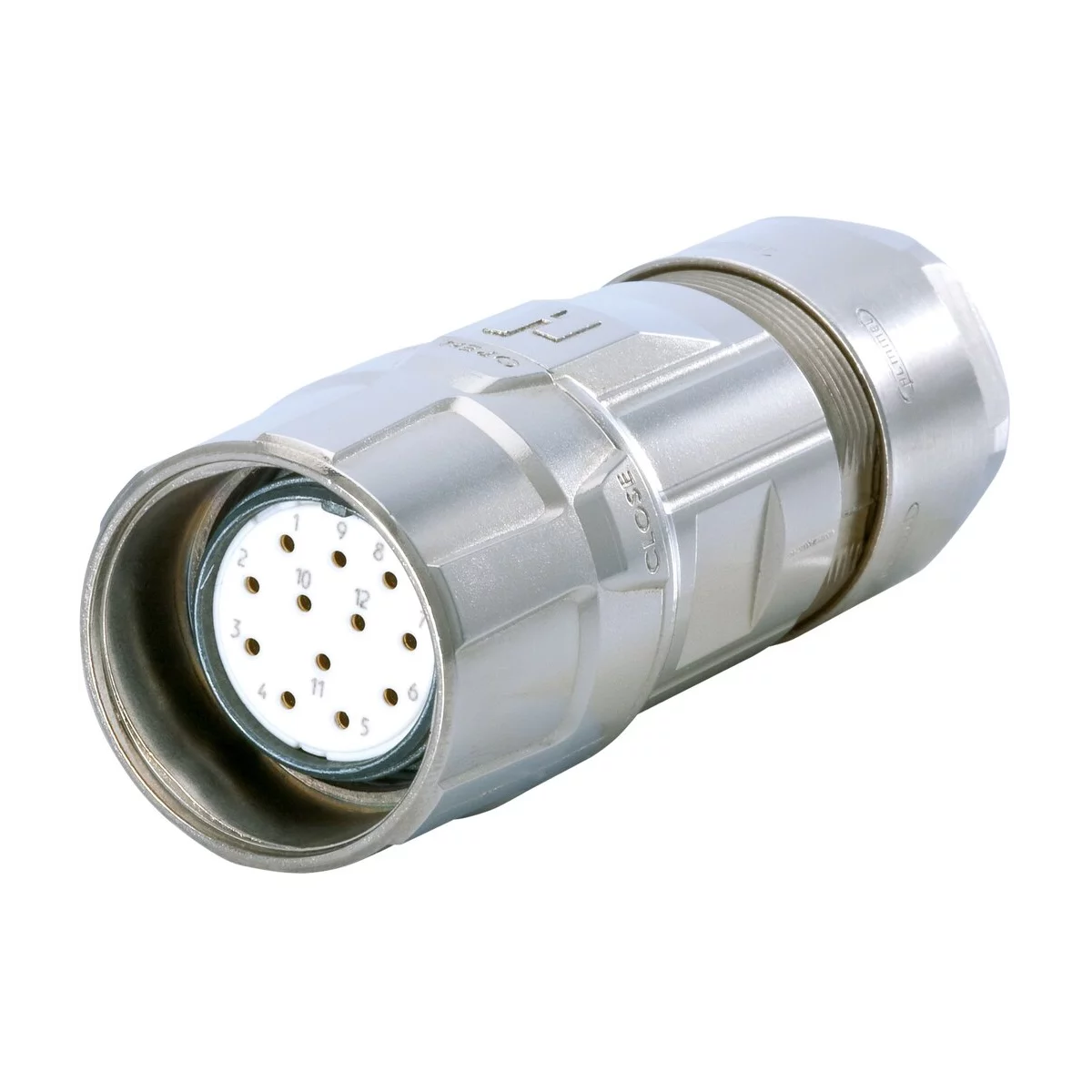

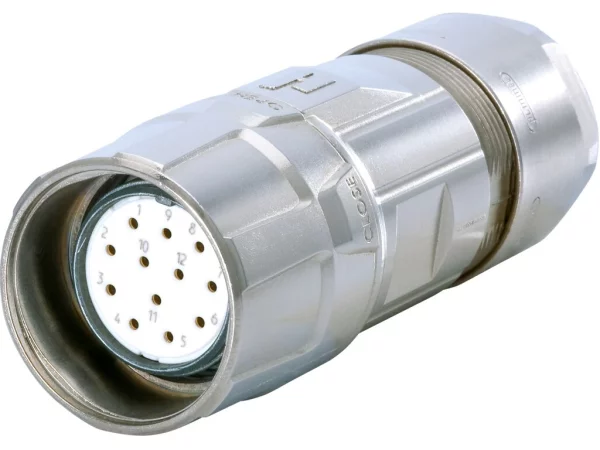

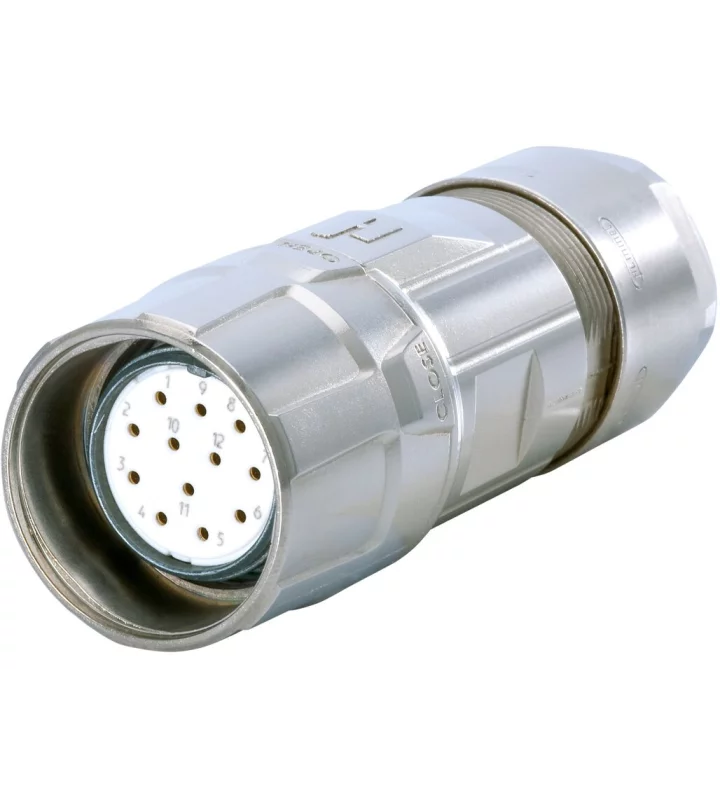

Twilock, Straight Connector, Female Thread
7.166.500.000
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Signal |
|---|---|
| Gender of required insert | Male/Female |
| Connector diameter | 28 mm |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | >1000 |
| Cable diameter | 7 - 12 mm |
Material
| Housing material | Copper-Zinc alloy, Die casting |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| 7.166.400.000 | 3 - 7 mm | 3 - 7 mm |
| 7.166.600.000 | 11 - 17 mm | 11 - 17 mm |
