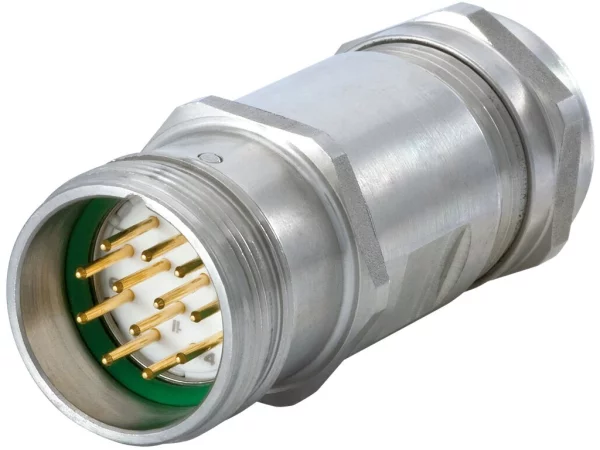

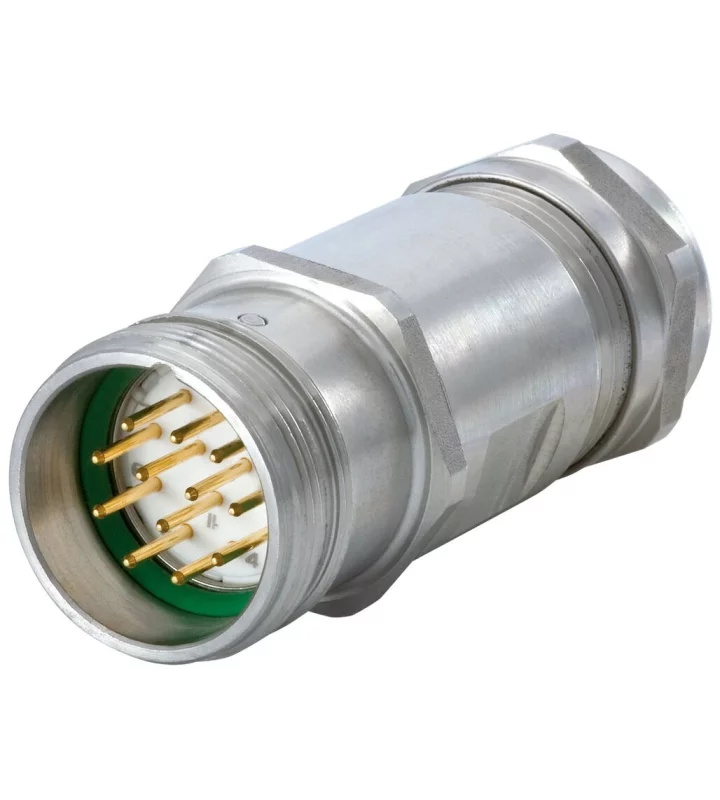

Straight Connector, Male Thread
Stainless Steel
7.240.500.000
Stel je connector verder samen
Voeg de gewenste inserts toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Signal |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Cable diameter | 7 - 12 mm |
Material
| Housing material | Copper-Zinc alloy, Die casting |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| 7.240.300.000 | 3 - 7 mm | 3 - 7 mm |
| 7.240.400.000 | 5 - 10 mm | 5 - 10 mm |
| 7.240.600.000 | 10 - 14 mm | 10 - 14 mm |
