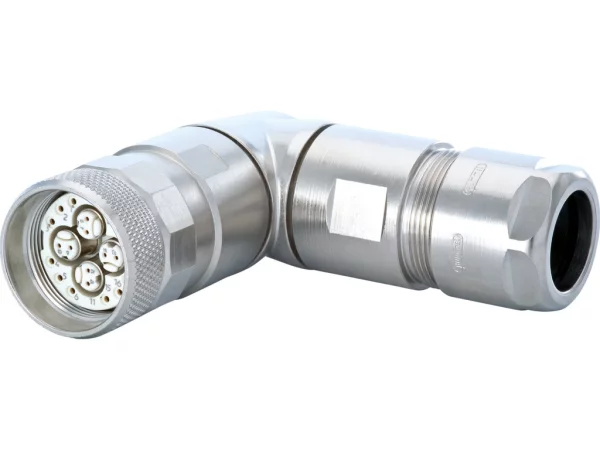

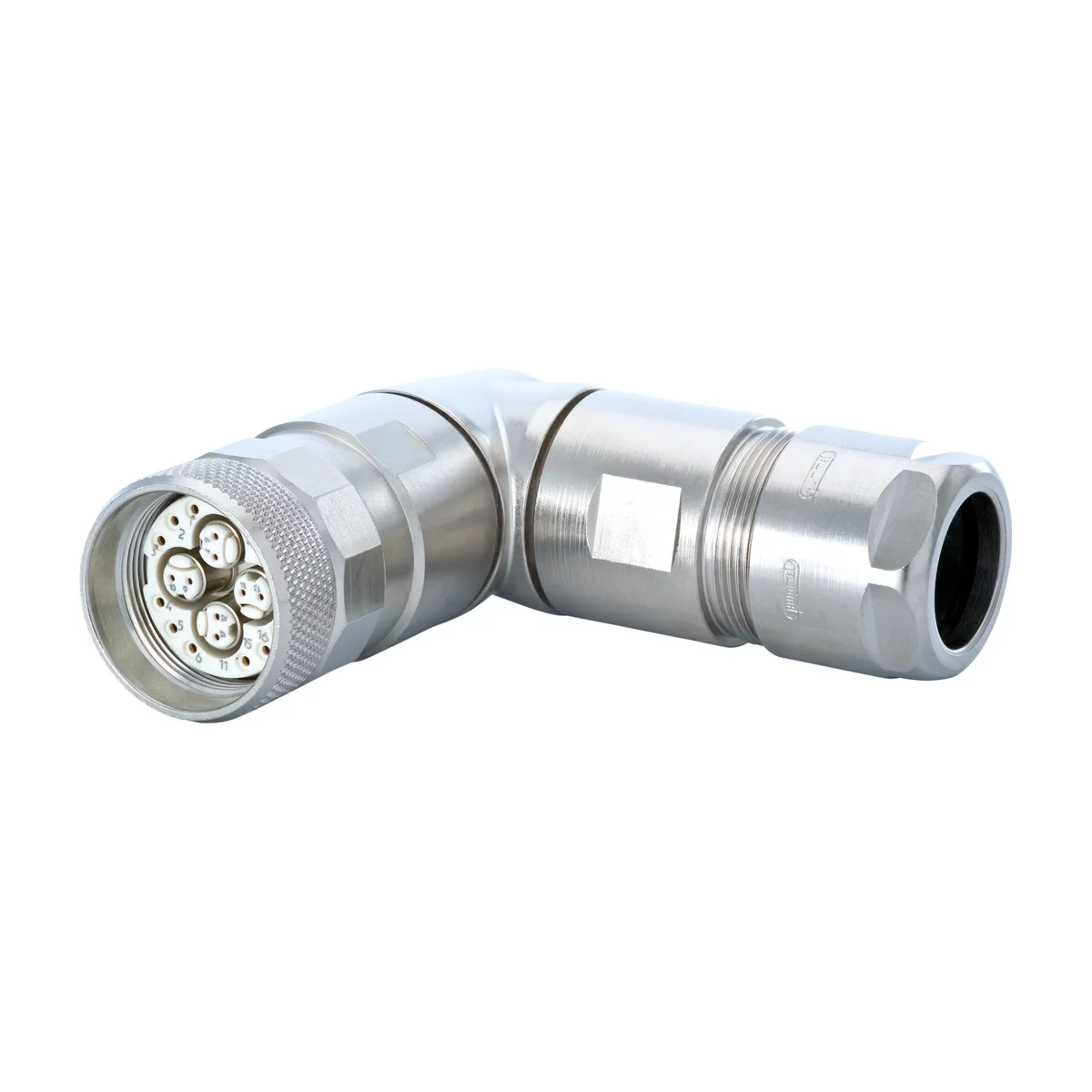

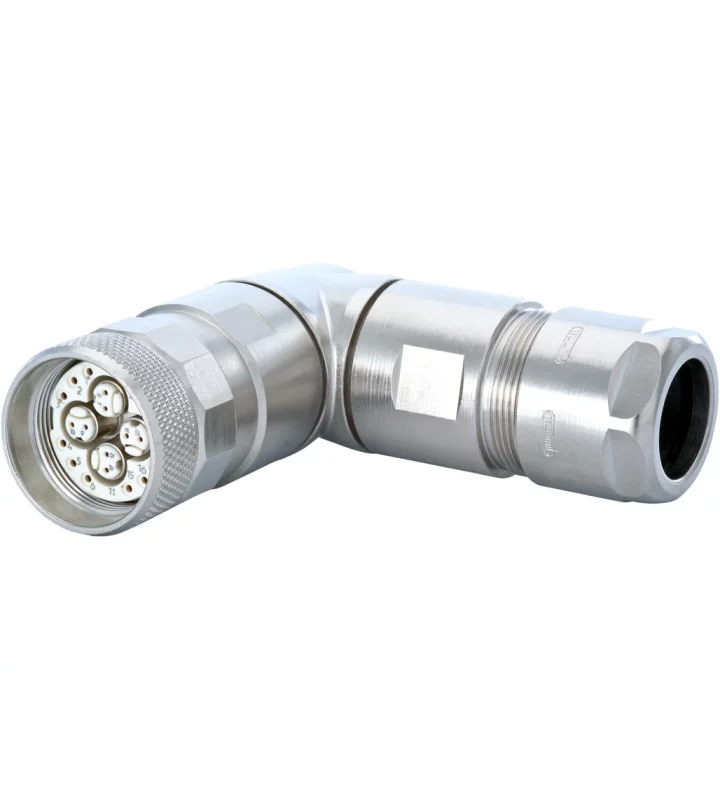

Right Angle Connector, Female Thread
Rotating
7.308.600.000
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Fast Ethernet |
|---|---|
| Gender of required insert | Male/Female |
| Connector diameter | 27 mm |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67 |
| Mating cycles | >1000 |
| Cable diameter | 11-17 mm |
Material
| Housing material | Copper-Zinc alloy/ Die casting |
|---|---|
| Housing plating | Nickel plated |
