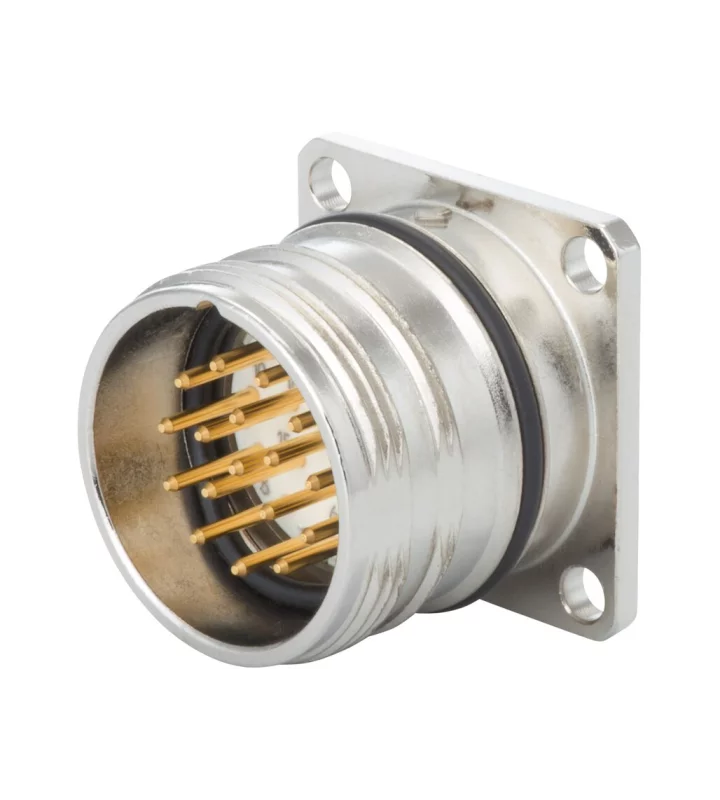

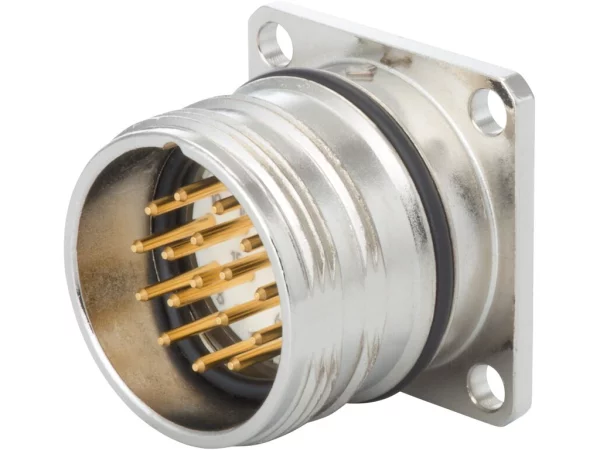

Twilock-S, Panel Connector, Male Thread
Front Mounting
7.410.000.00S
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Signal |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Size flange | 25x25 mm |
| Remark 1 | Compatible with Speedtec |
Material
| Housing material | Copper-Zinc alloy, Die casting |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number | Size flange |
|---|---|
| 7.410.100.00S | 28x28 mm |
