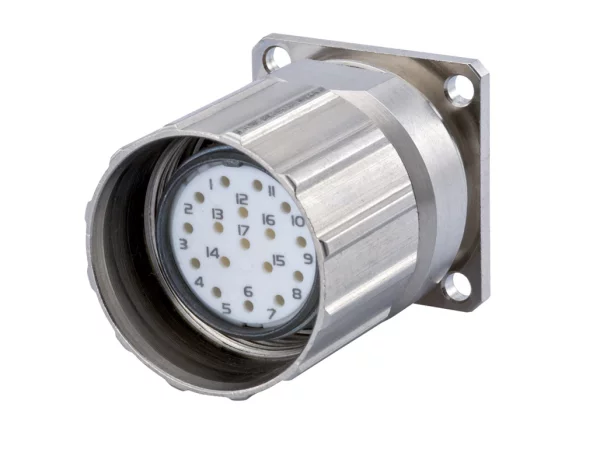

Panel Connector, Female Thread
with knurled Nut
with coding option
7.449.000.000
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Signal |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Holes | 4 holes Ø 2,7 mm |
| Remark 1 | Optional: Flat gasket |
Material
| Housing material | Copper-Zinc alloy, Die casting |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number | Holes |
|---|---|
| 7.448.000.000 | 4 holes Ø 3,2 mm |
