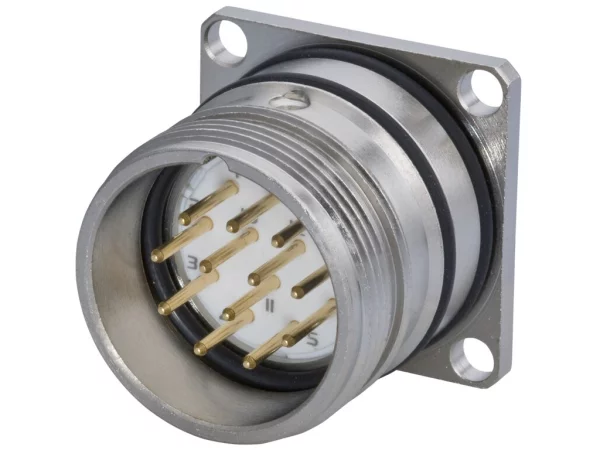

Twilock, Panel Connector, Male Thread
Rear Mounting
with anti-vibration O-Ring
7.460.000.000
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Signal |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Remark 1 | Optional: Flat gasket |
Material
| Housing material | Copper-Zinc alloy, Die casting |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number |
|---|
| 7.462.000.000 |
| 7.464.000.000 |
| 7.466.000.000 |
