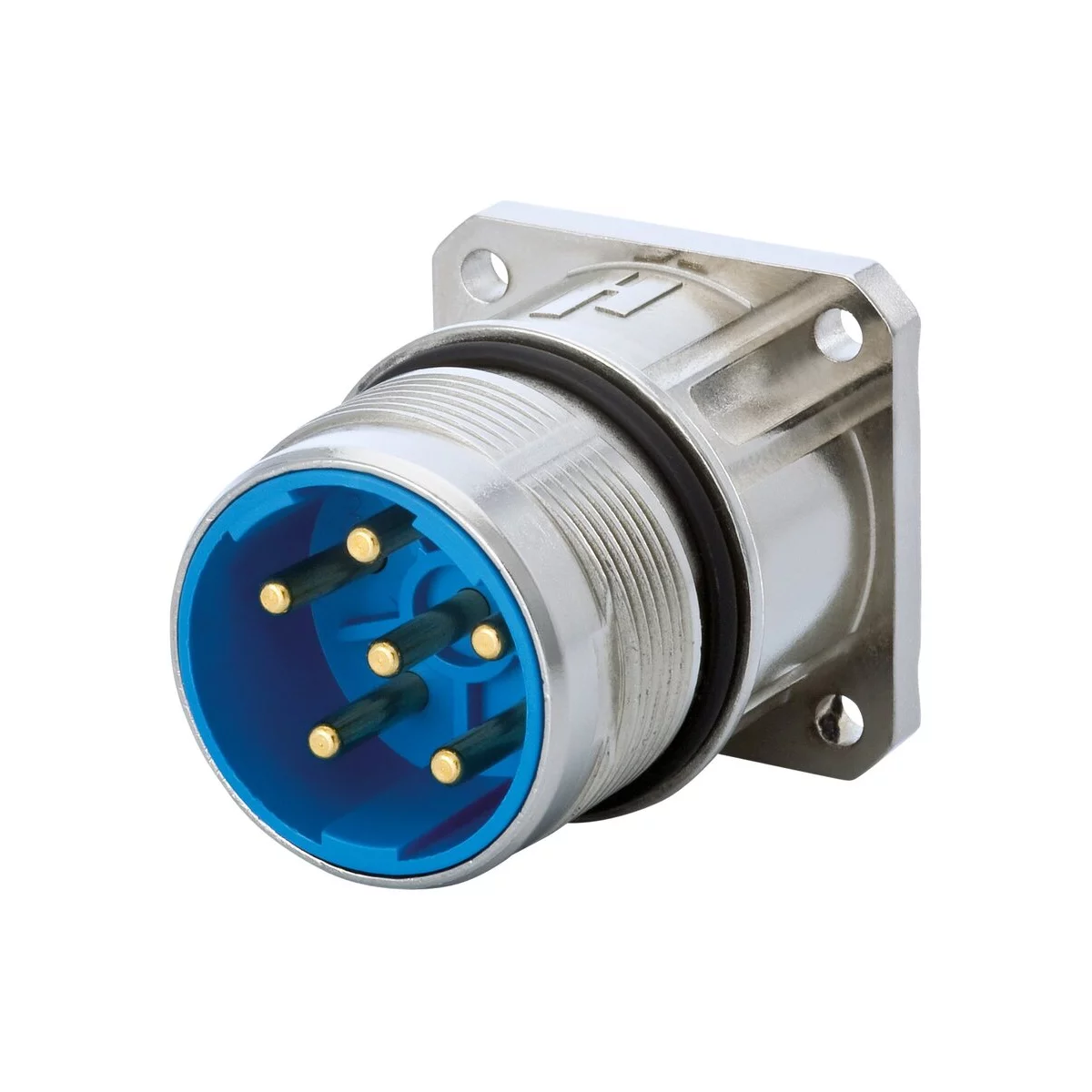

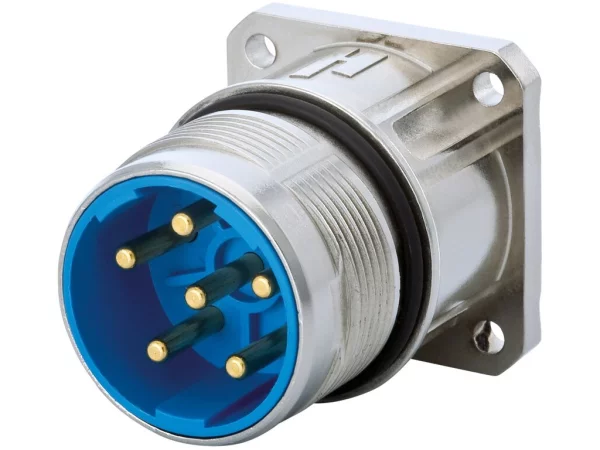

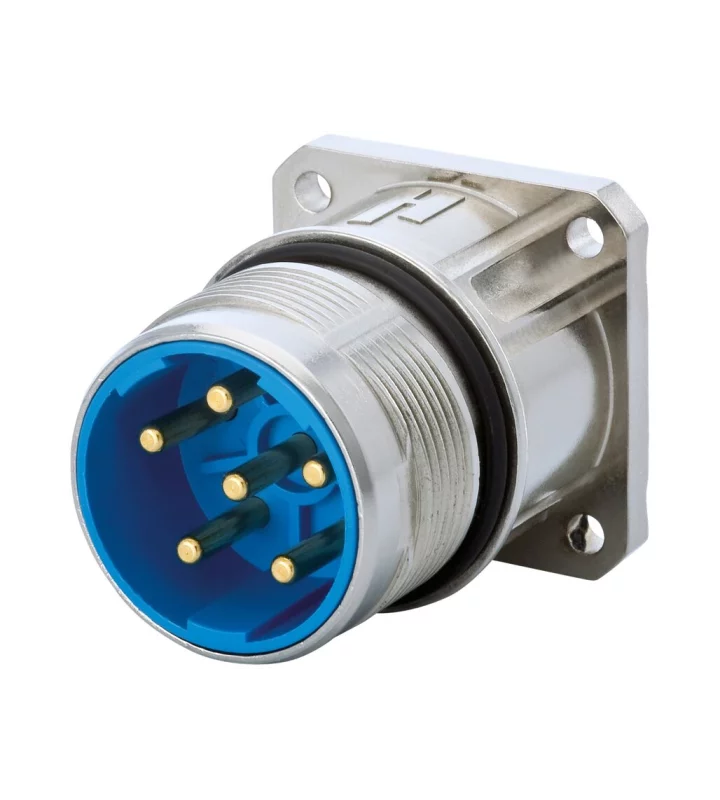

Twilock-S, Panel Connector, Male Thread
Front Mounting
7.601.000.00S
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Power |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | >1000 |
| Holes | 4 holes Ø 3,2 mm |
| Remark 1 | Compatible with Speedtec |
Material
| Housing material | Copper-Zinc alloy/ Die casting |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number | Housing thread | Upper temperature | Holes |
|---|---|---|---|
| 7.605.000.00S | +125 °C | 4 holes Ø 2,7 mm |
