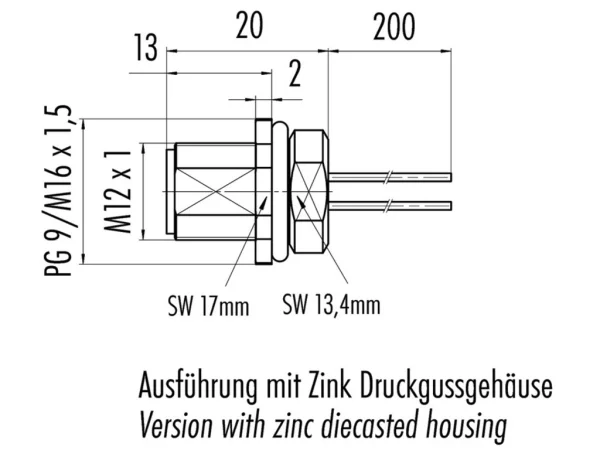

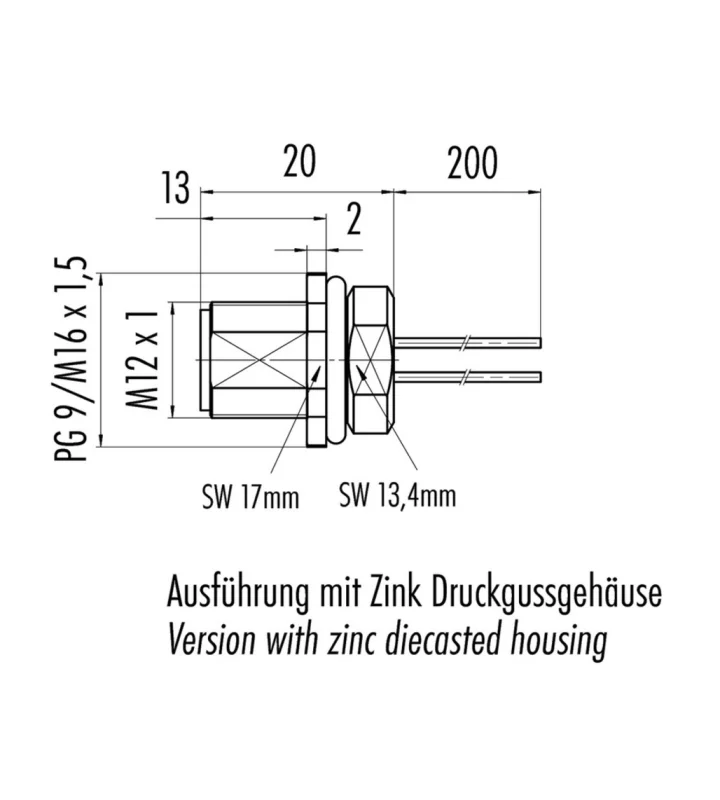

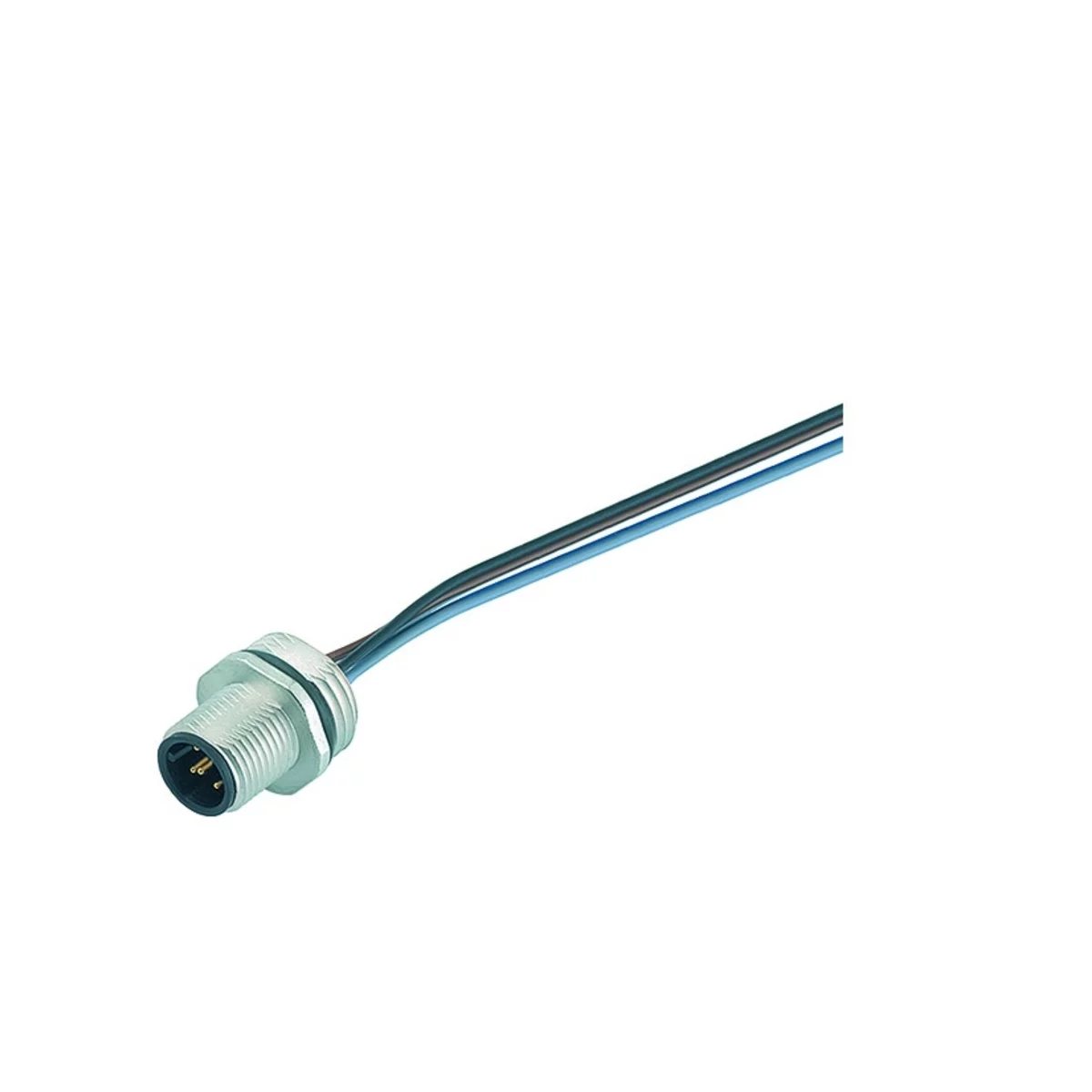

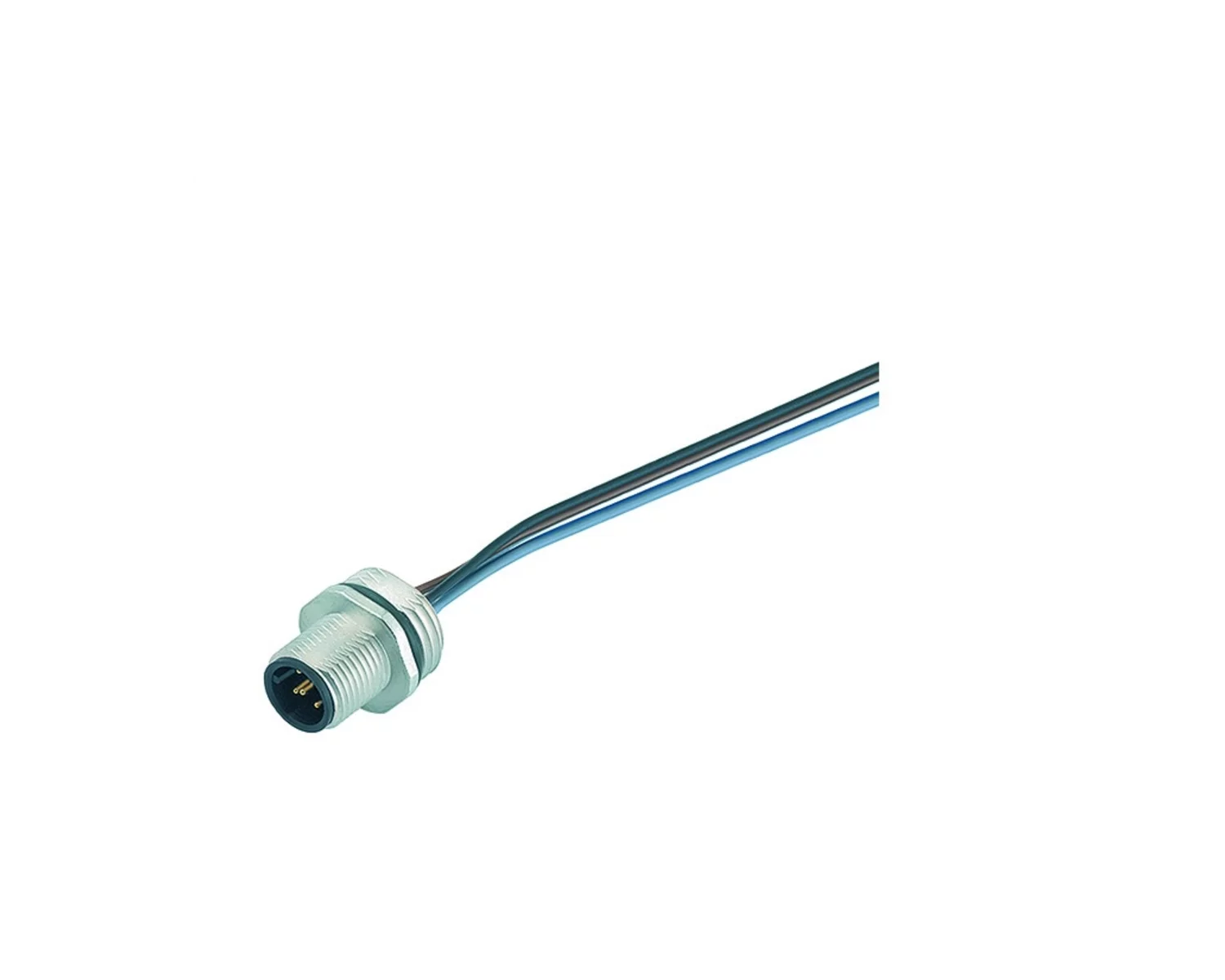

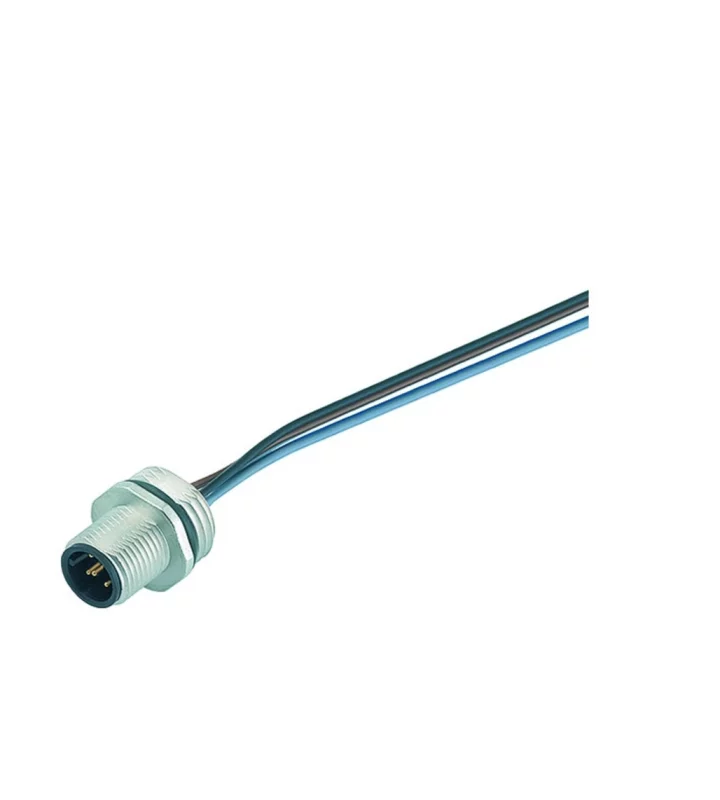

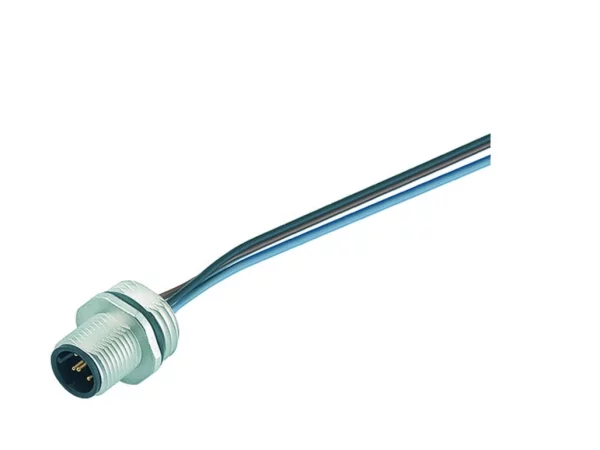

Male socket
With single wires, 0,25mm²
76 0133 0011 00105 0200
09 4441 00 05
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-B |
|---|---|
| Series | Sensor |
| Subseries | 715-766 |
| Gender | Male |
| Number of contacts | 5 |
| Contact terminal | Single wires |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-B) |
| Mating cycles | >100 |
| Connector Diameter | 13 mm |
| Wire-section | 0.25 mm² |
| Fixing thread | PG 9 |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Zinc diecasting nickel plated, stainless steel 1.4404 |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
