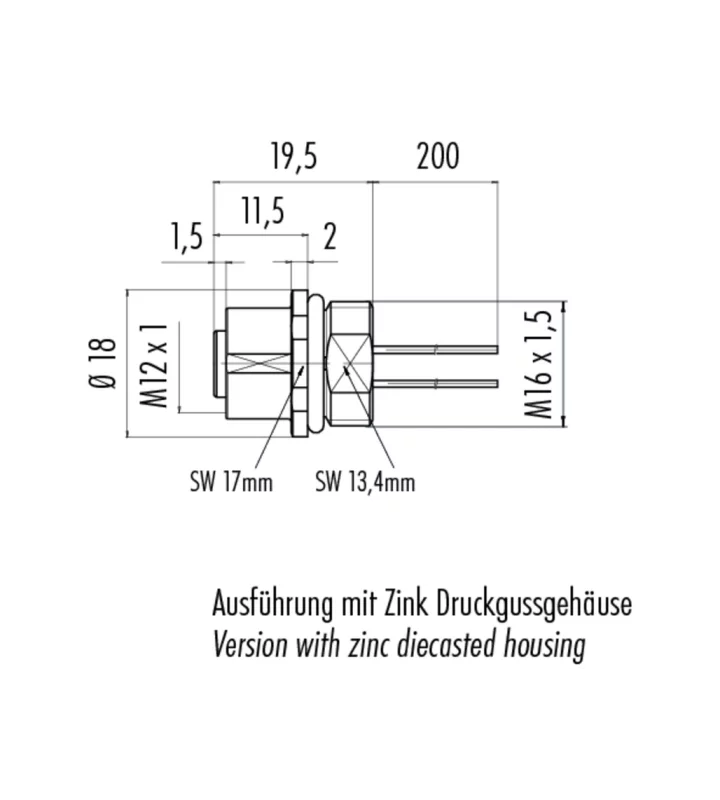

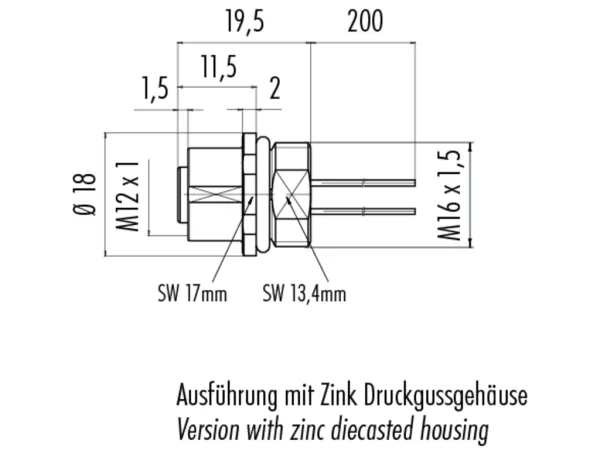

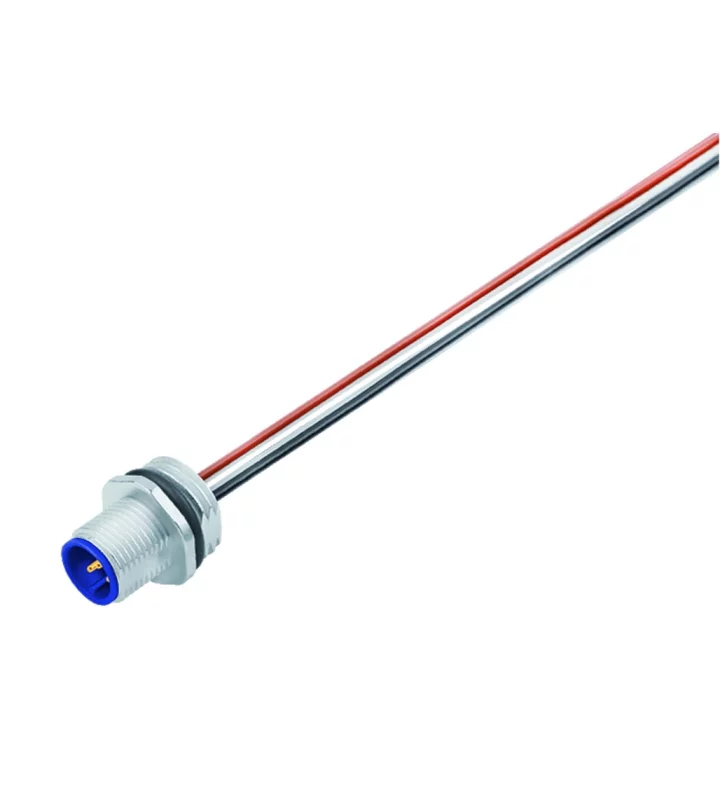

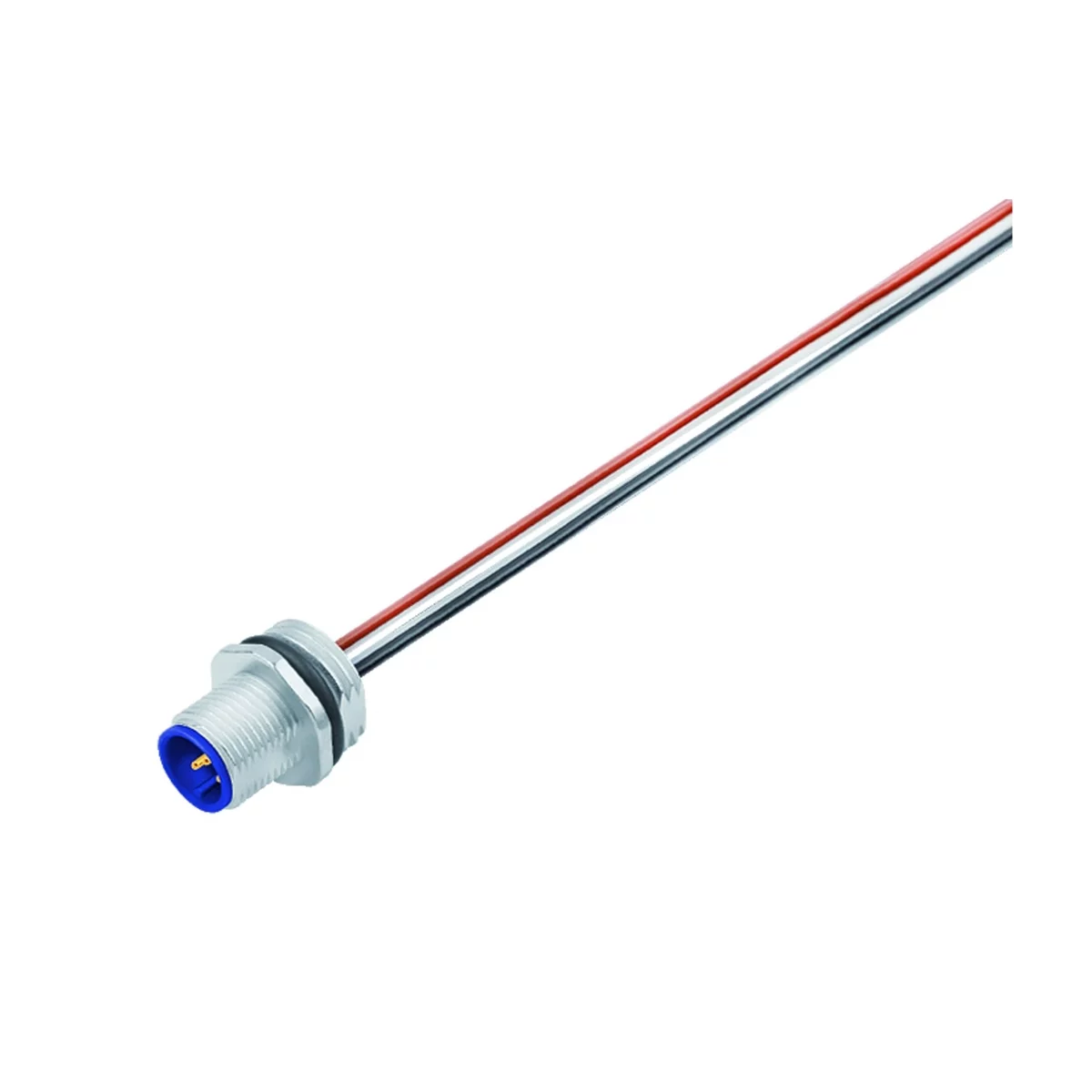

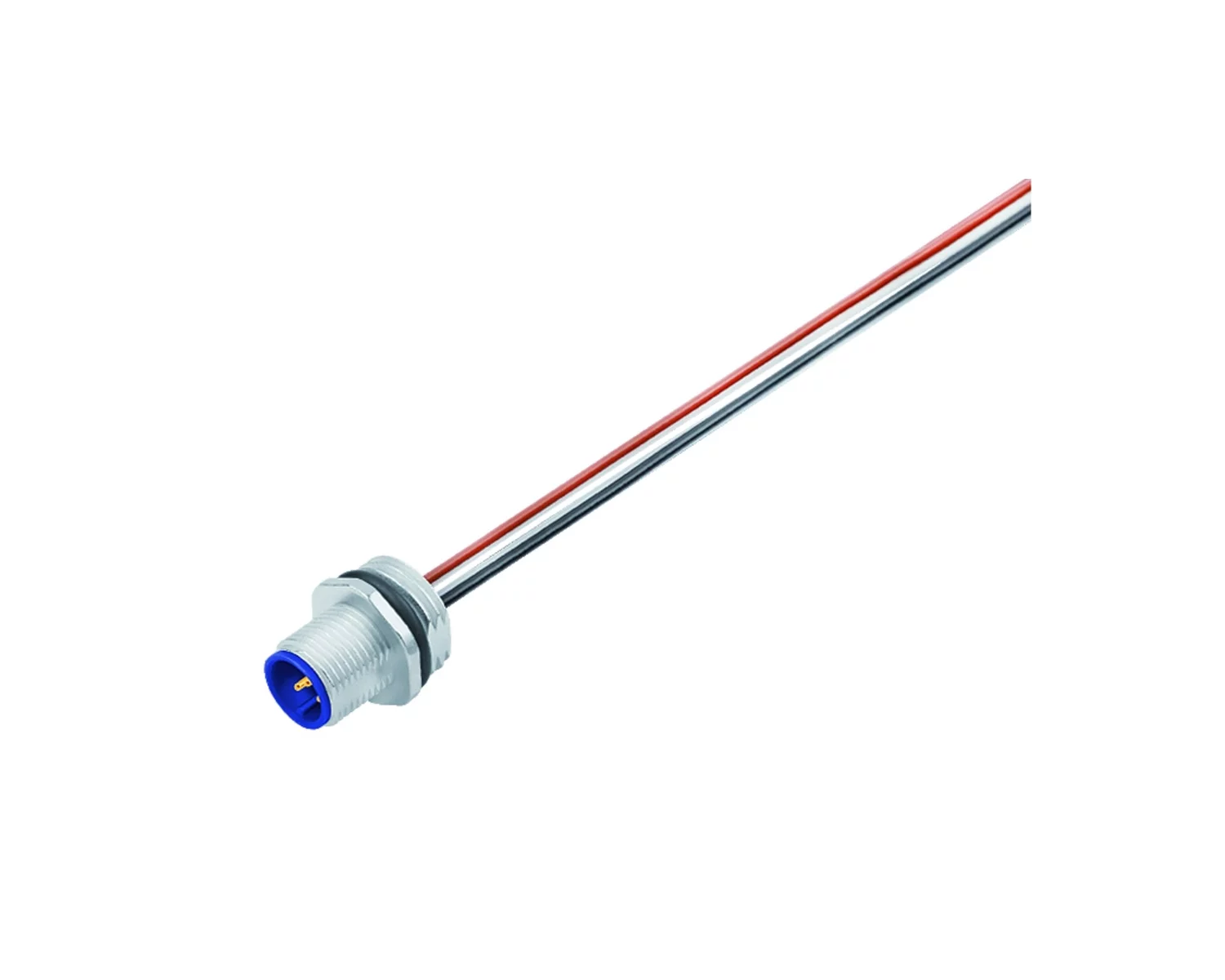

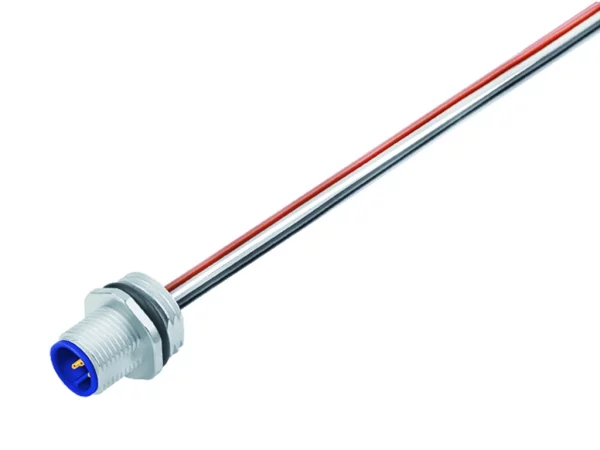

Male panel mount connector
With single wires, 0,25mm², with colour coded contact inserts
UL-approval
76 0231 0011 00604 0200
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Single wires |
| Color | Blue |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >50 |
| Connector Diameter | 18 mm |
| Wire-section | 0.25 mm² |
| Fixing thread | M16 x 1,5 |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | brass/zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Color | IP Protection | Protection degree | Nominal Voltage | Mating cycles |
|---|---|---|---|---|---|---|---|---|
| 76 0231 0011 00004 0200 | 4 | 250 V | 2500 V | Black | IP67 | IP67 | >200 - ≤400 V | >50 |
| 76 0231 0011 00104 0200 | 4 | 250 V | 2500 V | Purple | IP67 | IP67 | >200 - ≤400 V | >50 |
| 76 0231 0011 00204 0200 | 4 | 250 V | 2500 V | Orange | IP67 | IP67 | >200 - ≤400 V | >50 |
| 76 0231 0011 00304 0200 | 4 | 250 V | 2500 V | Yellow | IP67 | IP67 | >200 - ≤400 V | >50 |
| 76 0231 0011 00404 0200 | 4 | 250 V | 2500 V | Green | IP67 | IP67 | >200 - ≤400 V | >50 |
| 76 0231 0011 00504 0200 | 4 | 250 V | 2500 V | Red | IP67 | IP67 | >200 - ≤400 V | >50 |
| 76 0231 0011 00005 0200 | 5 | 125 V | 1500 V | Black | IP68 | IP68 | ≤200 V | >100 |
| 76 0231 0011 00105 0200 | 5 | 125 V | 1500 V | Purple | IP68 | IP68 | ≤200 V | >100 |
| 76 0231 0011 00205 0200 | 5 | 125 V | 1500 V | Orange | IP68 | IP68 | ≤200 V | >100 |
| 76 0231 0011 00305 0200 | 5 | 125 V | 1500 V | Yellow | IP68 | IP68 | ≤200 V | >100 |
| 76 0231 0011 00405 0200 | 5 | 125 V | 1500 V | Green | IP68 | IP68 | ≤200 V | >100 |
| 76 0231 0011 00505 0200 | 5 | 125 V | 1500 V | Red | IP68 | IP68 | ≤200 V | >100 |
| 76 0231 0011 00605 0200 | 5 | 125 V | 1500 V | Blue | IP68 | IP68 | ≤200 V | >100 |
