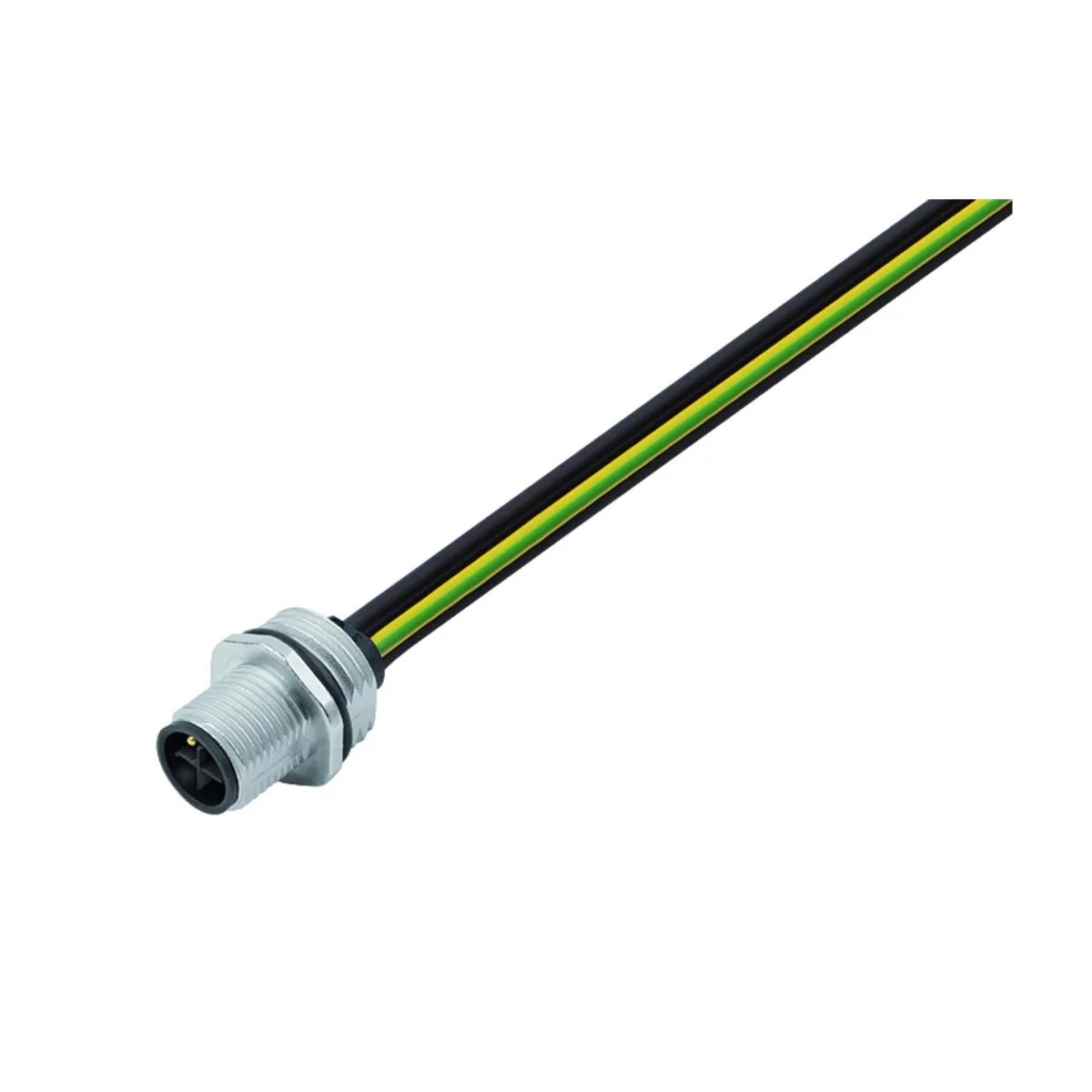

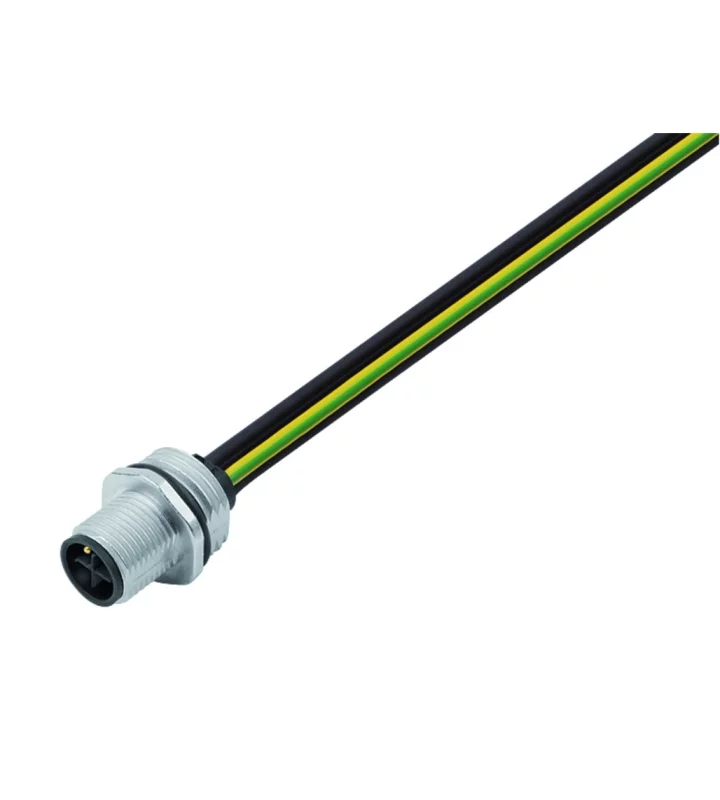

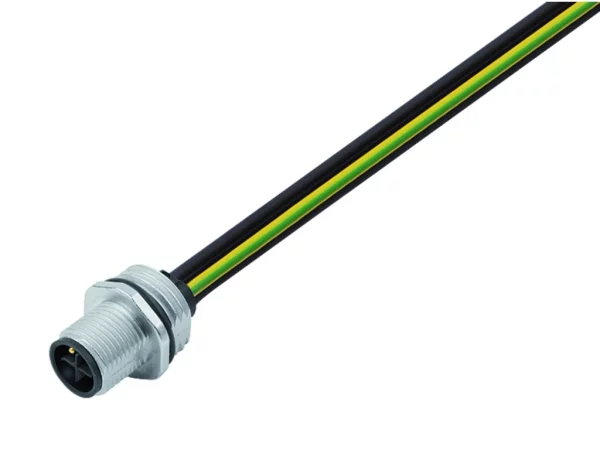

Male panel mount connector
Power, S-coding
Single wires, UL-approval
76 0241 0136 00034 0200
09 0691 700 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-S |
|---|---|
| Series | Power |
| Subseries | 814 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Single wires |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-S) |
| Mating cycles | >50 |

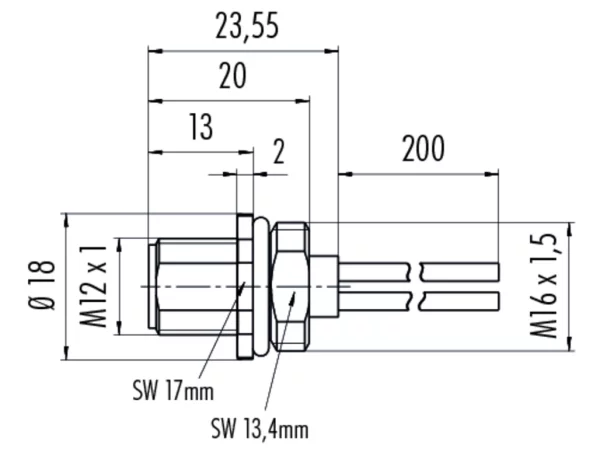

| Connector Diameter | 18 mm |
| Fixing thread | M16 x 1,5 |
Electrical parameters
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 630 V |
| Impuls voltage | 6000 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
