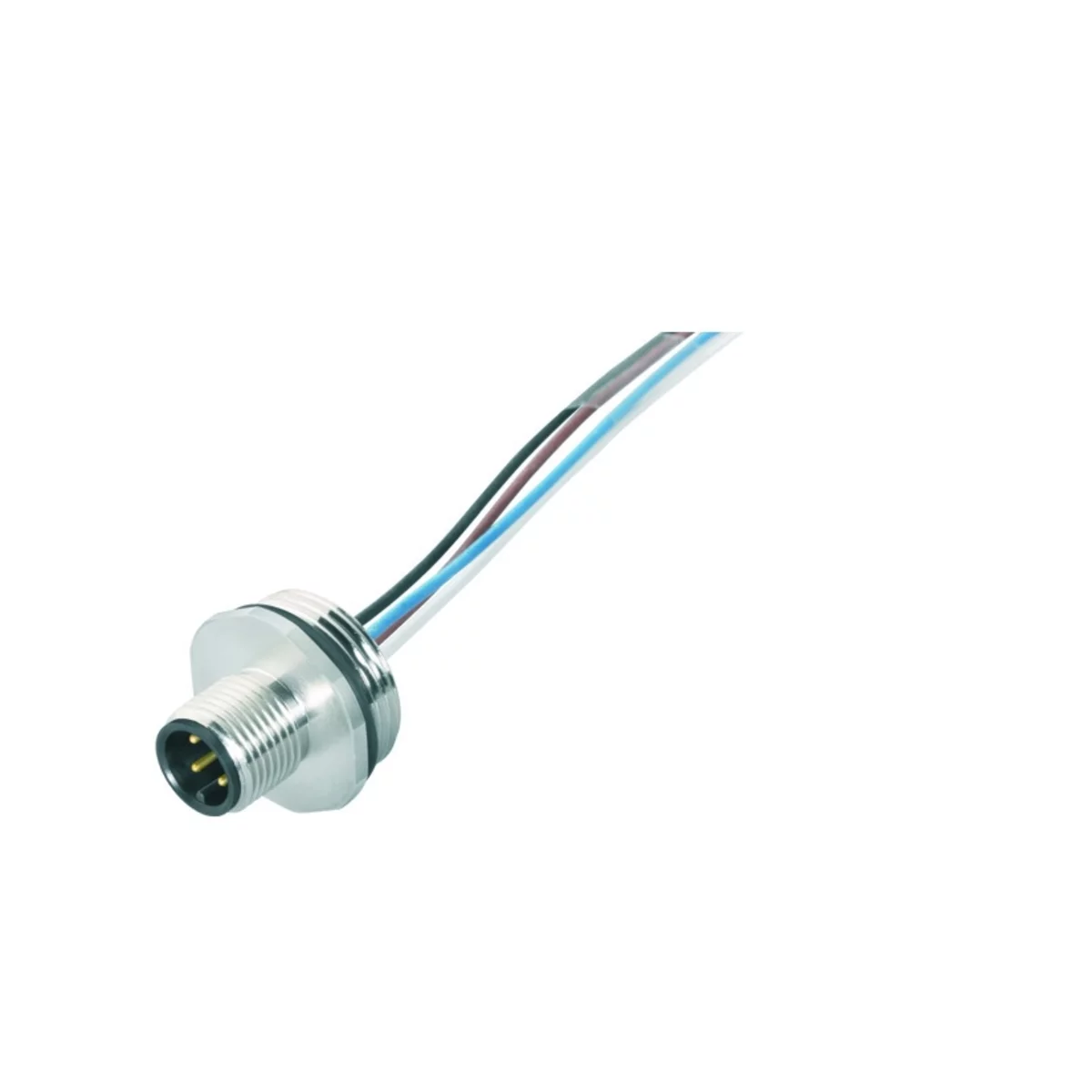

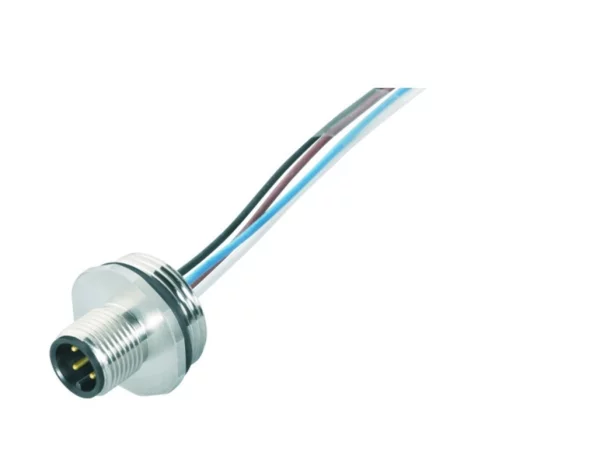

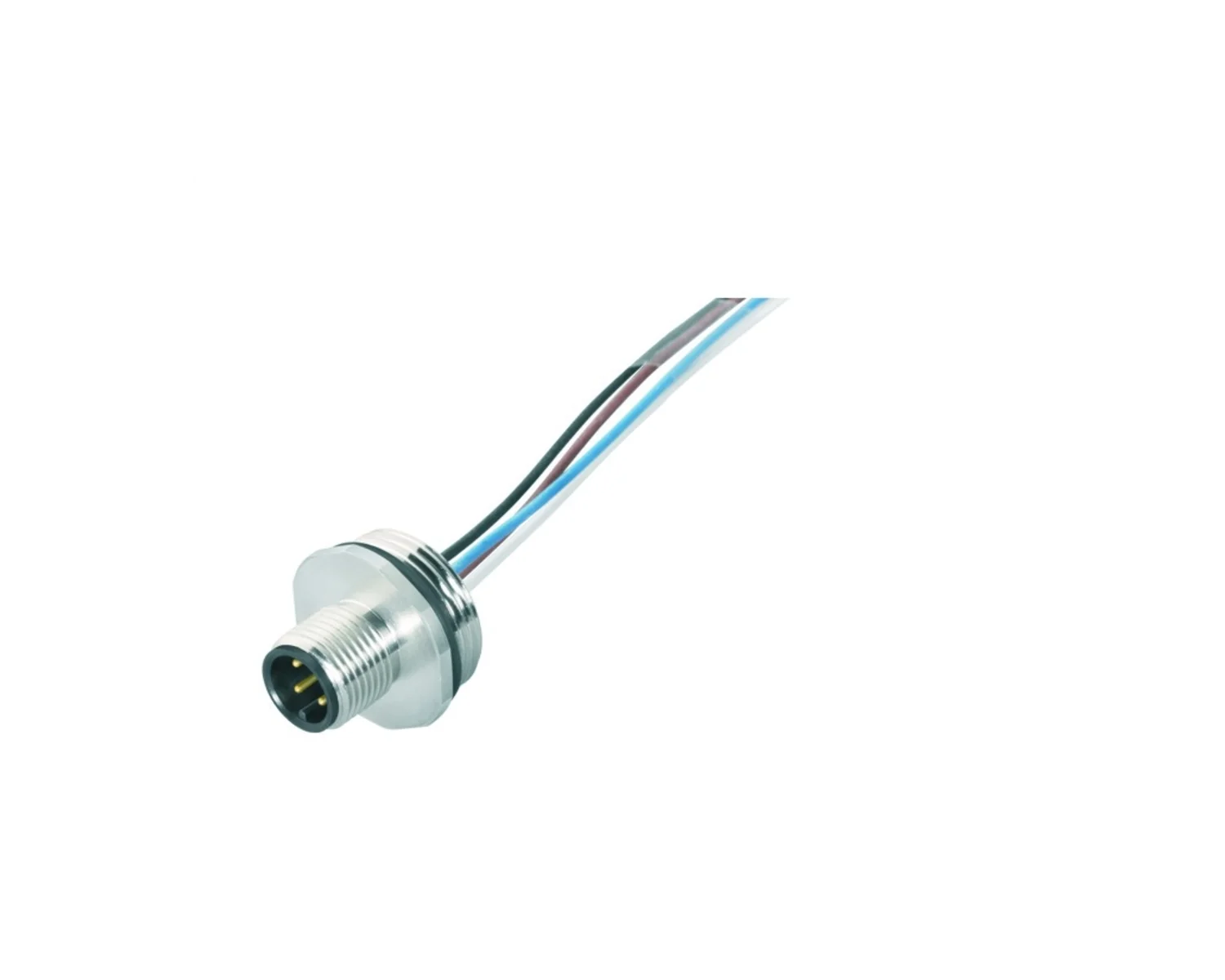

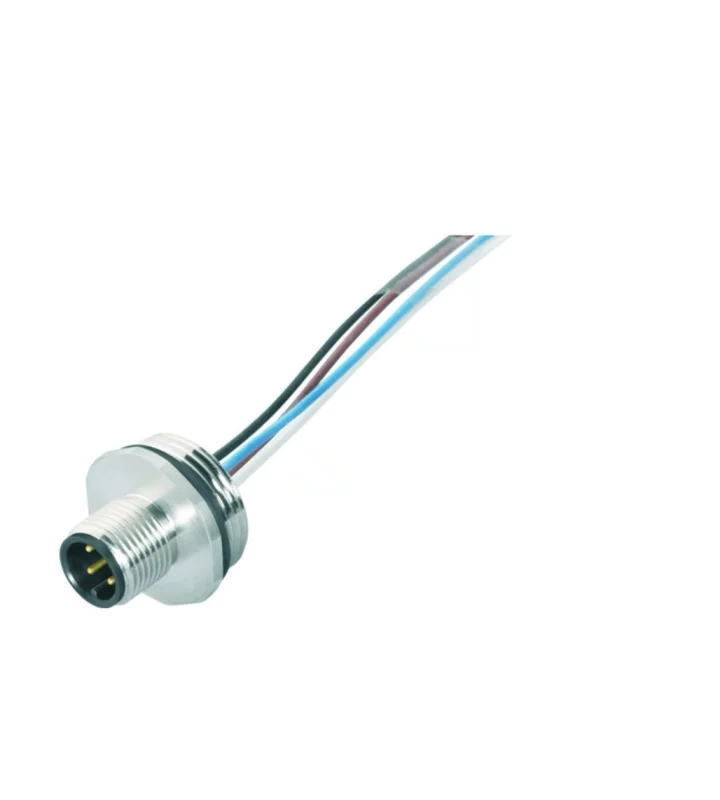

Male panel mount connector
With single wires, 0,25mm²
76 0431 0111 00005 0200
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Male |
| Number of contacts | 5 |
| Contact terminal | Single wires |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |

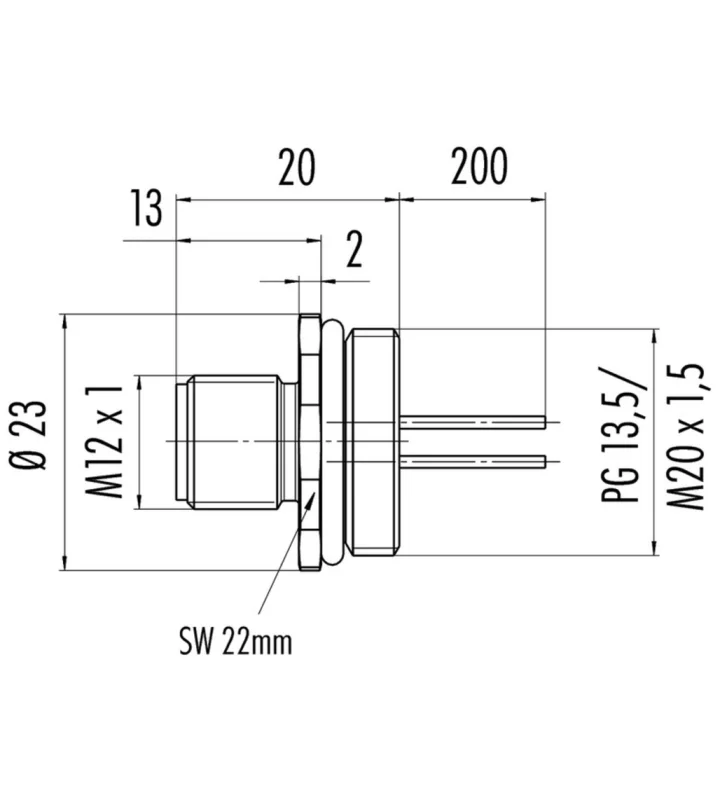

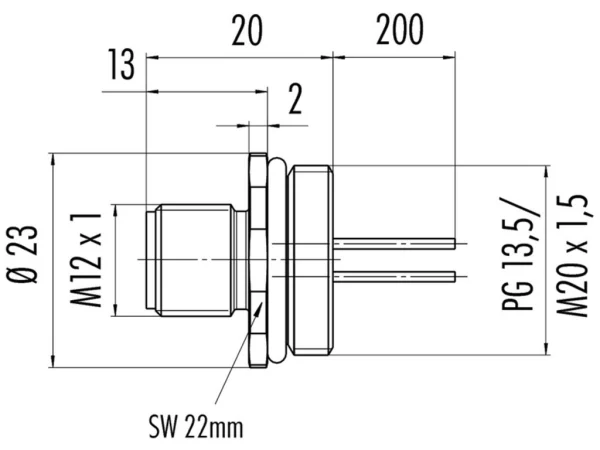

| Connector Diameter | 23 mm |
| Wire-section | 0.25 mm² |
| Fixing thread | M20 x 1,5 |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | brass/zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Fixing thread |
|---|---|---|---|---|---|
| 76 0331 0111 00004 0200 | 4 | 250 V | 2500 V | >200 - ≤400 V | PG 13,5 |
| 76 0431 0111 00004 0200 | 4 | 250 V | 2500 V | >200 - ≤400 V | M20 x 1,5 |
| 76 0331 0111 00005 0200 | 5 | 60 V | 1500 V | ≤200 V | PG 13,5 |
| 76 0331 0111 00008 0200 | 8 | 30 V | 800 V | ≤200 V | PG 13,5 |
| 76 0431 0111 00008 0200 | 8 | 30 V | 800 V | ≤200 V | M20 x 1,5 |
