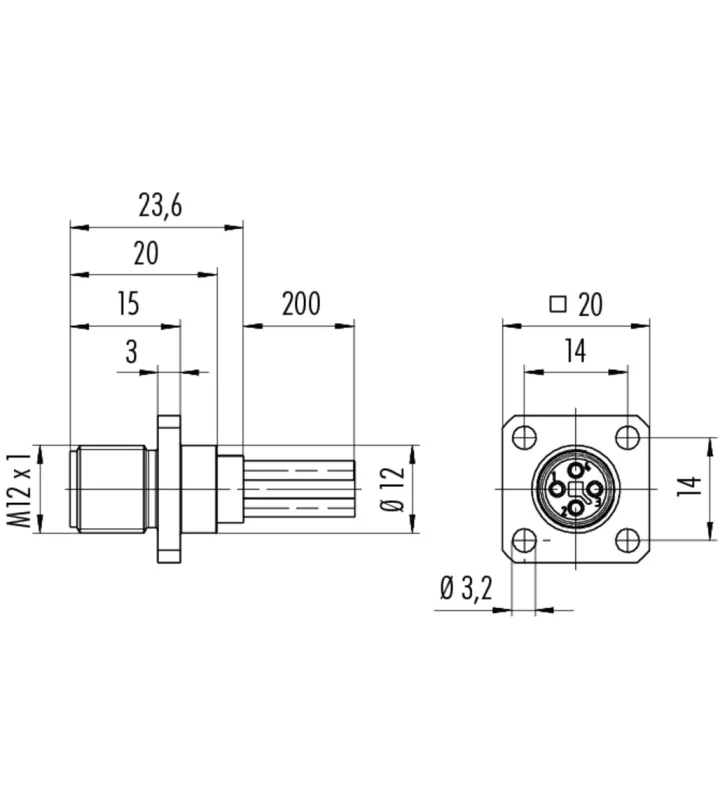

Male panel mount connector
Square flange
UL-approval
76 0939 0115 00044 0200
09 0631 070 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-T |
|---|---|
| Series | Power |
| Subseries | 813 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Single wires |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-T) |
| Connector Diameter | 22.2 mm |
Electrical parameters
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 63 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
