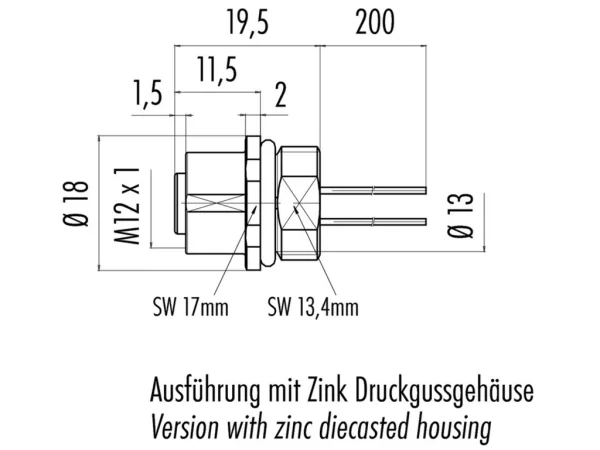

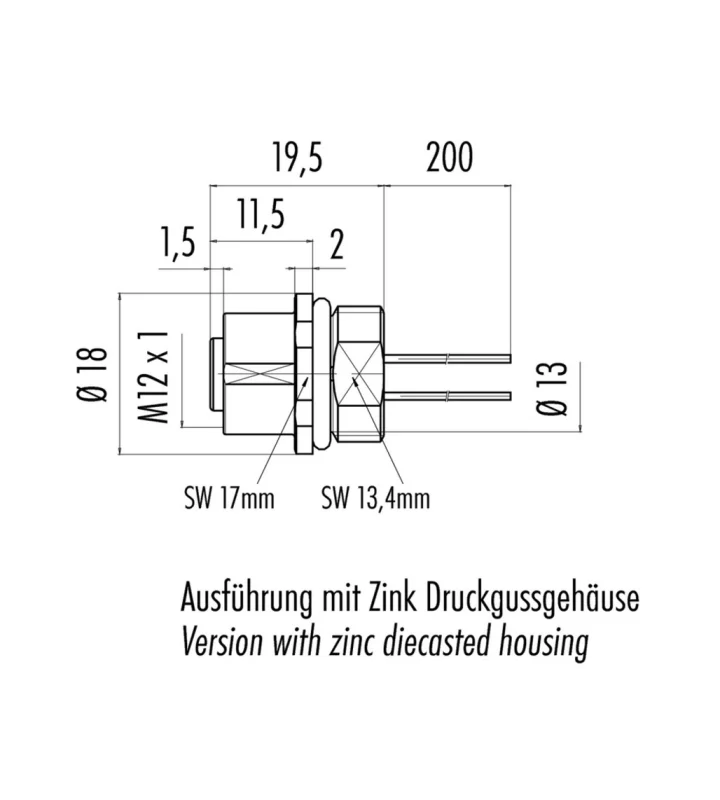

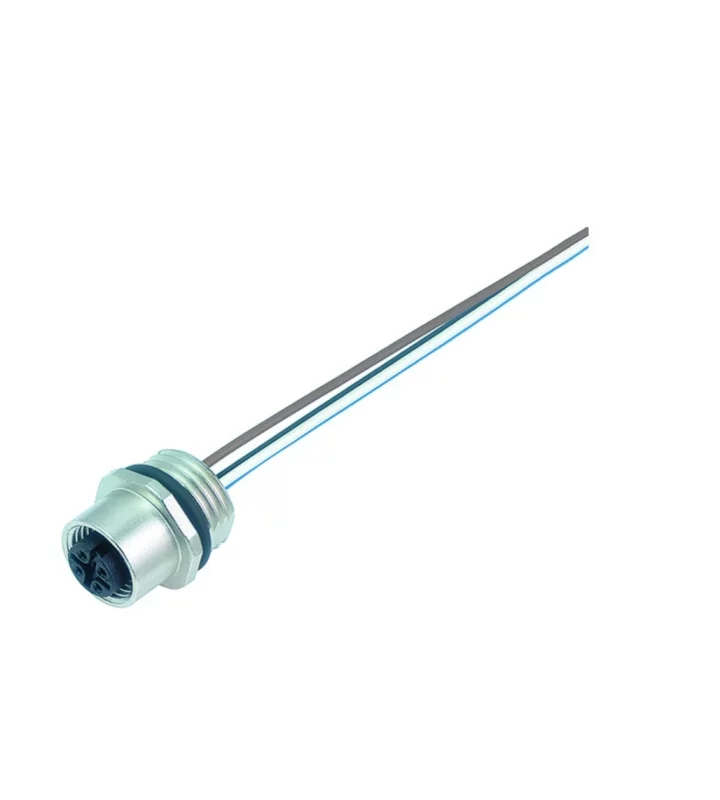

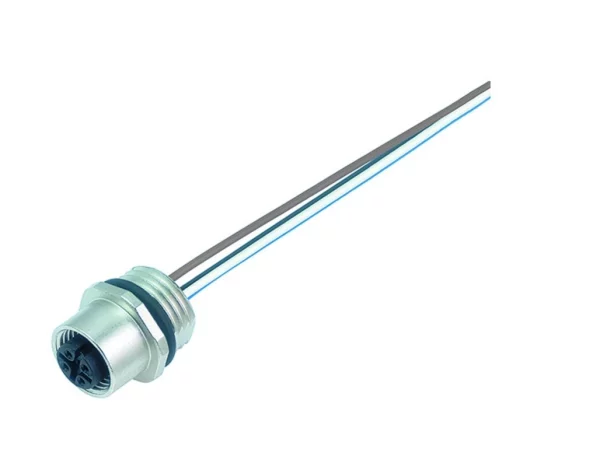

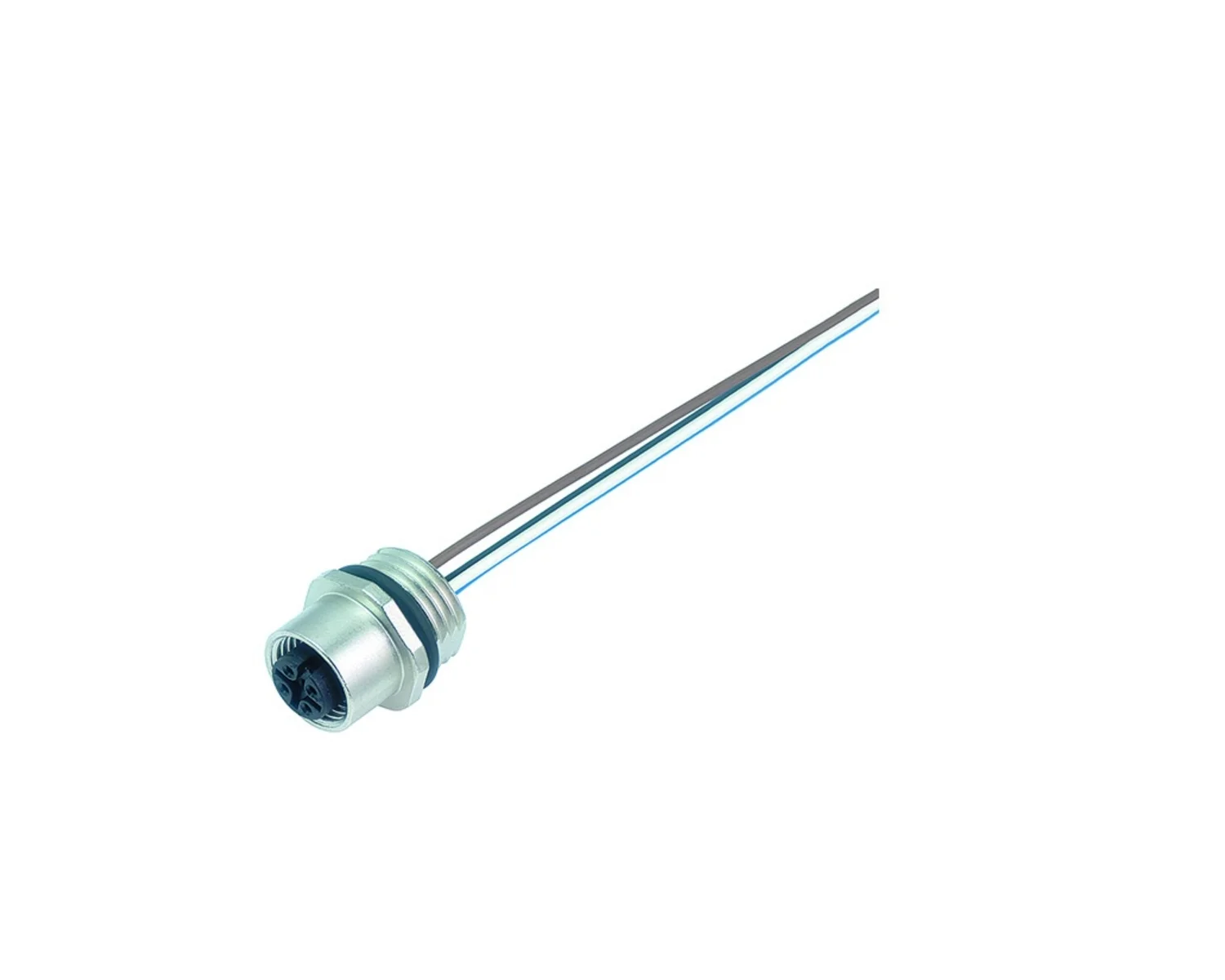

Female panel mount connector
With single wires, 0,14mm²/0,25mm²
76 2132 0111 00005 0200
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Single wires |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 18 mm |
| Wire-section | 0.25 mm² |
| Fixing thread | PG 9 VA/stainless steel |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Stainless steel |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Material of housing | Nominal Voltage | Wire-section | Fixing thread |
|---|---|---|---|---|---|---|---|
| 76 0132 0011 00004 0200 | 4 | 250 V | 2500 V | Zinc diecasting nickel plated | >200 - ≤400 V | 0.25 mm² | PG 9 |
| 76 2132 0111 00004 0200 | 4 | 250 V | 2500 V | Zinc diecasting nickel plated | >200 - ≤400 V | 0.25 mm² | PG 9 VA/stainless steel |
| 76 2232 0111 00004 0200 | 4 | 250 V | 2500 V | Zinc diecasting nickel plated | >200 - ≤400 V | 0.25 mm² | M16 x 1,5 VA/stainless steel |
| 76 0132 0011 00005 0200 | 5 | 125 V | 1500 V | Zinc diecasting nickel plated | ≤200 V | 0.25 mm² | PG 9 |
| 76 2232 0111 00005 0200 | 5 | 125 V | 1500 V | Stainless steel | ≤200 V | 0.25 mm² | M16 x 1,5 VA/stainless steel |
| 76 0132 0011 00008 0200 | 8 | 60 V | 800 V | Zinc diecasting nickel plated | ≤200 V | 0.25 mm² | PG 9 |
| 76 0232 0011 00008 0200 | 8 | 60 V | 800 V | Zinc diecasting nickel plated | ≤200 V | 0.25 mm² | M16 x 1,5 |
| 76 2132 0111 00008 0200 | 8 | 60 V | 800 V | Stainless steel | ≤200 V | 0.25 mm² | PG 9 VA/stainless steel |
| 76 0132 0111 00012 0200 | 12 | 30 V | 500 V | Zinc diecasting nickel plated | ≤200 V | 0.14 mm² | PG 9 |
| 76 0232 0111 00012 0200 | 12 | 30 V | 500 V | Zinc diecasting nickel plated | ≤200 V | 0.14 mm² | M16 x 1,5 |
