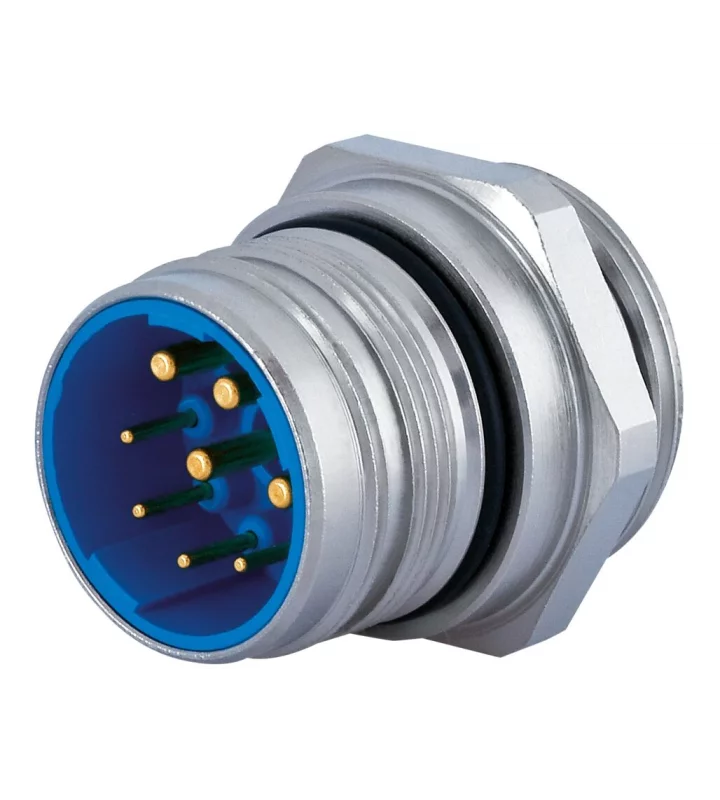

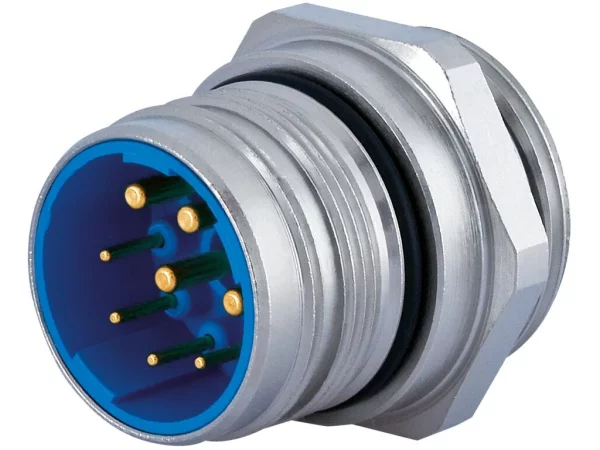

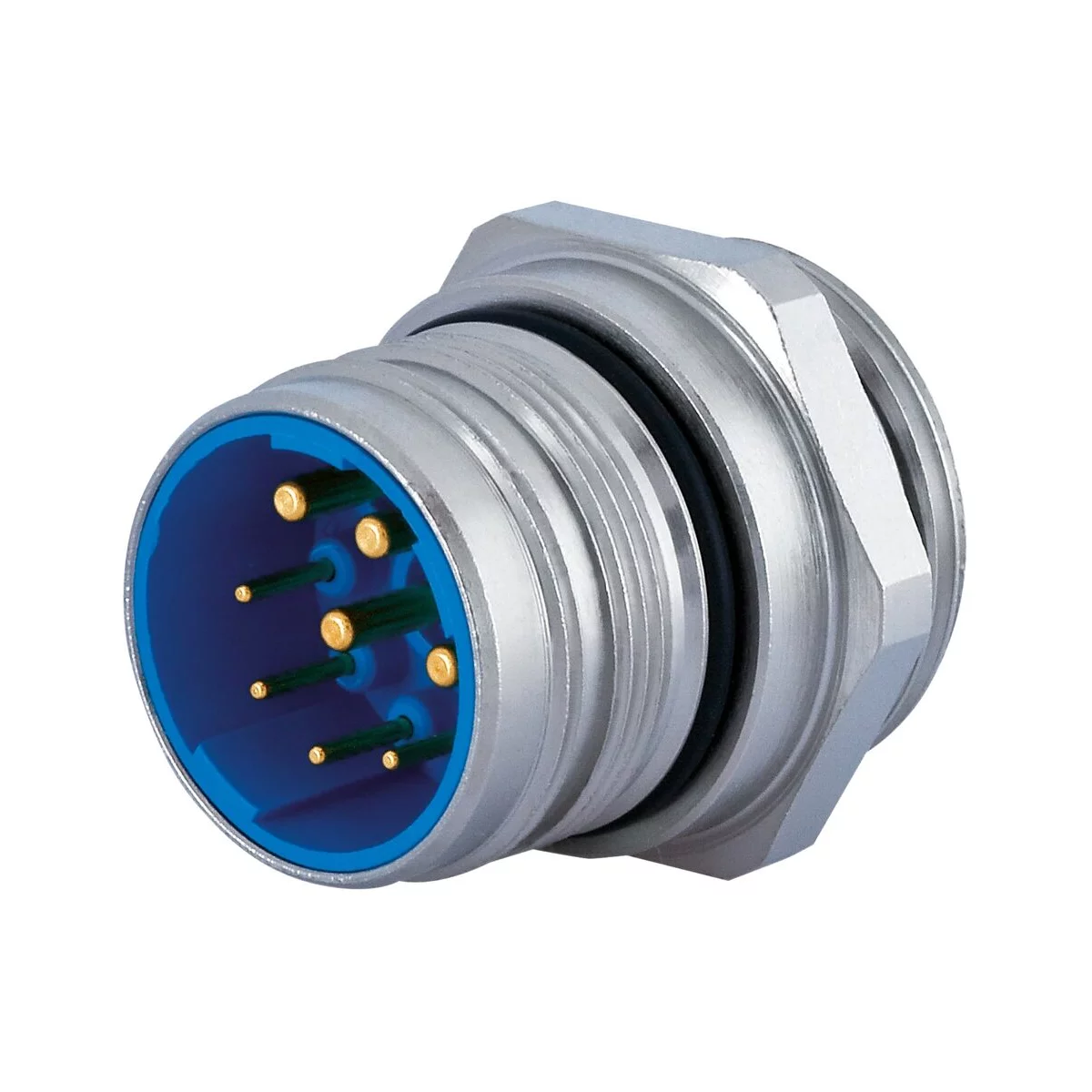

Panel Connector, Male Thread
Front Mounting
Single hole mounted, M25 x 1,5
7.626.000.000
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Power |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >1000 |
| Thread | M25 x 1,5 |
| Remark 1 | Optional: Flat gasket, jam nut M25 x 1,5 |
Material
| Housing material | Copper-Zinc alloy/ Die casting |
|---|---|
| Housing plating | Nickel plated |
