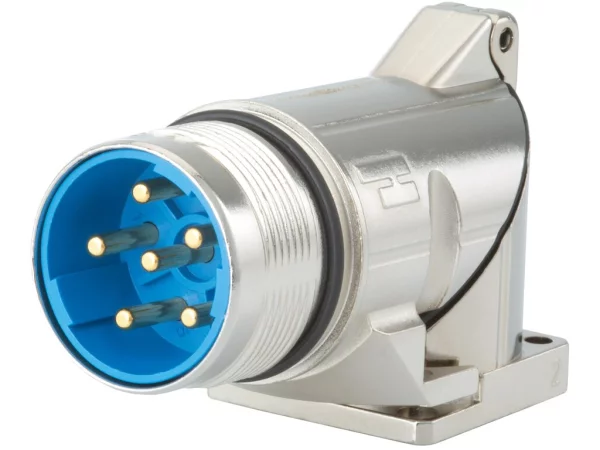

Right Angle Connector, Male Thread
7.635.000.000
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Power |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >1000 |
| Holes | 4 holes Ø 2,7 mm |
| Remark 1 | Optional: Flat gasket |
| Remark 2 | Easy fastening with M2,5 x 10 mm or #4 x .39" long screws |
Material
| Housing material | Copper-Zinc alloy/ Die casting |
|---|---|
| Housing plating | Nickel plated |
