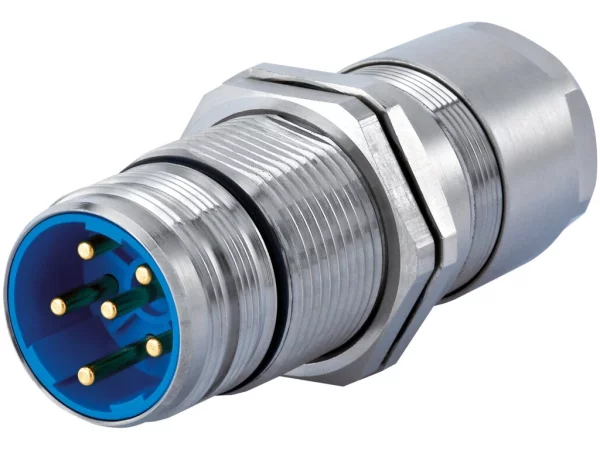

Twilock-S, Panel Connector, Male Thread, with Strain Relief
7.653.600.00S
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Power |
|---|---|
| Gender of required insert | Male/Female |
| Connector diameter | 25 mm |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | >1000 |
| Cable diameter | 11-17 mm |
| Thread | M25 x 1,5 |
| Remark 1 | Including jam nut M25 x 1,5, Compatible with Speedtec |
Material
| Housing material | Copper-Zinc alloy/ Die casting |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| 7.653.500.00S | 7-12 mm | 7-12 mm |
