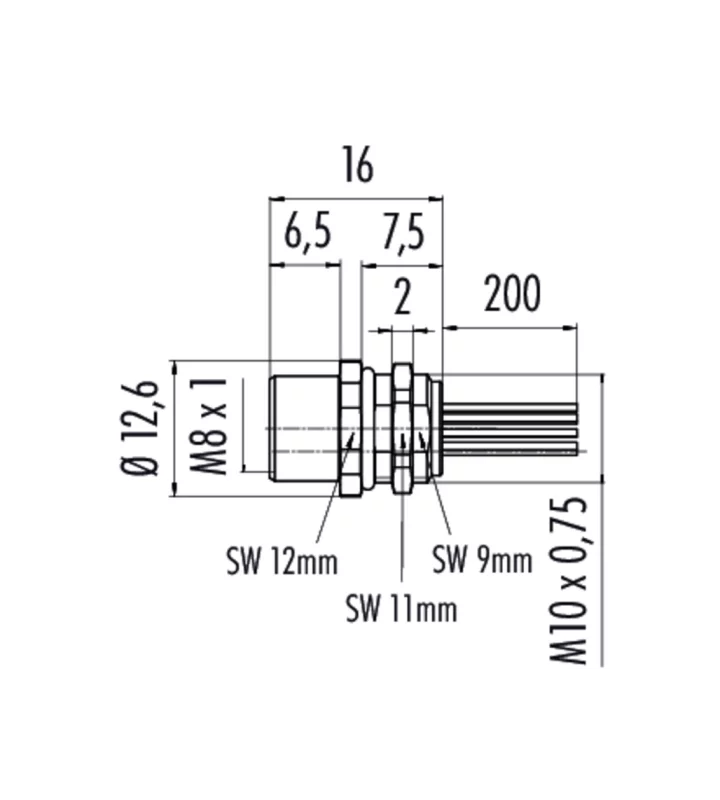

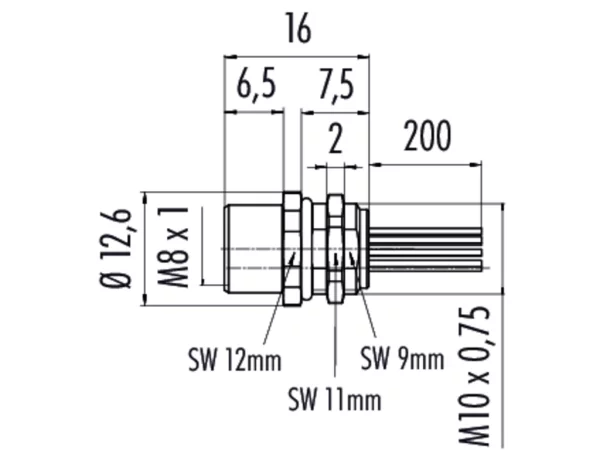

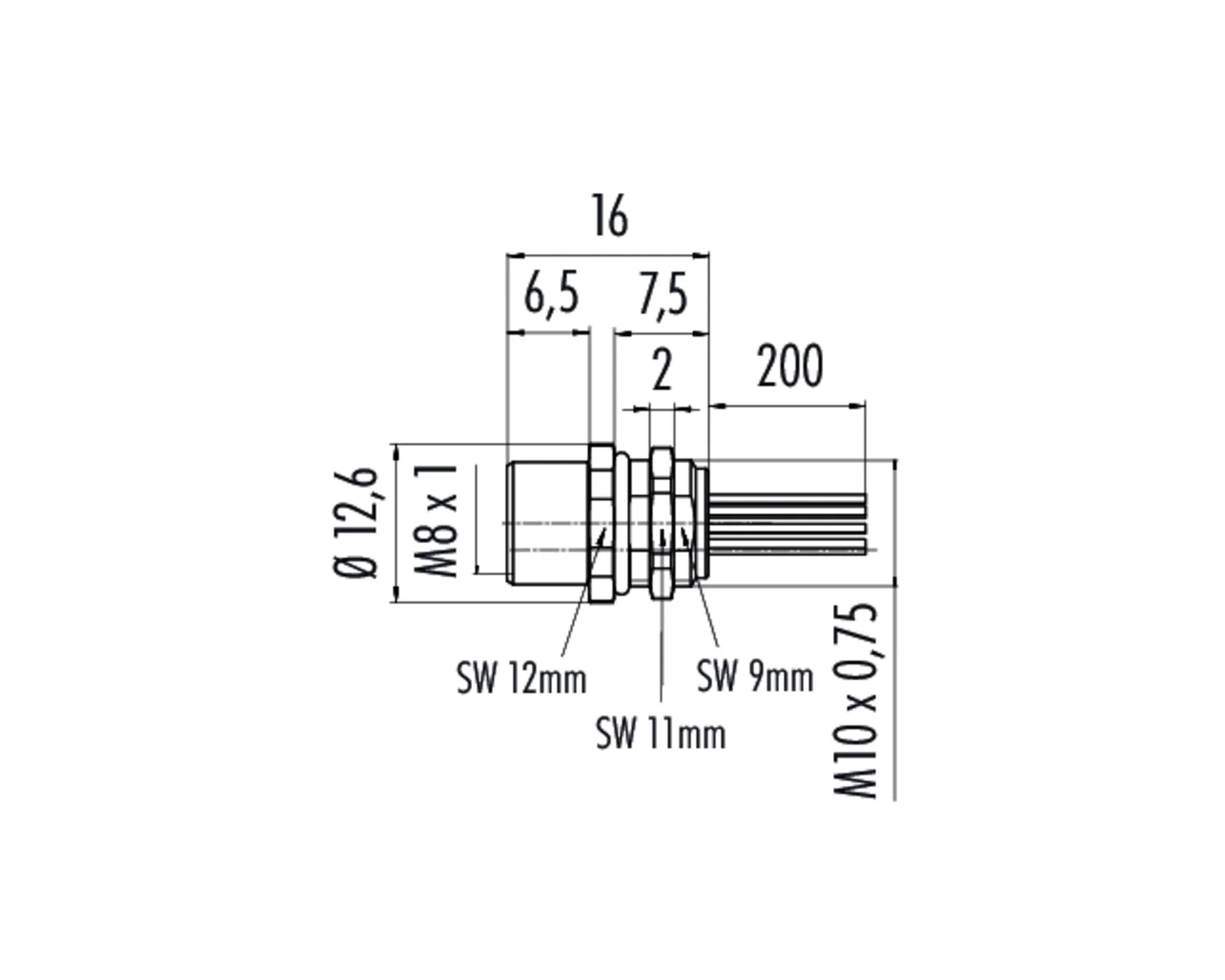

Female panel mount connector
With single wires
76 6218 1118 00012 0200
Specificaties
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 768-718 |
| Gender | Female |
| Number of contacts | 12 |
| Contact terminal | Single wires |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Mating cycles | >100 |
| Connector Diameter | 12.6 mm |
| Wire gauge | 28 AWG |
| Wire-section | 0.09 mm² |
Electrical parameters
| Nominal current | 1 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | I |
|---|---|
| Material of housing | Zinc die-cast nickel plated |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
