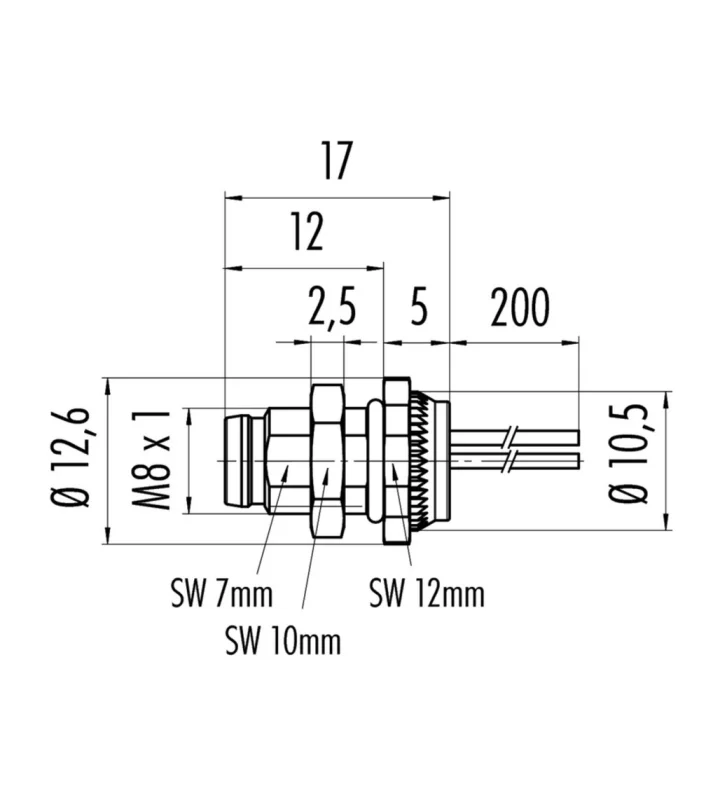

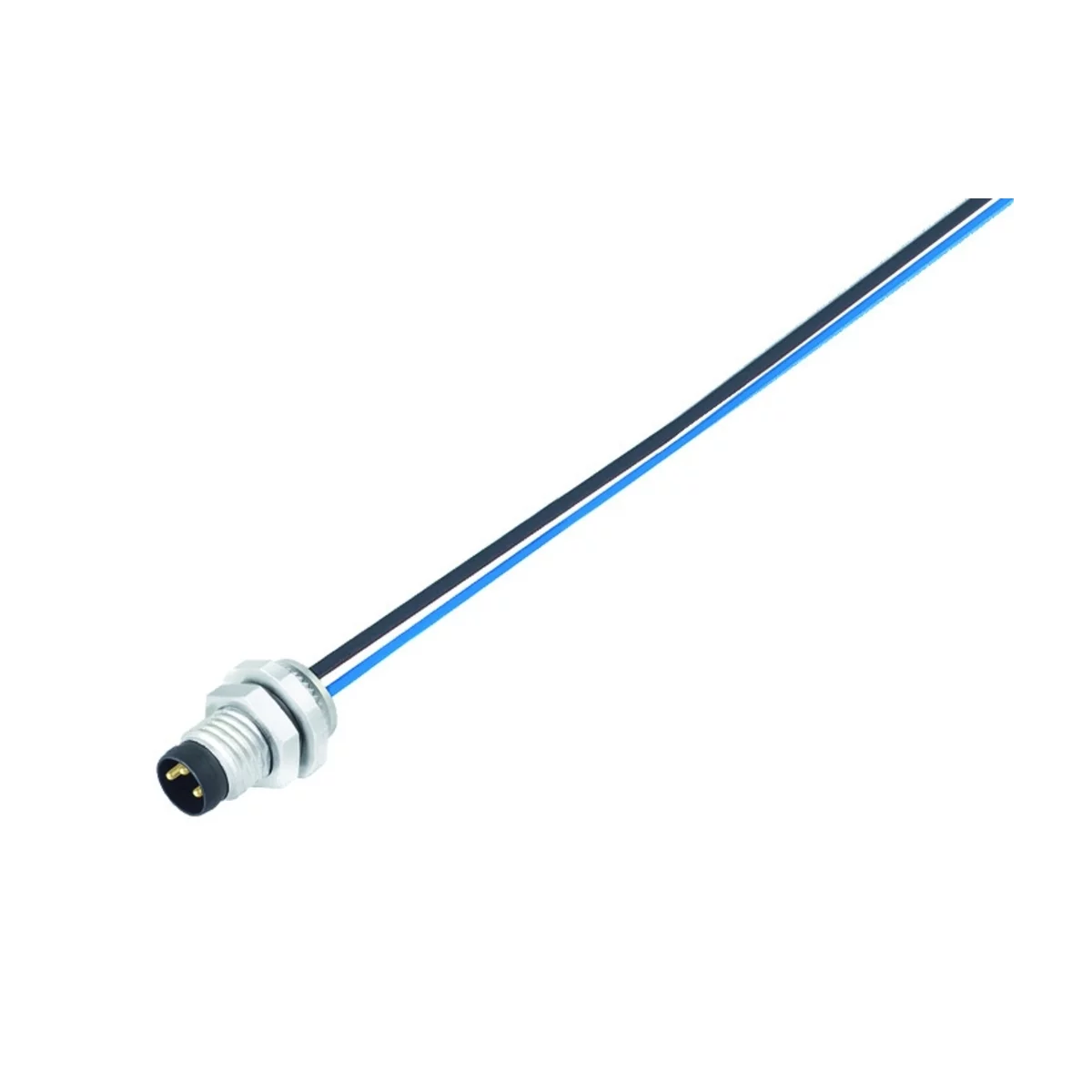

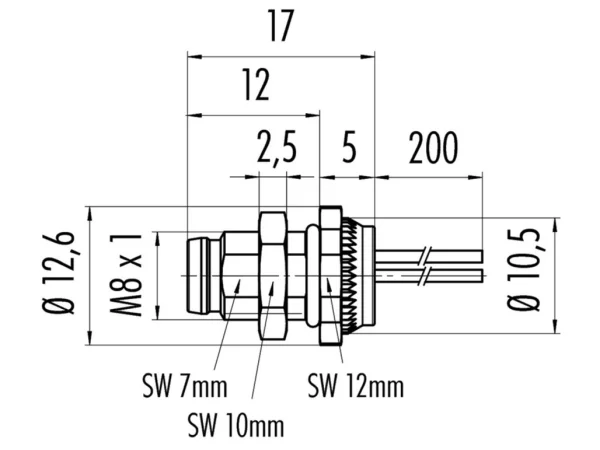

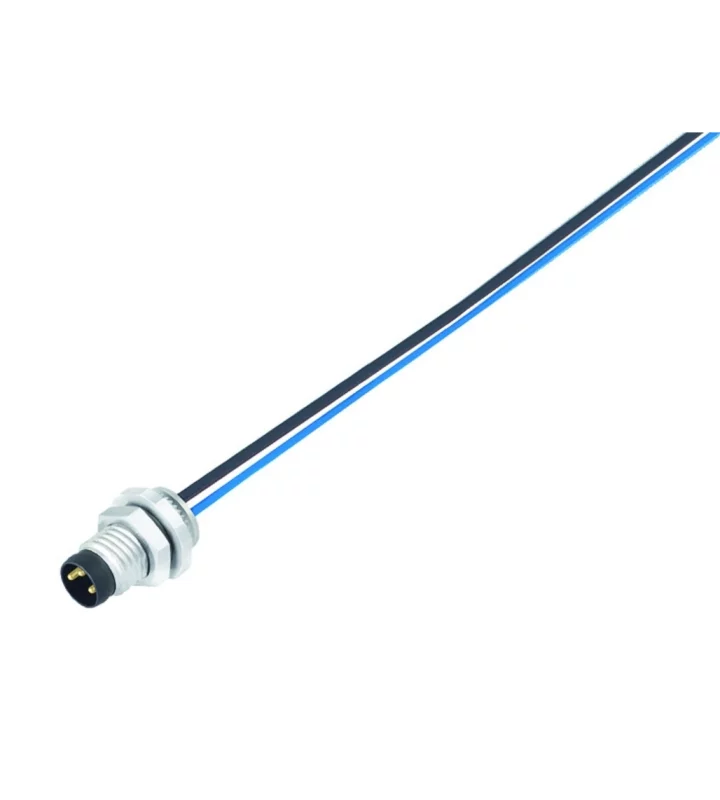

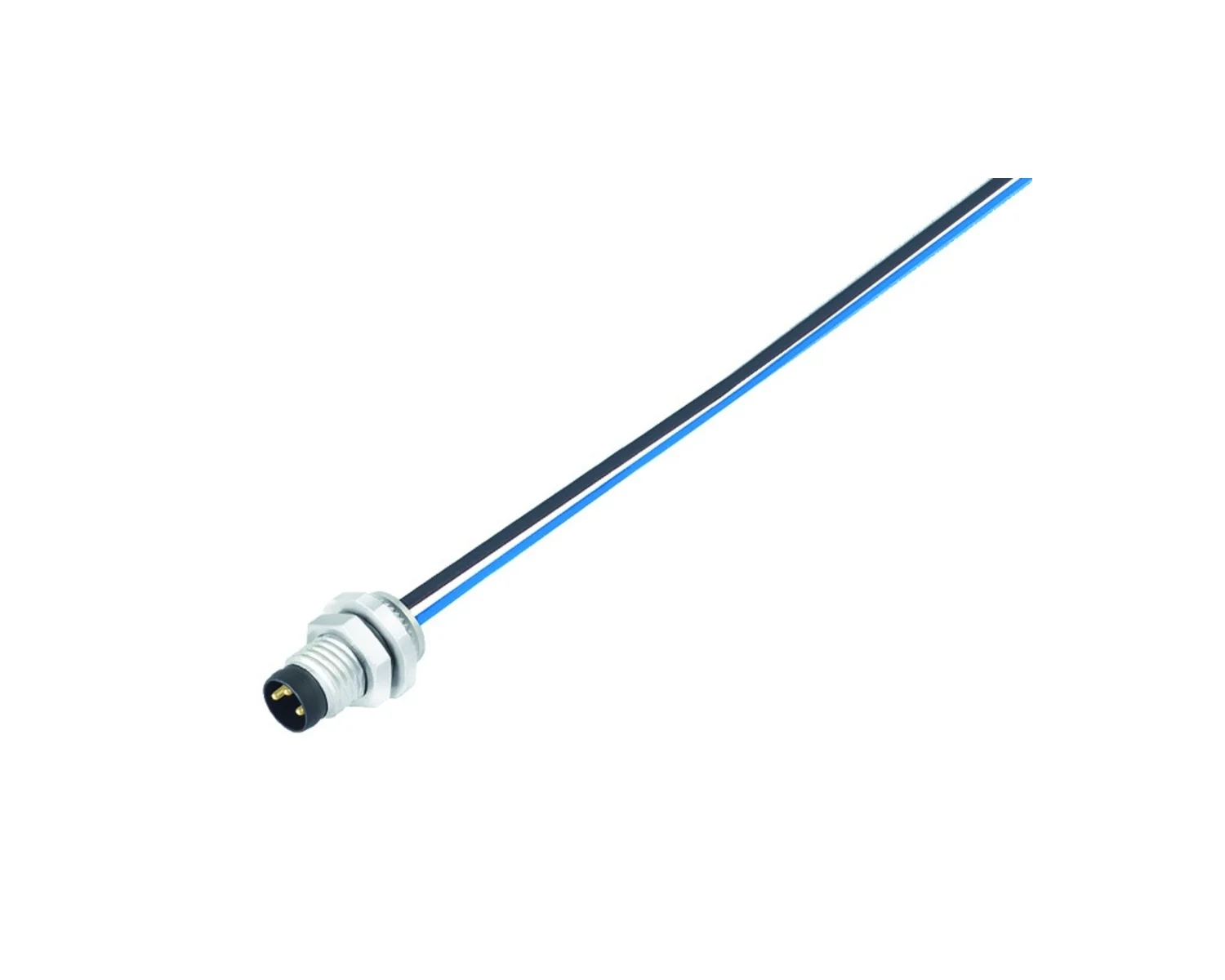

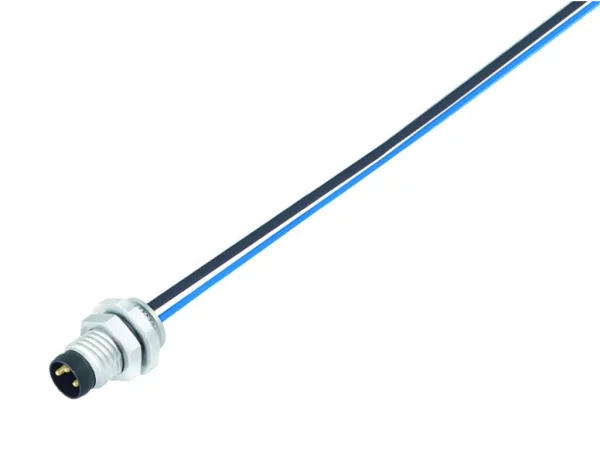

Male panel mount connector
Front fastened, with single wires
76 6319 1111 00006 0200
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 768-718 |
| Gender | Male |
| Number of contacts | 6 |
| Contact terminal | Single wires 0,14 mm |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw, snap-in |
| Mating cycles | >100 |
| Connector Diameter | 12.6 mm |
| Wire-section | 0.14 mm² |
Electrical parameters
| Nominal current | 1.5 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | Zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Contact terminal | Wire-section |
|---|---|---|---|---|
| 76 6319 1111 00003 0200 | 3 | 60 V | Single wires 0,25 mm | 0.25 mm² |
| 76 6319 1111 00004 0200 | 4 | 30 V | Single wires 0,25 mm | 0.25 mm² |
| 76 6319 1111 00005 0200 | 5 | 30 V | Single wires 0,25 mm | 0.25 mm² |
| 76 6319 1111 00008 0200 | 8 | 30 V | Single wires 0,14 mm | 0.14 mm² |
