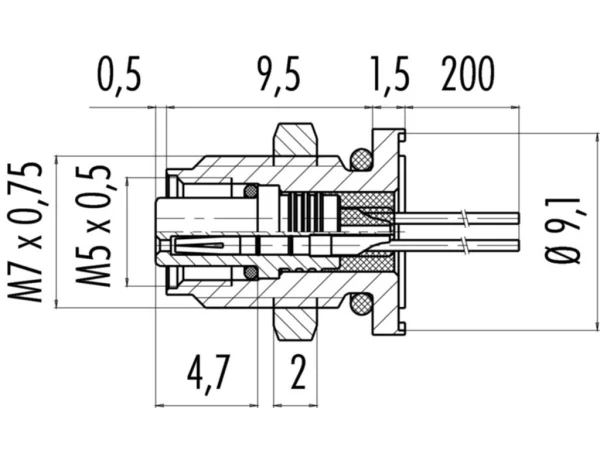

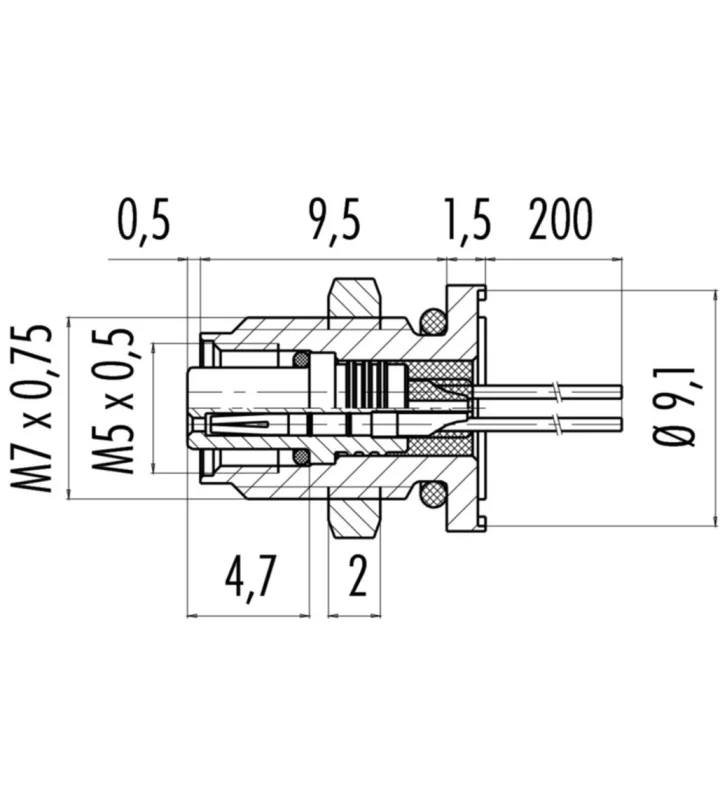

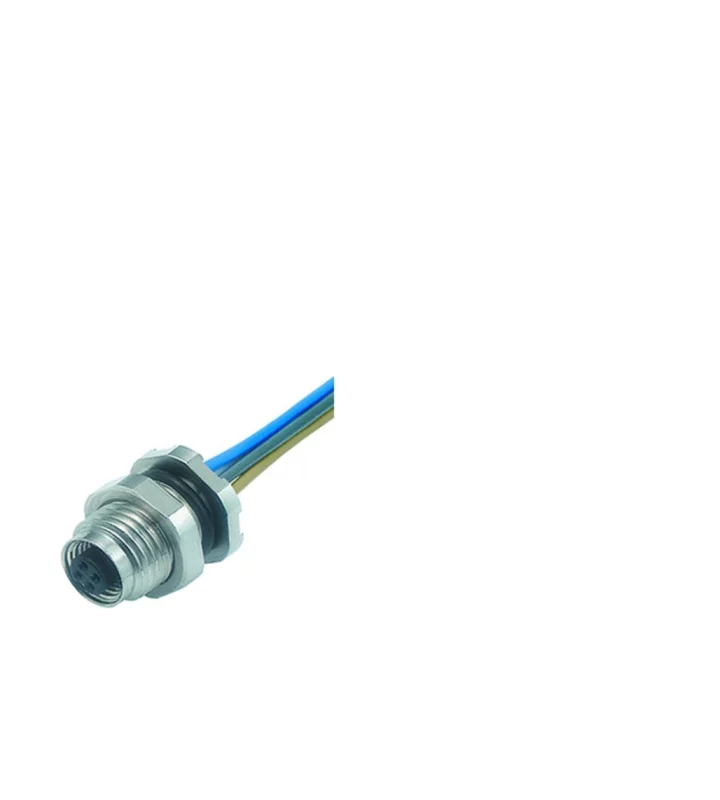

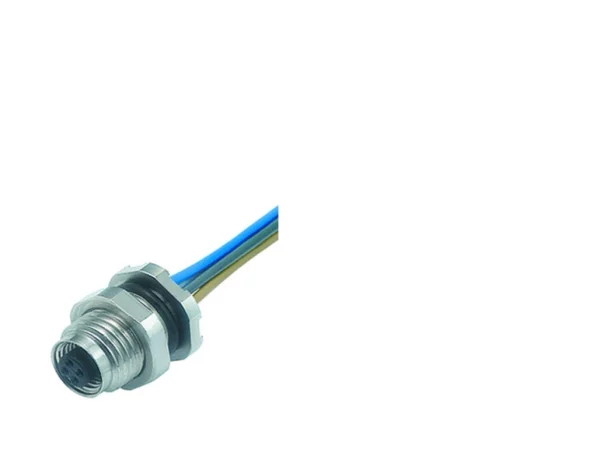

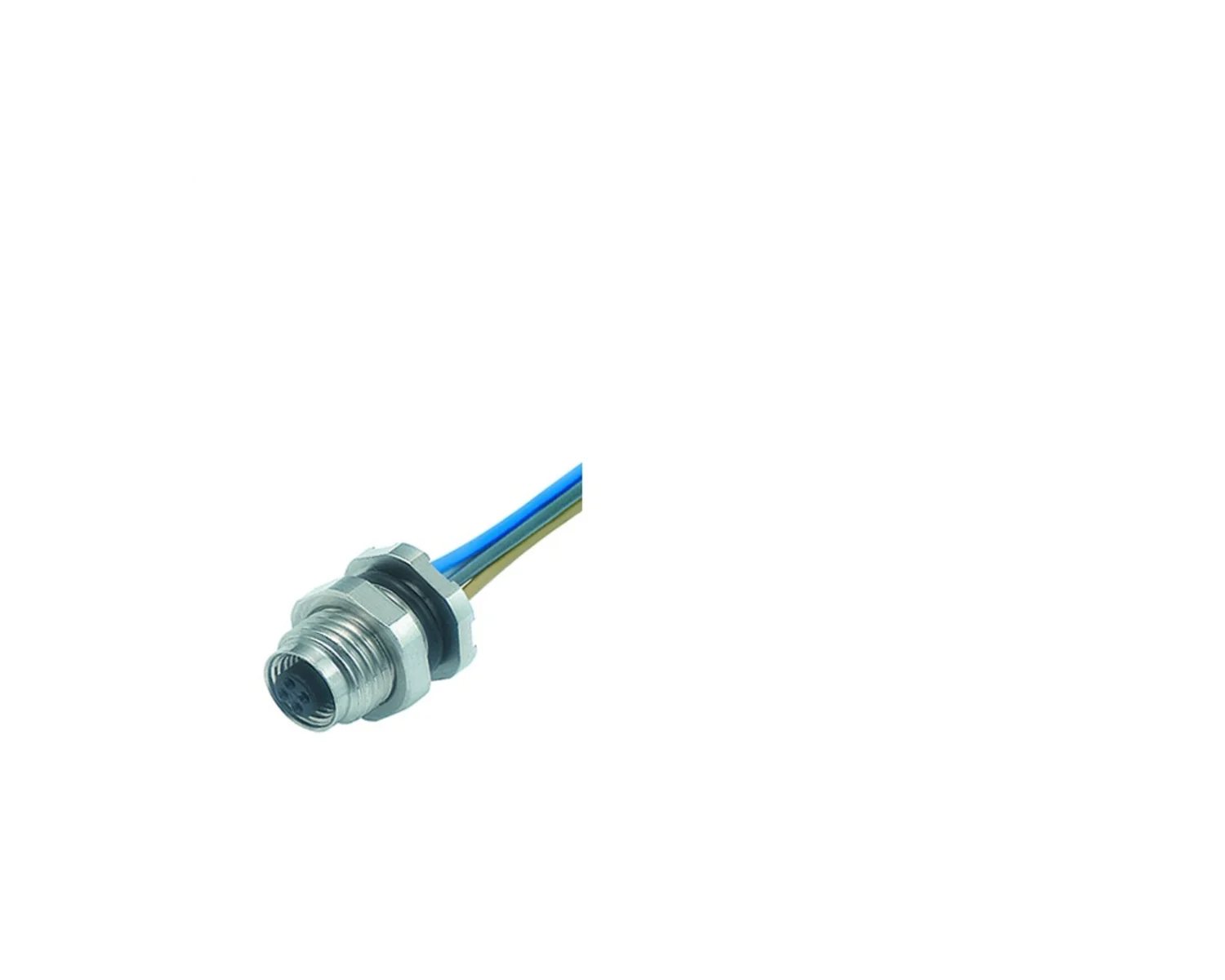

Female panel mount connector
With single wires front fastened
76 8106 1117 00004 0200
09 3112 86 04
Specificaties
General Characteristics
| Screw size | M5 |
|---|---|
| Series | Sensor |
| Subseries | 707 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Assembled with single wires |
| Upper temperature | +80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M5) |
| Mating cycles | >100 |
| Cable diameter | 3,5 mm |
| Wire-section | 0.14 mm² |
Electrical parameters
| Nominal current | 1 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | I |
| Material of insert | PA |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
