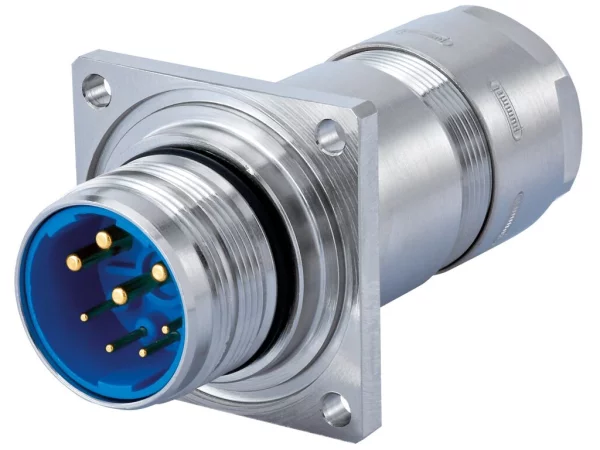

Panel Connector, Male Thread, with Strain Relief
Front or rear mounting
7.683.500.000
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M23 Power |
|---|---|
| Gender of required insert | Male/Female |
| Connector diameter | 26 mm |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >1000 |
| Holes | 4 holes Ø 3,2 mm |
| Cable diameter | 7-12 mm |
Material
| Housing material | Copper-Zinc alloy/ Die casting |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| 7.683.600.000 | 11-17 mm | 11-17 mm |
