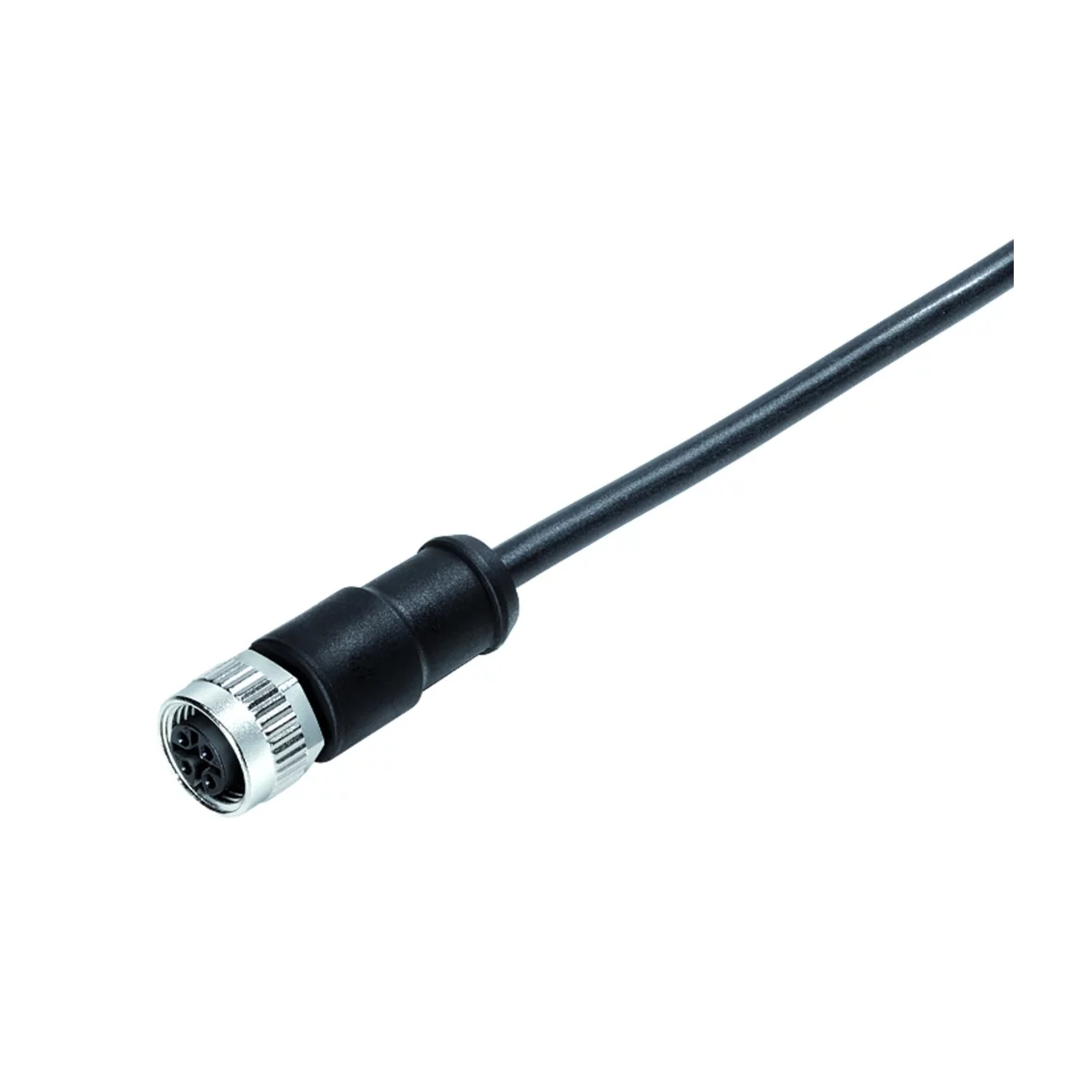

Female cable connector
Moulded, PUR
UL-approval
77 0606 0000 50704 0500
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 763 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Moulded |
| Color | Black |
| Upper temperature | +90 °C |
| Lower temperature | -25 °C |
| Protection degree | IP69K |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 14.5 mm |
| Cable Length | 5 m |
| Cable sheath | 5.4 mm |
| Wire gauge | 16 AWG |
| Wire-section | 1.5 mm² |
| Radius cable fixed | min. 5xD |
| Radius cable movable | min. 10xD |
| Single lead structure | 42x0,1 |
| Fixing thread | M12x1,5 |
Electrical parameters
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Conductor resistance | 60 |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Insulation single lead | PP |
Varianten
| Art. number | Cable Length |
|---|---|
| 77 0606 0000 50704 0200 | 2 m |
