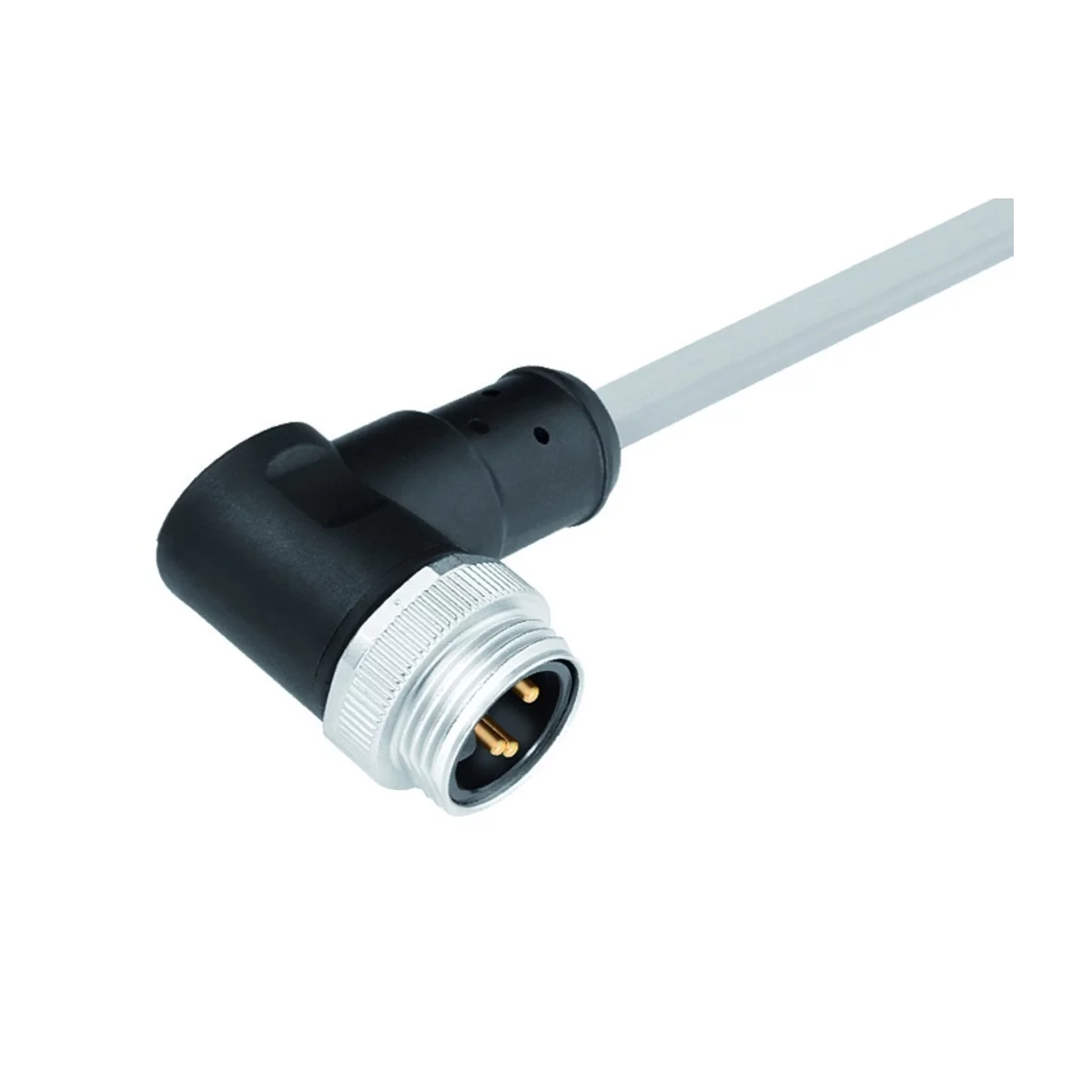

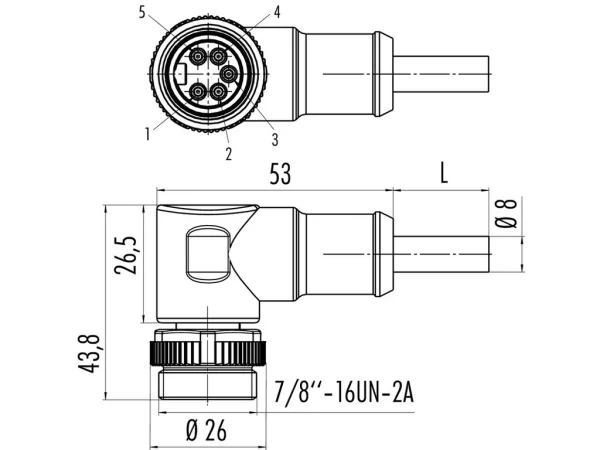

7/8" male right-angled connector, 3 poles, unshielded, overmoulded to the cable, IP68, 3 x 1,50 mm², 10 m
77 1427 0000 50003 1000
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 870 |
| Gender | Male |
| Number of contacts | 3 |
| Contact terminal | Crimp |
| Upper temperature | +80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw (7/8"-16 UN) |
| Mating cycles | >100 |

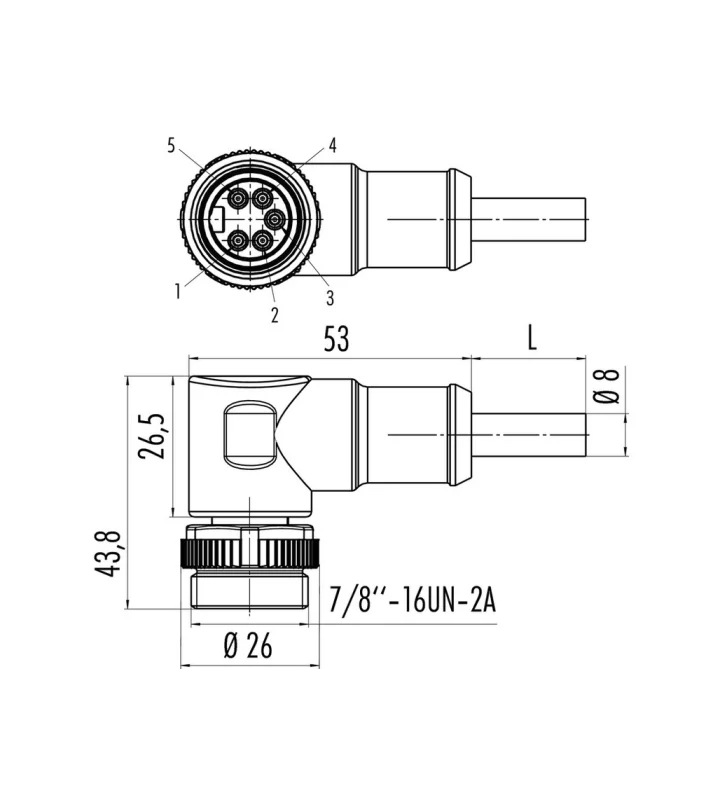

| Connector Diameter | 26 mm |
| Cable Length | 10 m |
| Cable diameter | 7,4 mm |
| Cable | 3 x 1,5 PUR |
| Wire-section | 1.5 mm² |
Electrical parameters
| Nominal current | 13 A |
|---|---|
| Nominal voltage | 300 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | TPM |
