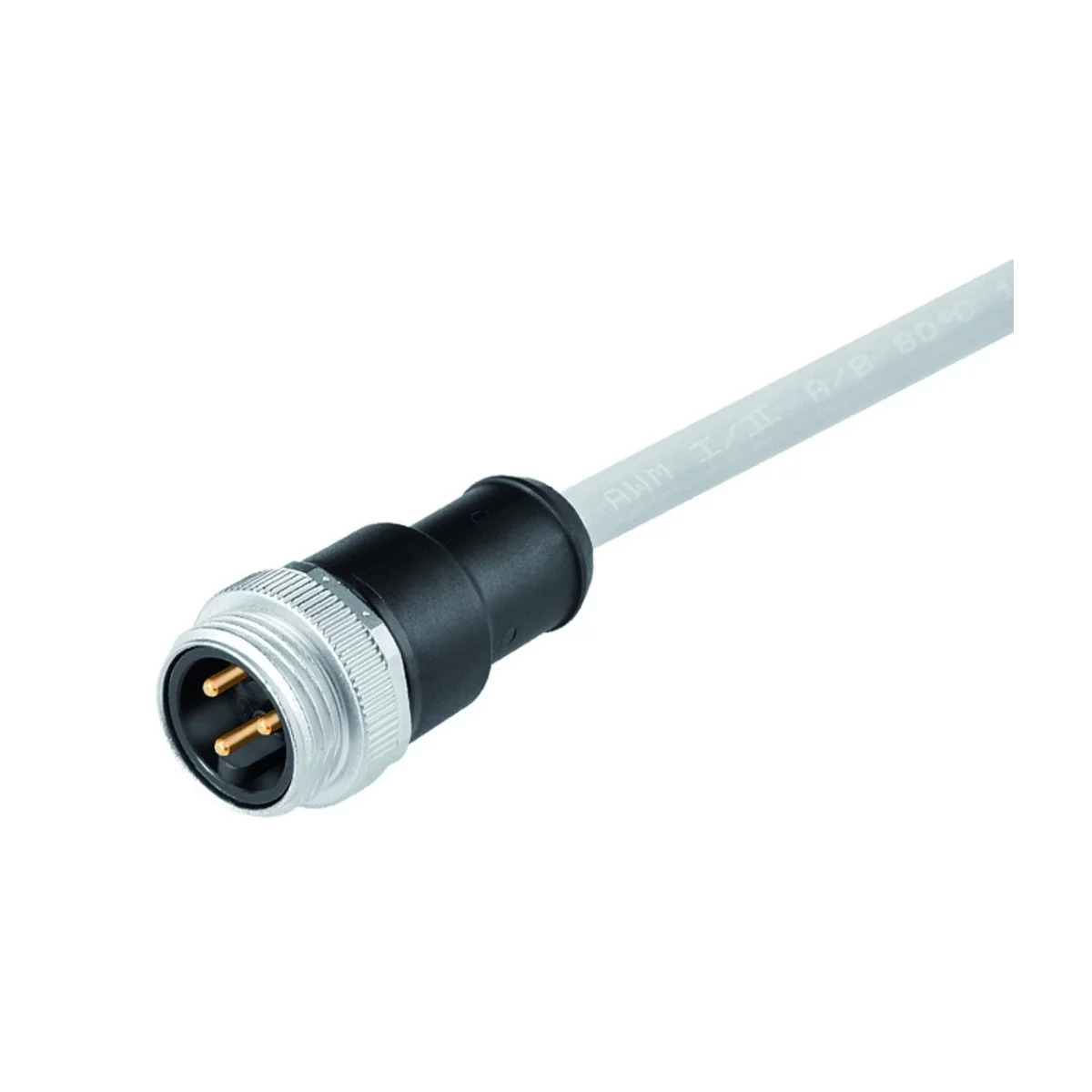

Male cable connector
77 1429 0000 50005 0200
79 2461 20 05
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | 7/8 |
|---|---|
| Series | Sensor |
| Subseries | 870 |
| Gender | Male |
| Number of contacts | 6 |
| Contact terminal | Crimp |
| Upper temperature | +80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw (7/8"-16 UN) |
| Mating cycles | >100 |
| Connector Diameter | 26 mm |
| Cable Length | 2 m |
| Cable diameter | 8,7 mm |
| Cable | 5 x 1,5 PUR |
| Wire-section | 1.5 mm² |
Electrical parameters
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 300 V |
| Impuls voltage | 4000 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | TPM |
