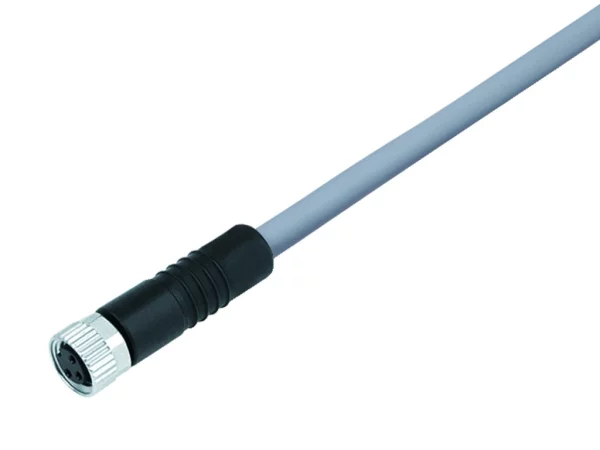

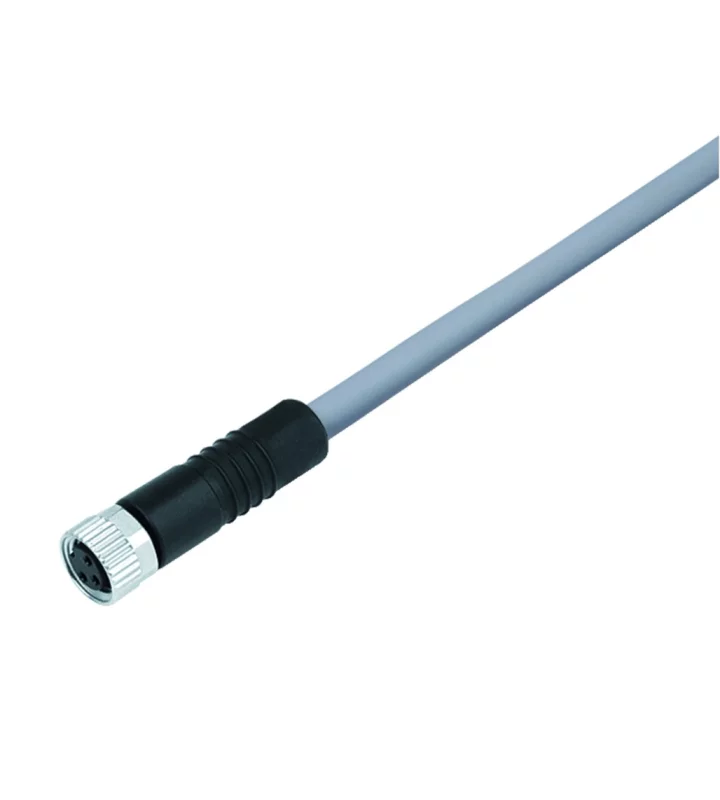

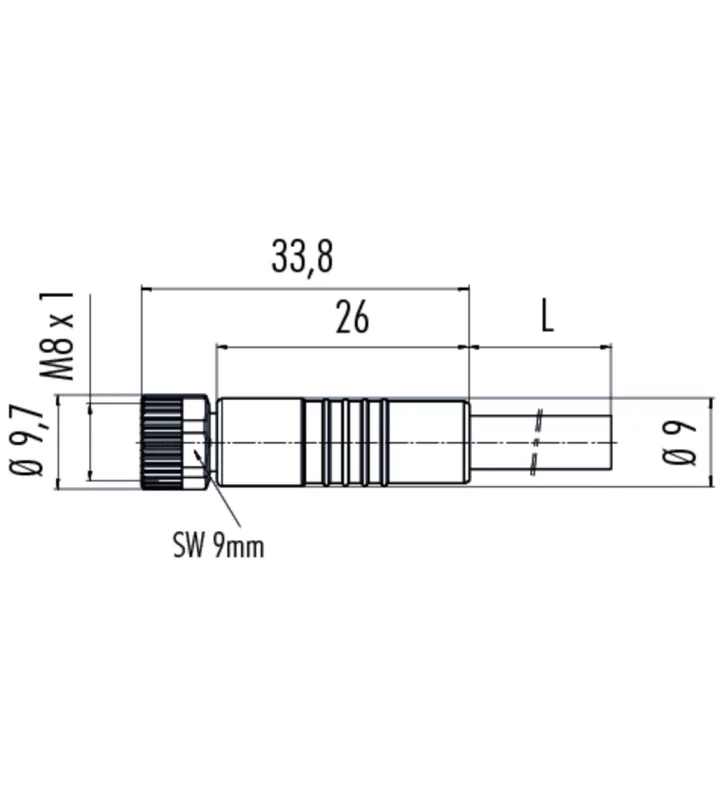

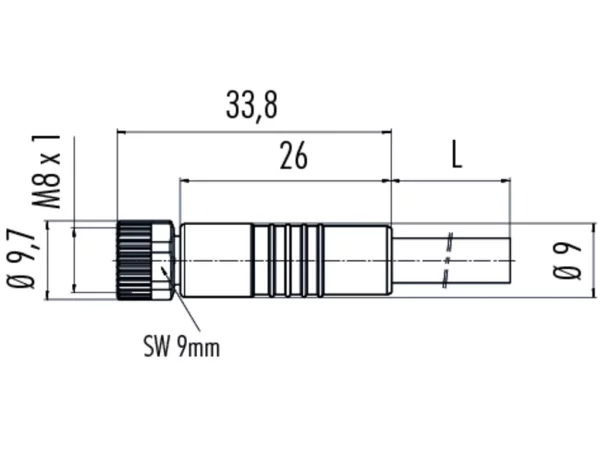

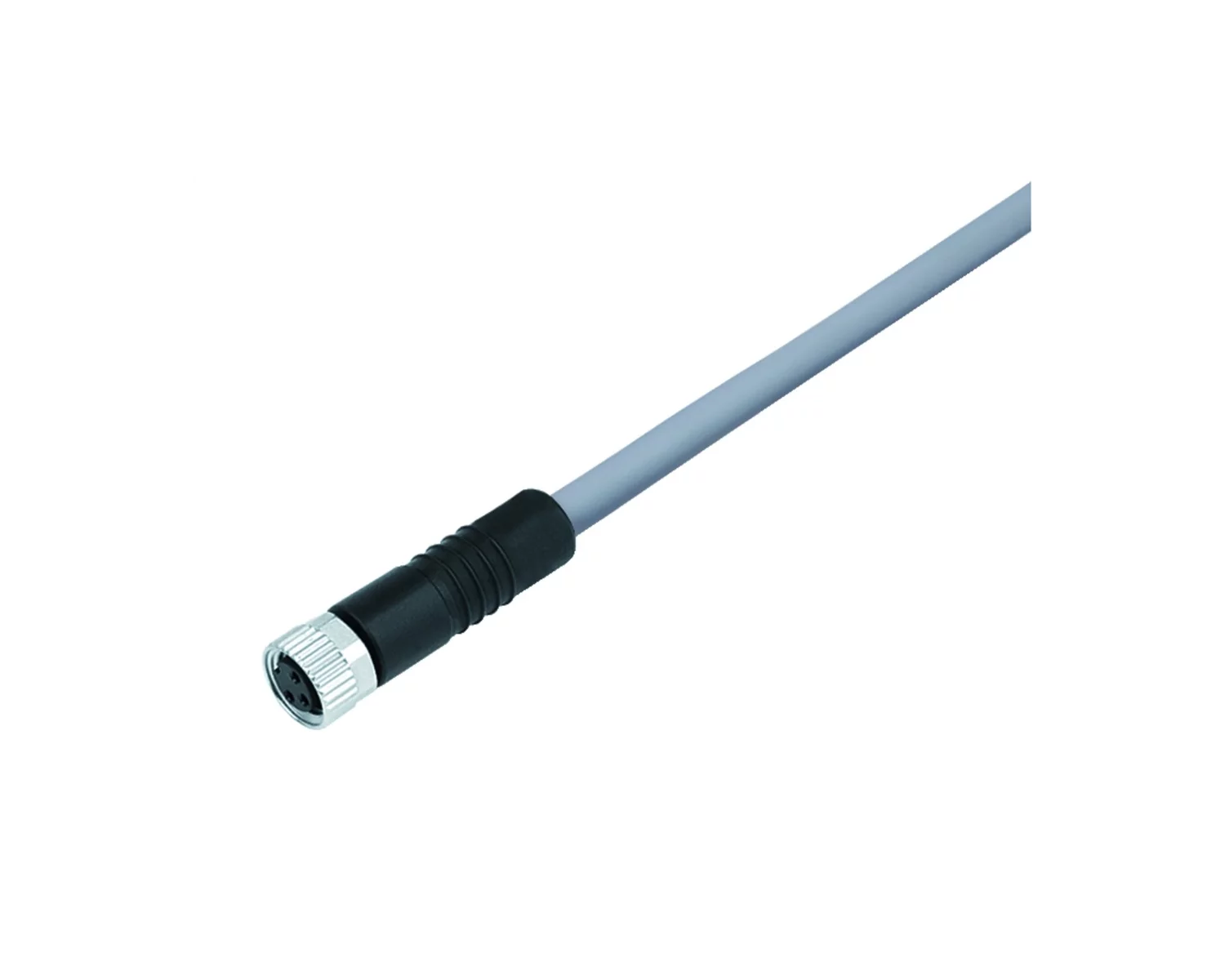

Female cable connector
Moulded, screw version, M8x1
77 3406 0000 20005 0500
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 718 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Mating cycles | >100 |
| Connector Diameter | 9.7 mm |
| Cable Length | 5 m |
| Cable diameter | 4,8 mm |
| Wire gauge | 22 AWG |
| Wire-section | 0.34 mm² |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PVC |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Cable Length | Cable diameter | Wire gauge | Wire-section |
|---|---|---|---|---|---|---|---|
| 77 3406 0000 20003 0200 | 3 | 60 V | 1500 V | 2 m | 4,5 mm | 22 AWG | 0.34 mm² |
| 77 3406 0000 20003 0500 | 3 | 60 V | 1500 V | 5 m | 4,5 mm | 22 AWG | 0.34 mm² |
| 77 3406 0000 20004 0200 | 4 | 60 V | 1500 V | 2 m | 4,8 mm | 22 AWG | 0.34 mm² |
| 77 3406 0000 20004 0500 | 4 | 60 V | 1500 V | 5 m | 4,8 mm | 22 AWG | 0.34 mm² |
| 77 3406 0000 20005 0200 | 5 | 30 V | 800 V | 2 m | 4,8 mm | 22 AWG | 0.34 mm² |
| 77 3406 0000 20008 0200 | 8 | 30 V | 800 V | 2 m | 6 mm | 24 AWG | 0.25 mm² |
| 77 3406 0000 20008 0500 | 8 | 30 V | 800 V | 5 m | 6 mm | 24 AWG | 0.25 mm² |
