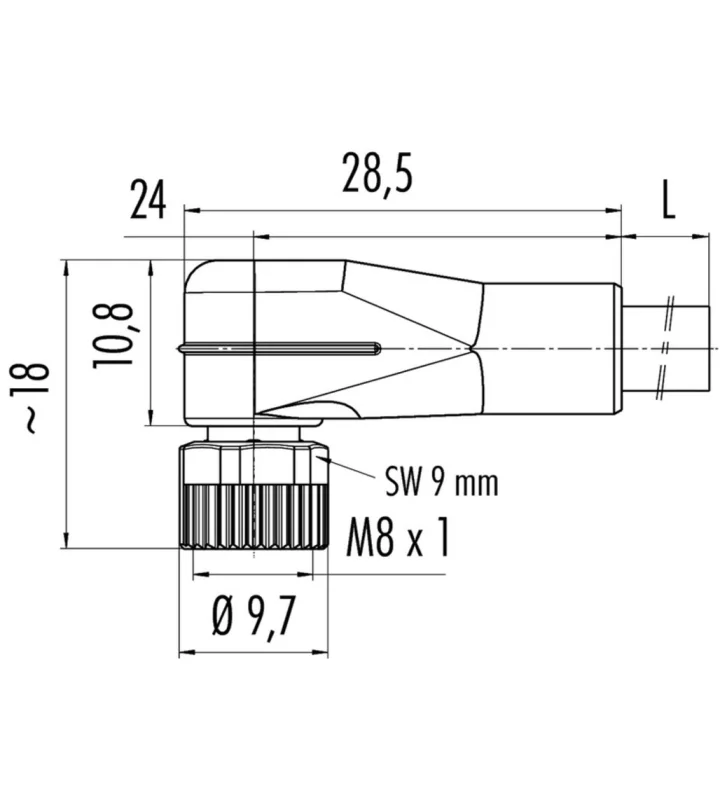

Female angled connector
Moulded, screw version, M8x1
77 3408 0000 50003 0200
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 718 |
| Gender | Female |
| Number of contacts | 3 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Mating cycles | >100 |
| Connector Diameter | 9.7 mm |
| Cable Length | 2 m |
| Cable diameter | 4,5 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Varianten
| Art. number | Jacket material | Number of contacts | Nominal voltage | Insulation wire | Cable diameter | Screw size |
|---|---|---|---|---|---|---|
| 77 3408 0000 20003 0200 | PVC | 3 | 60 V | PVC | 4,5 mm | M8 |
| 77 3408 0000 20004 0200 | PVC | 4 | 30 V | PVC | 4,5 mm | M8 |
| 77 3408 0000 50004 0200 | PUR | 4 | 30 V | PVC | 4,5 mm | M8 |
| 77 3408 0000 20008 0200 | PVC | 8 | 30 V | PVC | 6 mm | M8 |
| 77 3408 0000 50008 0200 | PUR | 8 | 30 V | PP | 6 mm | M8 |
| 77 3408 0000 50005 0200 | PUR | 5 | 30 V | PP | 5 mm |
