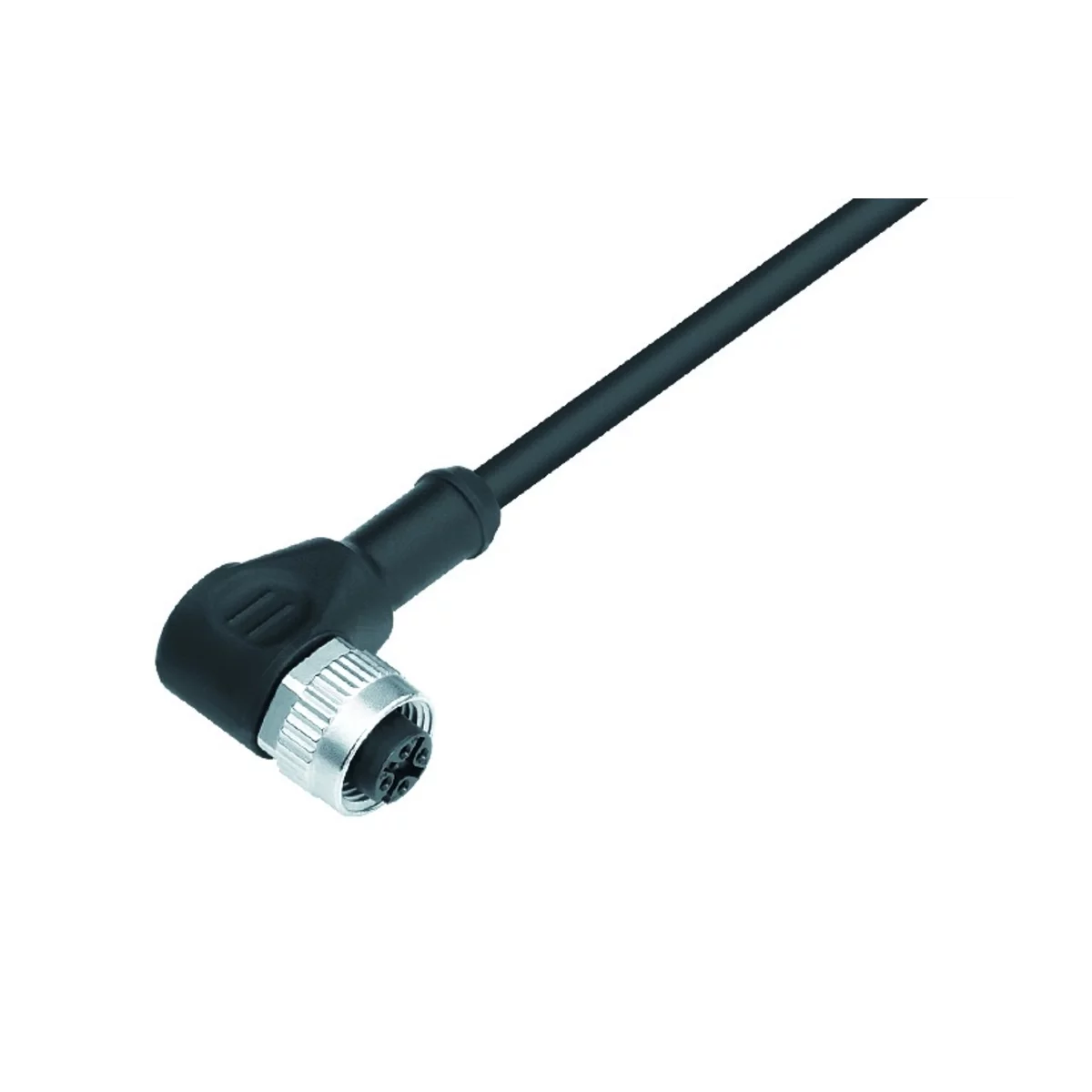

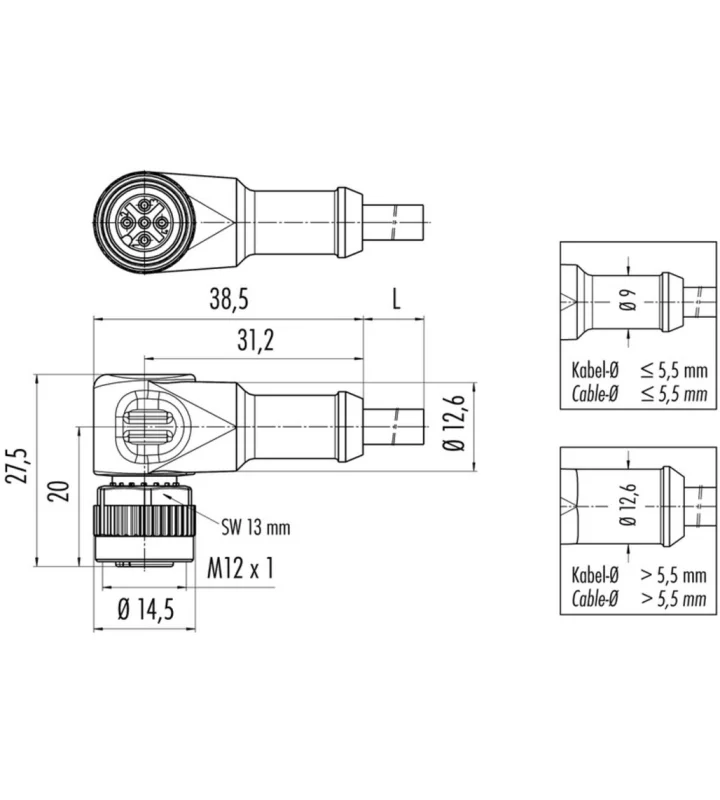

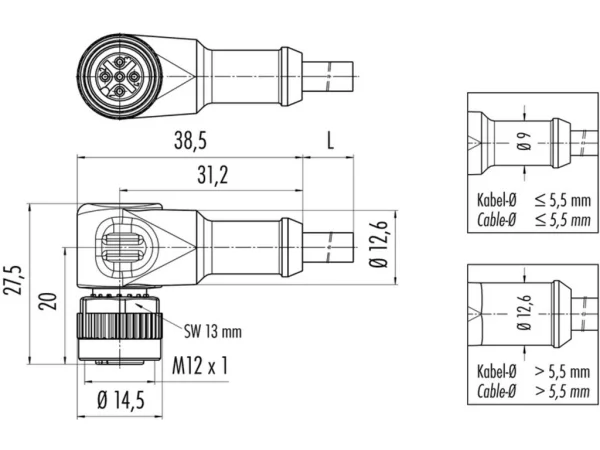

Female angled connector
Moulded
77 3434 0000 20003 0500
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 763 |
| Gender | Female |
| Number of contacts | 3 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 14.5 mm |
| Cable Length | 5 m |
| Cable diameter | 4,5 mm |
| Wire-section | 0.34 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PVC |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Varianten
| Art. number | Jacket material | Number of contacts | Screw size | Nominal voltage | Impuls voltage | Nominal Voltage | Cable diameter | Wire-section | Remark* |
|---|---|---|---|---|---|---|---|---|---|
| 77 3434 0000 50003 0500 | PUR | 3 | M12-A | 250 V | 2500 V | >200 - ≤400 V | 4,5 mm | 0.34 mm² | |
| 77 3434 0000 20004 0500 | PVC | 4 | M12-A | 250 V | 2500 V | >200 - ≤400 V | 5 mm | 0.34 mm² | |
| 77 3434 0000 20005 0500 | PVC | 5 | M12-A | 125 V | 1500 V | ≤200 V | 5 mm | 0.25 mm² | |
| 77 3434 0000 50005 0500 | PUR | 5 | M12-A | 125 V | 1500 V | ≤200 V | 5 mm | 0.25 mm² | |
| 77 3434 0000 50608 0500 | PUR | 8 | M12-A | 60 V | 800 V | ≤200 V | 0.25 mm² | * Shielded cable, shield connected through contact 8 | |
| 77 3434 0000 50004 0500 | PUR | 4 | 250 V | 2500 V | >200 - ≤400 V | 5 mm | 0.34 mm² |
