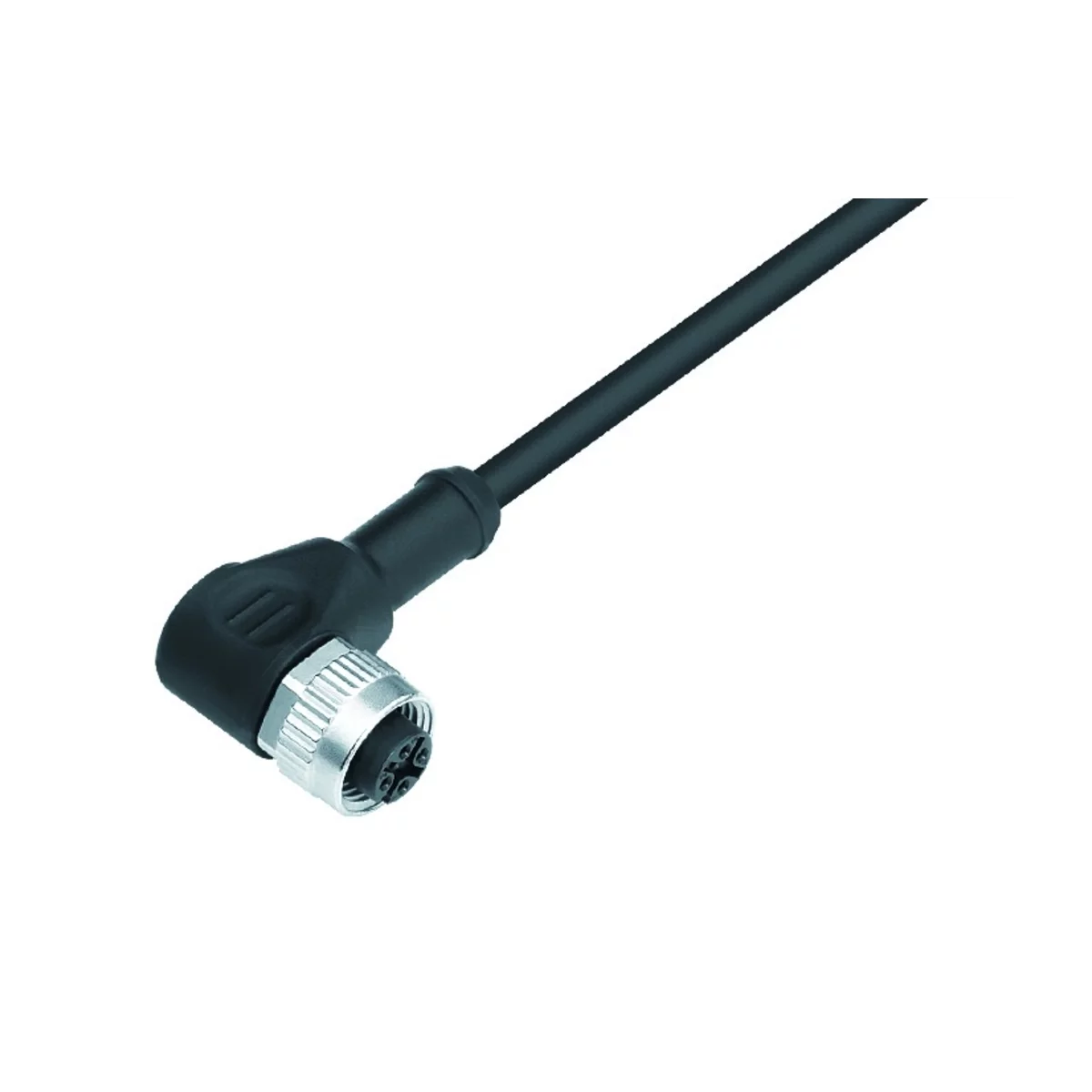

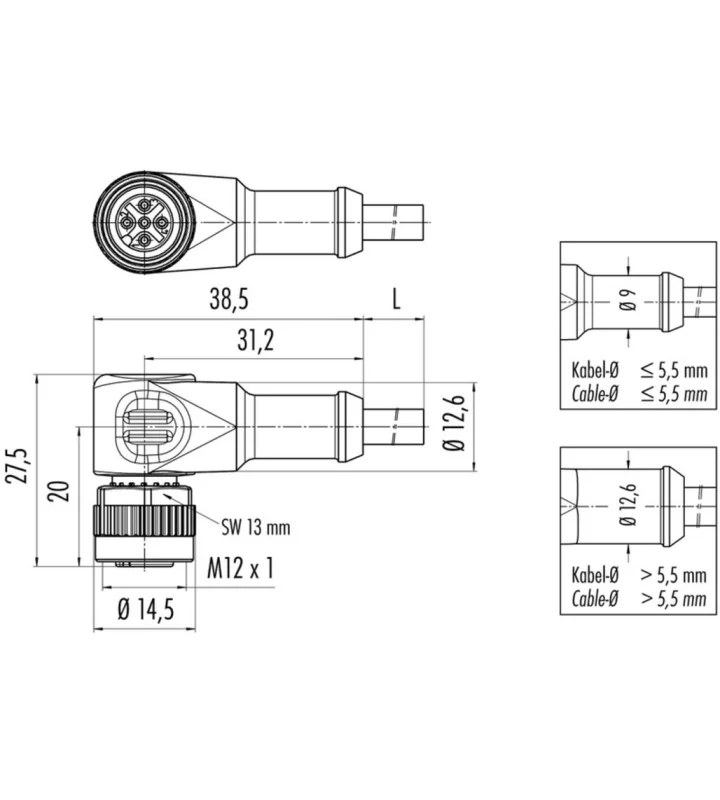

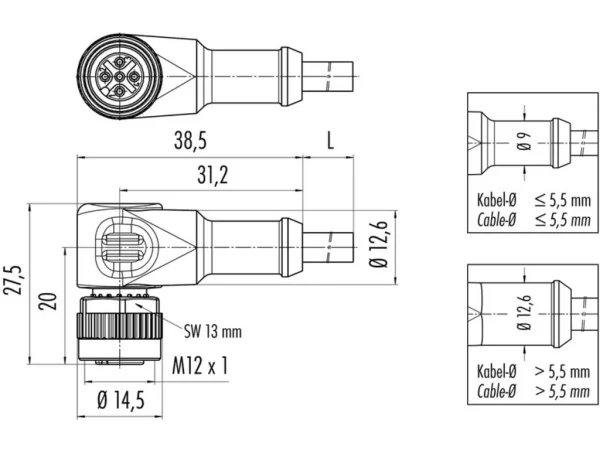

Female angled connector
Moulded
77 3434 0000 50004 0500
79 3434 37 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 763 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 14.5 mm |
| Cable Length | 5 m |
| Cable diameter | 5 mm |
| Wire-section | 0.34 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Varianten
| Art. number | Jacket material | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Cable diameter | Wire-section | Screw size | Remark* |
|---|---|---|---|---|---|---|---|---|---|
| 77 3434 0000 20003 0500 | PVC | 3 | 250 V | 2500 V | >200 - ≤400 V | 4,5 mm | 0.34 mm² | M12-A | |
| 77 3434 0000 50003 0500 | PUR | 3 | 250 V | 2500 V | >200 - ≤400 V | 4,5 mm | 0.34 mm² | M12-A | |
| 77 3434 0000 20004 0500 | PVC | 4 | 250 V | 2500 V | >200 - ≤400 V | 5 mm | 0.34 mm² | M12-A | |
| 77 3434 0000 20005 0500 | PVC | 5 | 125 V | 1500 V | ≤200 V | 5 mm | 0.25 mm² | M12-A | |
| 77 3434 0000 50005 0500 | PUR | 5 | 125 V | 1500 V | ≤200 V | 5 mm | 0.25 mm² | M12-A | |
| 77 3434 0000 50608 0500 | PUR | 8 | 60 V | 800 V | ≤200 V | 0.25 mm² | M12-A | * Shielded cable, shield connected through contact 8 |
