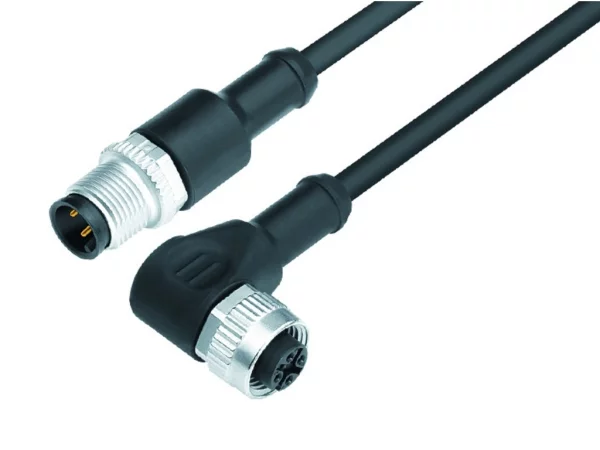

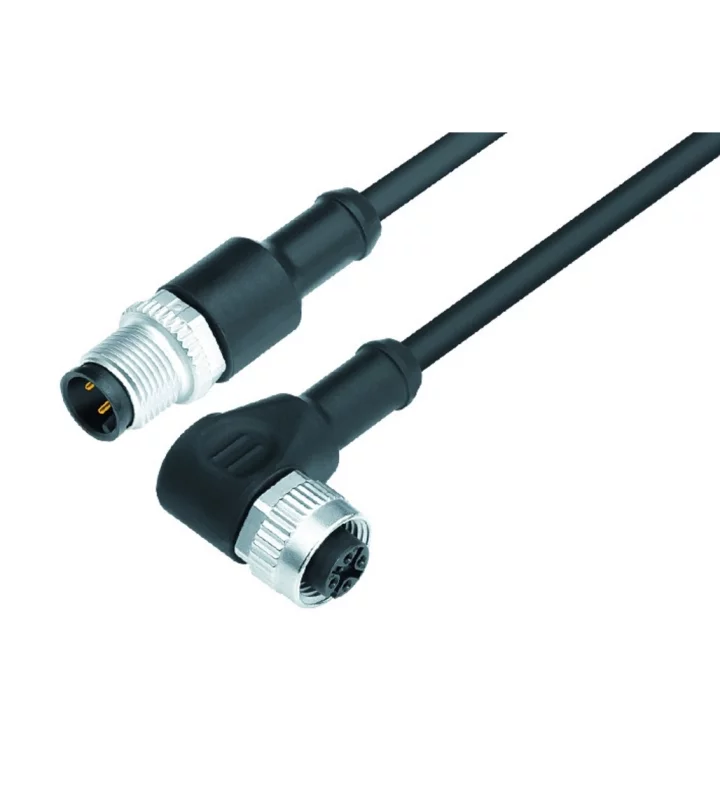

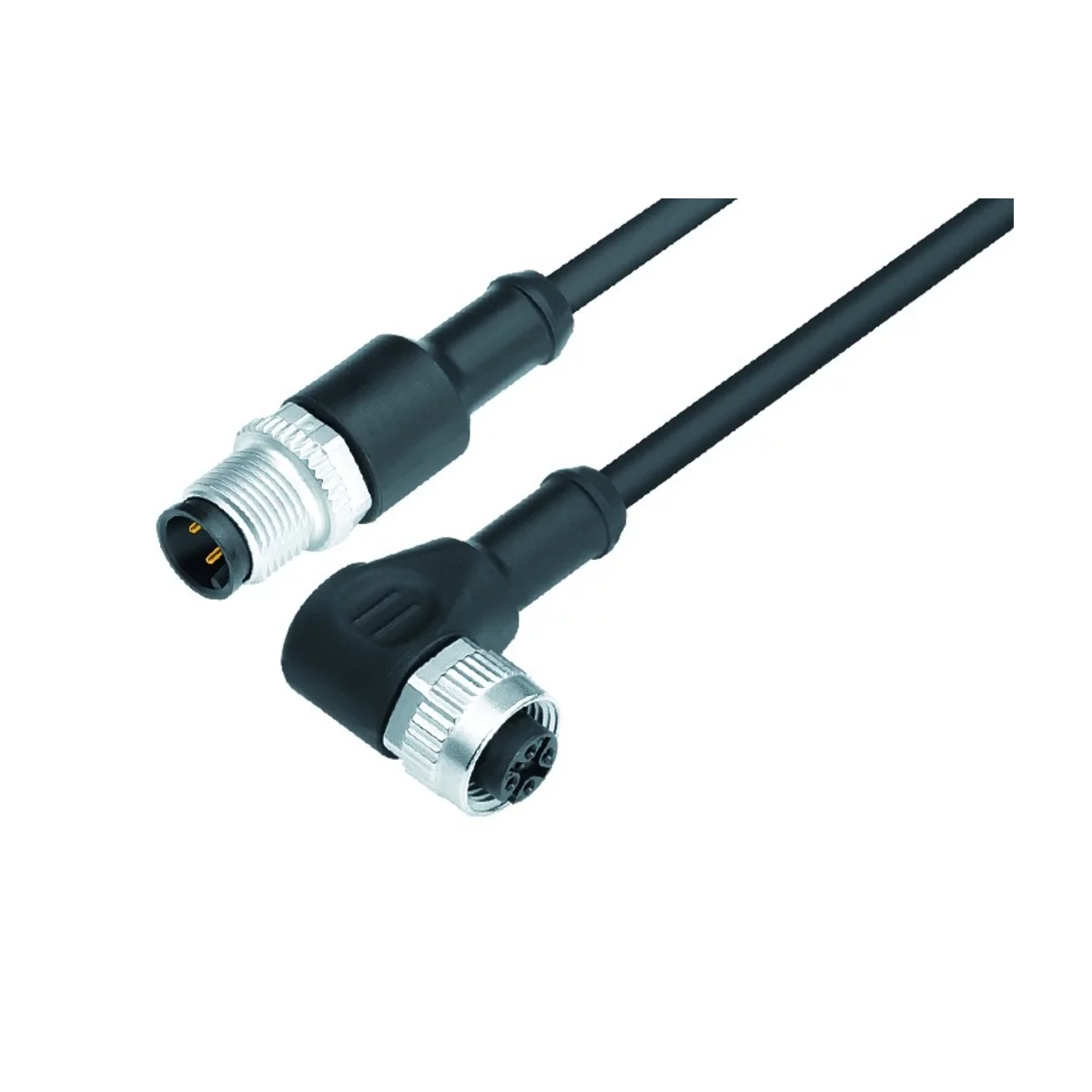

M12 connection cable with female right-angled connector, 8 poles, unshielded, overmoulded to the cable, IP69K, 8 x 0,25 mm², 2 m
77 3434 3429 50708 0200
Specificaties
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 765 |
| Gender | Male & Female |
| Number of contacts | 8 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP69K |
| Locking system | Screw |
| Mating cycles | >100 |

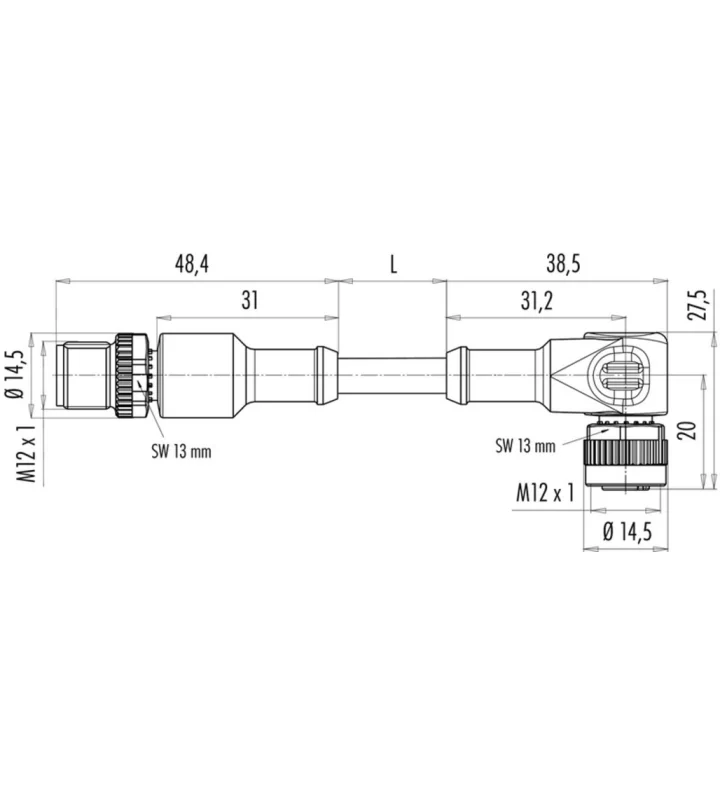

| Connector Diameter | 14.5 mm |
| Cable Length | 2 m |
| Cable diameter | 6 mm |
| Cable | 8x0,25 PUR |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | Pin CuZn (Brass), Socket (Bronze) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
