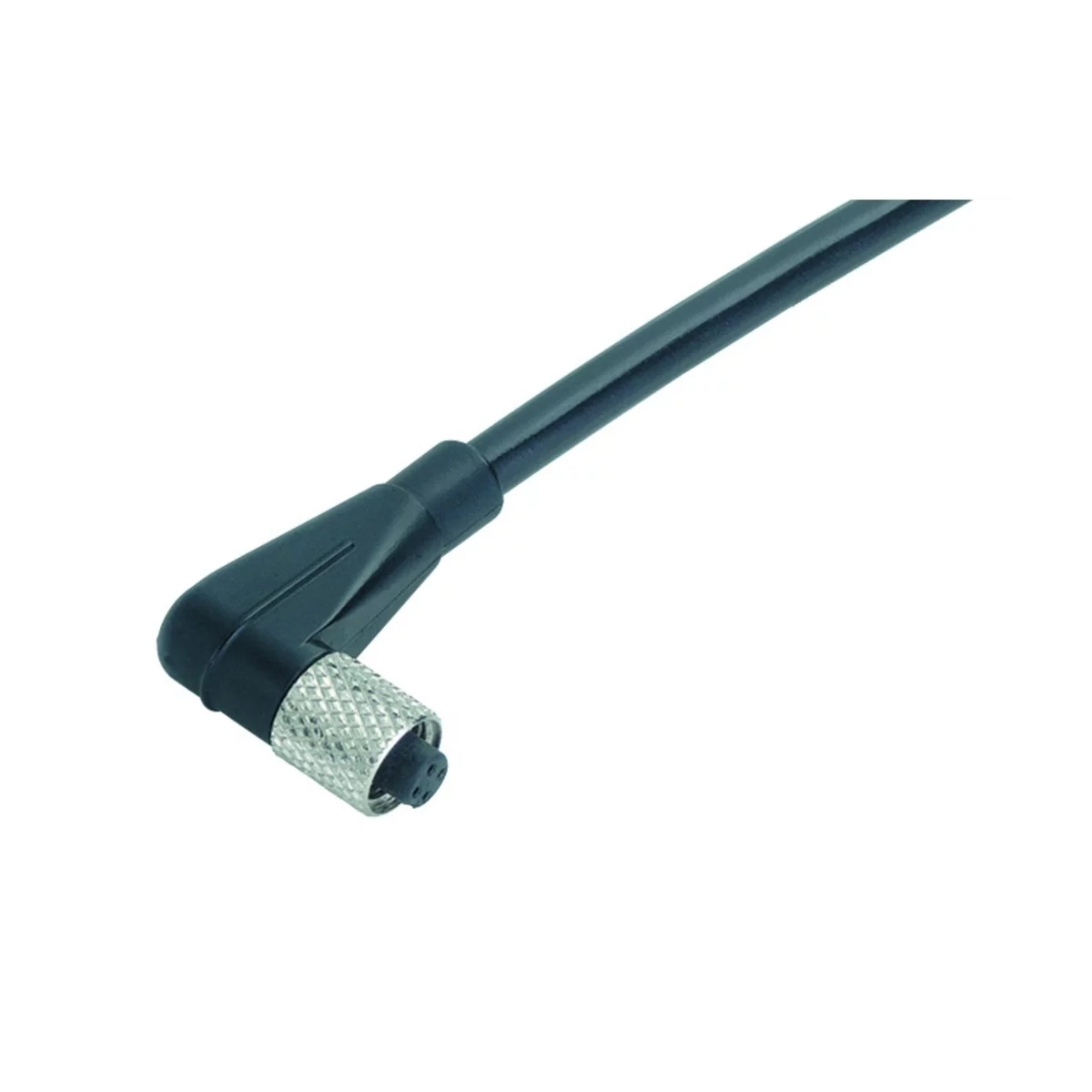

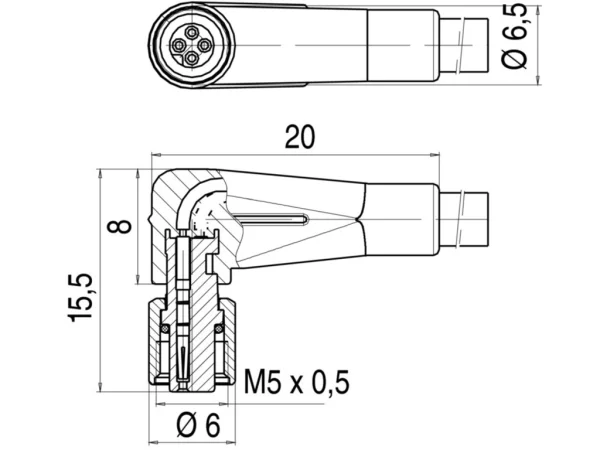

Female angled connector

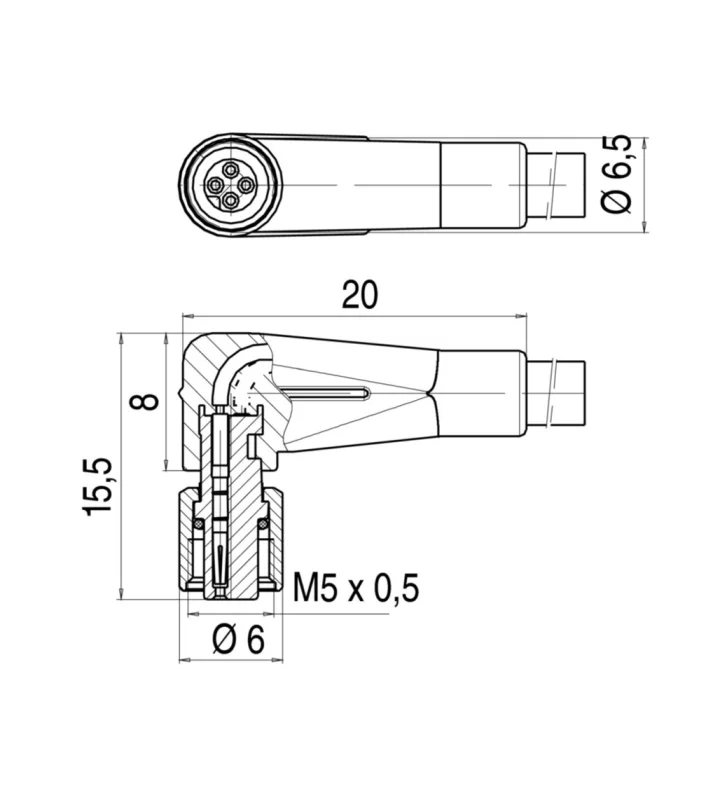

Moulded, M5 x 0,5
77 3454 0000 50004 0200
79 3110 32 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M5 |
|---|---|
| Series | Sensor |
| Subseries | 707 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M5) |
| Mating cycles | >100 |
| Connector Diameter | 6 mm |
| Cable Length | 2 m |
| Cable diameter | 4 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 1 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | I |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
